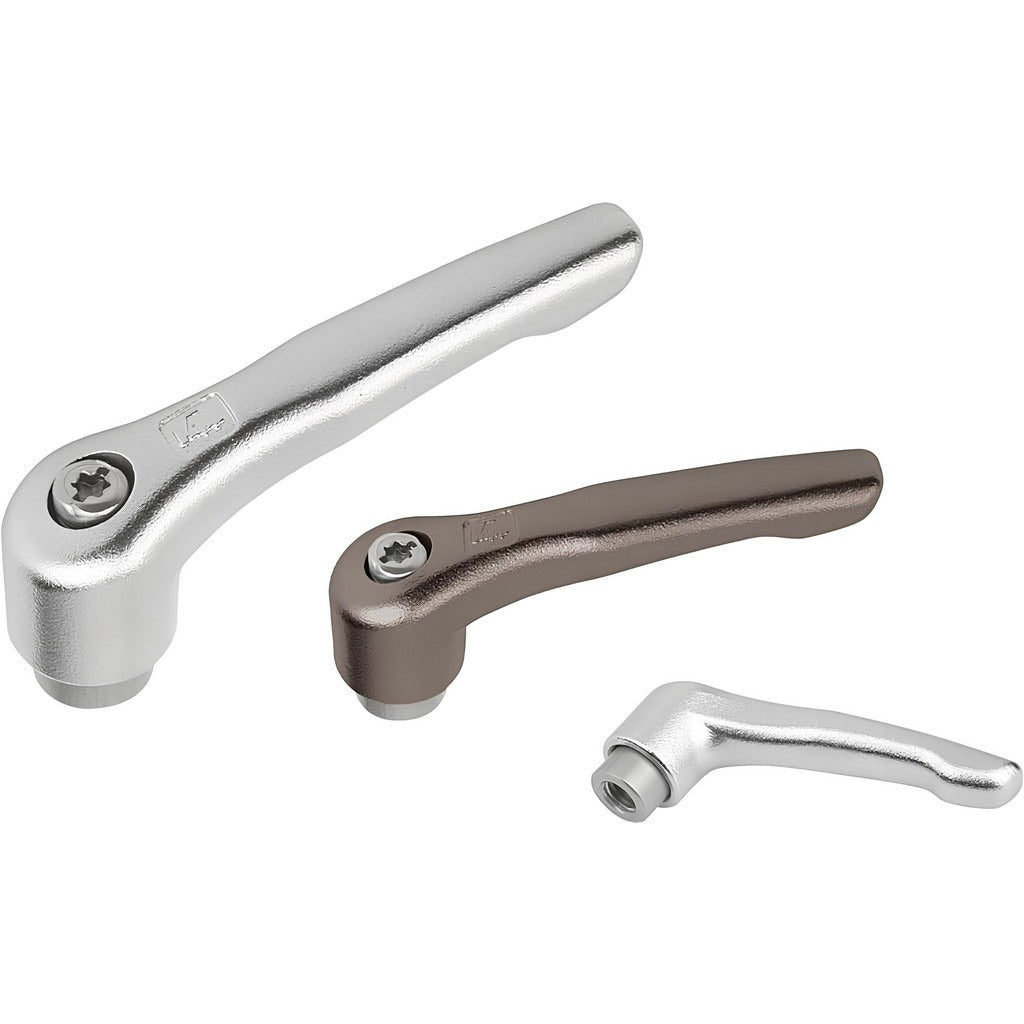

Kipp K0124.1A0X20 Adjustable Clamping Handle 10-24

Product Description

The KIPP K0124.1A0X20 is a threaded stud adjustable clamping handle machined from stainless steel and intended for use in industrial clamping, fixturing, and machine tool applications. The handle provides a firm, ergonomic grip point where frequent manual adjustment is needed. It features a 10-24 threaded stud measuring 0.7874 inches in length, an overall handle length of 1.5748 inches, and an overall height of 1.3386 inches. The bright electrolytic polish finish on the handle arm and the AISI 316 and AISI 303 stainless steel construction make this handle well suited for environments that require corrosion resistance. Machinists, fixture builders, and maintenance technicians are the primary installers.

This adjustable clamping handle is designed for use on machine tools, fixtures, jigs, enclosures, and industrial equipment where a hand-adjustable threaded fastener is required. The 10-24 thread size suits light-duty clamping applications on panels, guards, access doors, and adjustment mechanisms. The modern-design handle arm sits at a 20-degree angle, allowing clearance in tight mounting areas. The hub diameter of 0.55 inches and a compact body diameter of 0.5118 inches keep the overall footprint small. Stainless steel construction throughout makes this handle appropriate for food processing, marine, and washdown environments as well as general industrial use.

Key Features

• 10-24 threaded stud for direct installation into standard threaded inserts or tapped holes
• AISI 316 and AISI 303 stainless steel construction for corrosion resistance in demanding environments
• Electrolytic polish finish on handle arm for a clean, bright appearance and smooth hand feel
• 20-degree handle arm angle provides clearance in confined mounting locations
• Compact 0.55-inch hub diameter and 0.5118-inch body diameter for use in tight spaces
• Stud length of 0.7874 inches with a base height of 0.1575 inches for shallow mounting configurations

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for industrial fixtures, machine tools, enclosures, and equipment requiring a 10-24 threaded stud adjustable handle.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard hand tools. Verify that the mating tapped hole or threaded insert matches the 10-24 thread specification before installation. Power down or de-energize any equipment before replacing or repositioning clamping handles on live machinery. Do not exceed the designed clamping torque for the 10-24 thread to avoid stripping the stud or the mating thread.
