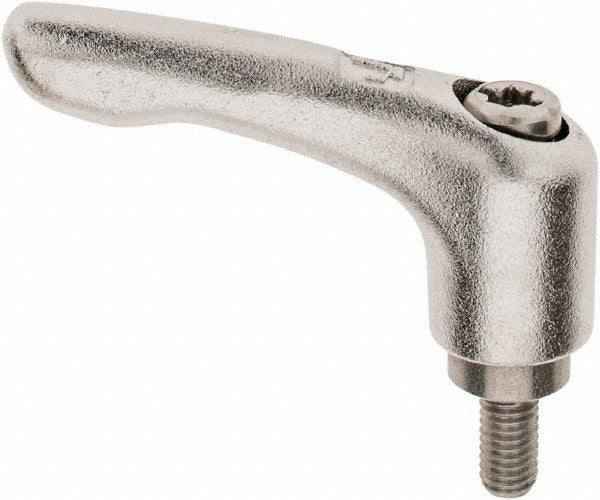

Kipp K0124.105X10 Adjustable Clamping Handle M5x0.8

Product Description

The KIPP K0124.105X10 is a threaded-stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assembly applications. The handle body and stud are both constructed from stainless steel meeting AISI 316 and AISI 303 material specifications, with an electrolytic-polished finish on the handle arm for corrosion resistance and a bright finish on the base components. The M5x0.8 threaded stud measures 10 mm (0.39 inches) in length, and the overall handle length is 40 mm (1.57 inches). The handle arm is set at a 20-degree angle, providing clearance and ergonomic positioning in tight mounting configurations. This part is typically installed by mechanical assemblers, maintenance technicians, and machine builders.

This adjustable clamping handle is suited for use on machine tools, fixtures, jigs, enclosures, and industrial equipment where a repeatable, hand-tightened clamping force is needed. The compact hub diameter of 10 mm and a body diameter of 13 mm make it appropriate for space-constrained mounting points. The threaded-stud mount style allows direct engagement into tapped holes or threaded inserts without additional hardware. It is commonly found in light-duty clamping and positioning applications across manufacturing and fabrication environments.

Key Features

• M5x0.8 threaded stud connection for direct installation into tapped holes
• Stainless steel construction to AISI 316 and AISI 303 specifications for corrosion resistance
• Electrolytic-polished handle arm finish for smooth grip and enhanced surface durability
• 20-degree handle arm angle for clearance in confined mounting areas
• Compact 13 mm body diameter and 10 mm hub diameter for tight-space installations
• Overall height of 31 mm with a body height of 9 mm for low-profile mounting

Compatibility

Designed as a direct-threaded-stud replacement or new-installation clamping handle for equipment with M5x0.8 tapped mounting points requiring an adjustable stainless steel handle.

Installation Notes

Installation is performed by threading the stud directly into an M5x0.8 tapped hole or threaded insert by hand or with appropriate hand tools. Ensure the mating thread is clean and free of debris before engagement. Disengage any stored mechanical energy or motion in the equipment before servicing clamped assemblies. Follow applicable machine safety and lockout-tagout procedures as required by site standards.
