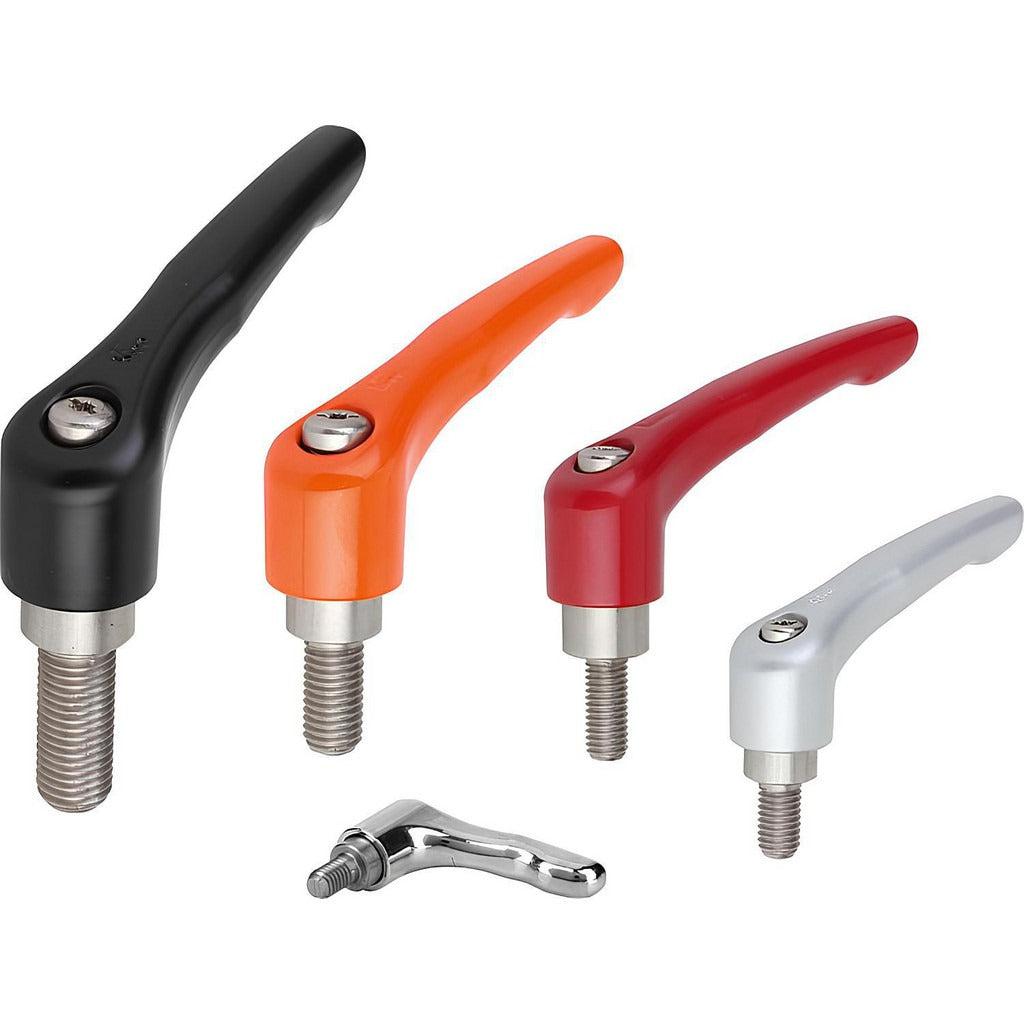

Kipp K0123.4121X60 Adjustable Clamping Handle M12x1.75

Product Description

The KIPP K0123.4121X60 is a metric threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and mechanical assembly applications. The handle features a zinc die cast body with a powder-coated black finish and stainless steel stud and hardware components with a bright finish, meeting DIN EN 12844 material specification. The M12 x 1.75 threaded stud runs 60 mm in length, and the hub diameter measures 27 mm. The handle arm spans 95 mm at a 20-degree angle, making it well-suited for ergonomic hand operation in repetitive adjustment tasks. Licensed technicians, machine builders, and mechanical assemblers are the typical installers of this component.

This adjustable clamping handle is used in industrial machinery, fixtures, jigs, and equipment where frequent manual adjustment or clamping is required. The threaded stud mount type allows direct installation into tapped bores or onto threaded rods. Its modern arm design and sturdy zinc die cast construction make it a practical choice for production environments, tool and die work, and general mechanical assembly where a reliable, hand-operable fastening solution is needed. The stainless steel stud and components provide corrosion resistance in environments exposed to moisture or cleaning agents.

Key Features

• M12 x 1.75 threaded stud with 60 mm stud length for secure engagement in tapped bores
• Zinc die cast handle body with powder-coated black finish meets DIN EN 12844 specification
• Stainless steel stud and hardware components with bright finish for corrosion resistance
• 27 mm hub diameter and 95 mm handle arm length for comfortable hand operation
• 20-degree handle arm angle in a modern arm style for ergonomic clamping
• Threaded stud mount type allows direct installation into standard M12 threaded holes

Compatibility

Designed as a direct-mount replacement or new-installation clamping handle for machinery, fixtures, and equipment with M12 x 1.75 threaded bores requiring manual adjustable clamping handles.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians using standard hand tools. Ensure the mating threaded bore or rod is clean and free of debris before threading the stud into place. De-energize or lock out any machinery before replacing or adjusting clamping handles on live equipment. Do not exceed the clamping torque rating specified for the application by the equipment manufacturer.
