Kipp K0123.4101 Adjustable Clamping Handle M10 X 1.50

Product Description

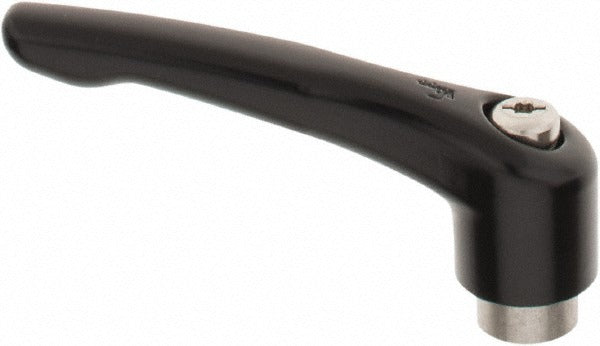

The KIPP K0123.4101 is a threaded-hole adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical applications. The handle features a die cast zinc construction with a powder-coated black finish, providing durability and corrosion resistance in demanding environments. With an M10 x 1.50 thread size, a 95 mm handle length, and a 27 mm hub diameter, this handle delivers reliable clamping force across a wide range of fixture and machine setups. It is typically installed by machine builders, maintenance technicians, and industrial equipment specialists who require repeatable hand-tightened clamping without additional tooling.

This adjustable clamping handle is suited for use on jigs, fixtures, machine guards, tooling plates, and similar industrial equipment where frequent adjustment or repositioning is required. The 20-degree handle arm angle and modern arm style allow for ergonomic operation in tight or angled mounting positions. Stainless steel components complement the die cast zinc body, making this handle appropriate for both light industrial and precision assembly environments where cleanliness and finish quality matter.

Key Features

• M10 x 1.50 threaded hole connection for direct mounting without inserts
• 95 mm handle length for adequate leverage during hand-tightening
• Die cast zinc body with powder-coated black finish for durability
• Stainless steel internal components for corrosion resistance
• 20-degree handle arm angle for ergonomic operation in restricted spaces
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style threaded clamping handle for industrial fixtures, jigs, machine guards, and tooling plates that accept an M10 x 1.50 threaded fastener interface.

Installation Notes

Installation is performed by hand or with standard hand tools on machinery that has been powered down and locked out per applicable LOTO procedures. Verify that the mating threaded bore is clean and free of debris before threading in the handle. Do not over-torque; this handle is designed for hand-tightened clamping force only. Ensure thread pitch and size of the receiving bore match M10 x 1.50 before installation.
