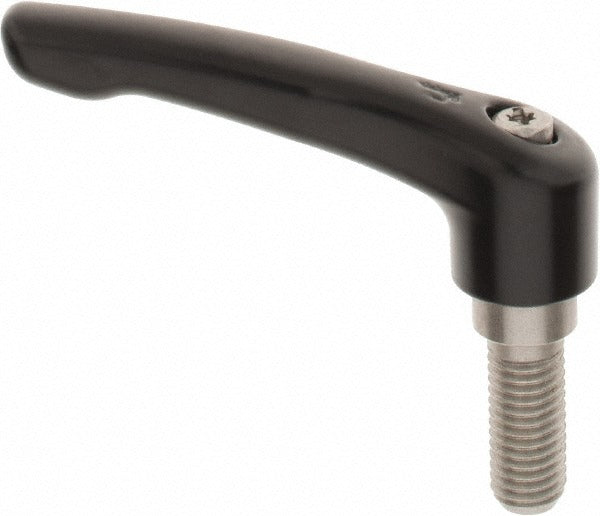

Kipp K0123.2101X25 Adjustable Clamping Handle M10x1.5

Product Description

The KIPP K0123.2101X25 is a metric threaded stud adjustable clamping handle designed for secure, tool-free fastening in industrial and mechanical assembly applications. The handle features an M10 x 1.5 threaded stud with a 25 mm stud length and an 18.5 mm hub diameter. The body is zinc die cast with a powder-coated black finish, while the stud and components are stainless steel with a bright finish. The arm is angled at 20 degrees in a modern profile, providing ergonomic grip and consistent clamping force in repetitive adjustment operations. This handle meets DIN EN 12844 material specifications for zinc pressure die castings.

This adjustable clamping handle is suited for use on machine tools, jigs, fixtures, and industrial equipment where frequent hand-operated clamping and releasing is required. It is a standard-fit component for applications requiring M10 x 1.5 threaded connection points on metal or machine frames. Maintenance technicians and machine builders typically install these handles during equipment setup or as replacements on existing threaded stud mounts.

Key Features

• M10 x 1.5 threaded stud connection, 25 mm threaded length
• Zinc die cast body with powder-coated black finish for durability and corrosion resistance
• Stainless steel stud and components with bright finish, conforming to DIN EN 12844
• 20-degree handle arm angle for ergonomic hand positioning during clamping
• 18.5 mm hub diameter and 13.5 mm base diameter for compact, stable mounting
• Adjustable handle style for flexible positioning during operation

Compatibility

Designed as a direct-fit adjustable clamping handle for equipment and fixtures with M10 x 1.5 threaded stud mount points.

Installation Notes

Installation is performed by threading the stud into a matching M10 x 1.5 female threaded receiver by hand. Ensure the mating thread is clean and free of debris before installation. Disengage or power down any associated machinery before servicing or replacing clamping handles on active equipment. Do not use impact tools or excessive torque, as this is a hand-operated clamping component.
