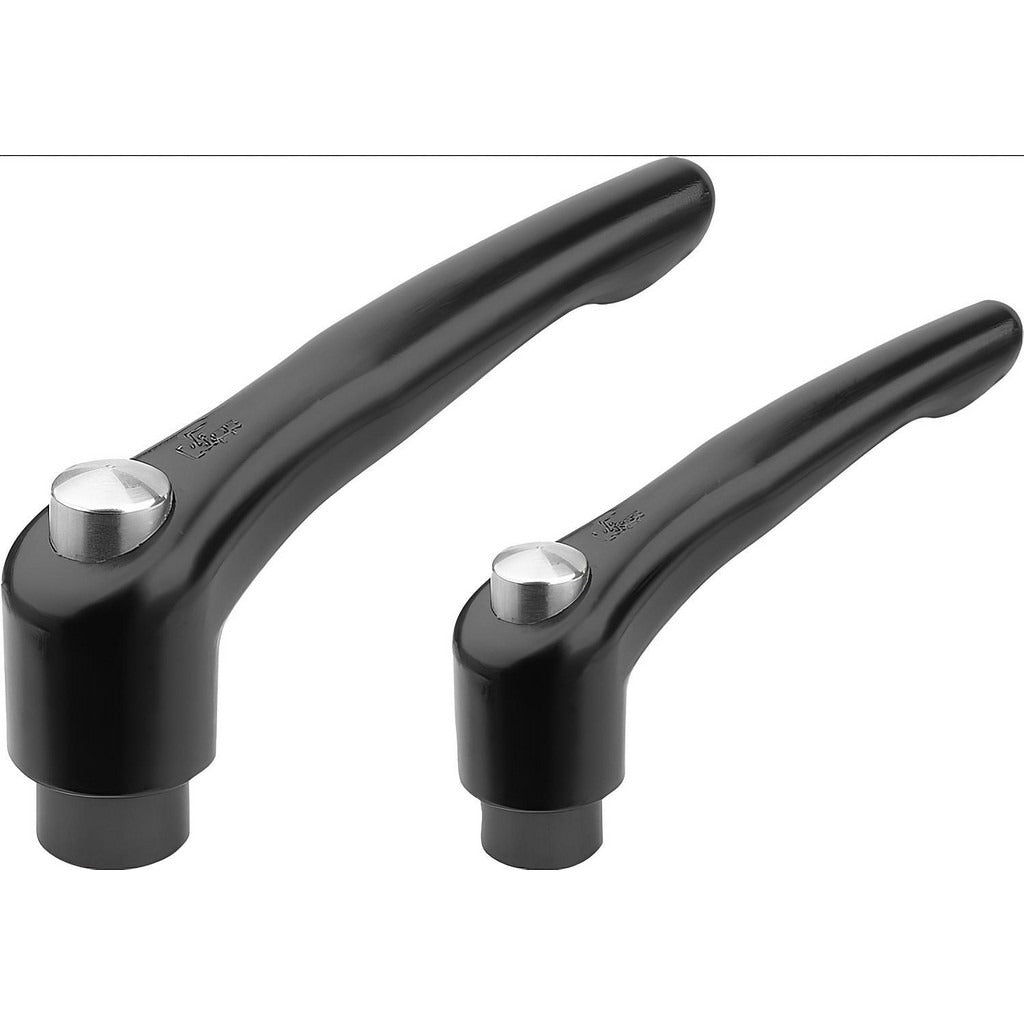

Kipp K0122.2A41X30 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0122.2A41X30 is a threaded stud adjustable clamping handle designed for secure, tool-free manual clamping in industrial and mechanical assembly applications. The handle features a die cast zinc body with a satin finish and a steel stud with black oxide coating. It threads onto a 3/8-16 stud and delivers a handle length of 2.56 inches with an overall height of 1.79 inches. The 20-degree arm angle provides ergonomic grip and controlled torque during tightening. This part is installed by maintenance technicians, machine builders, and assembly professionals working with fixtures, jigs, or equipment panels.

This adjustable clamping handle is suited for use on machine tools, fixtures, enclosures, and industrial equipment where repeated manual adjustment is required. The modern-design arm style and compact hub diameter of 0.73 inches make it appropriate for applications with limited clearance. It is compliant with DIN EN 12844, REACH, and RoHS standards, making it suitable for use in regulated manufacturing environments. Typical applications include positioning arms, clamping fixtures, and panel latching on light to medium industrial machinery.

Key Features

• 3/8-16 threaded stud mount for direct installation into standard tapped holes
• Die cast zinc handle body with satin finish for corrosion resistance and clean appearance
• Steel stud and components with black oxide coating for added durability
• 20-degree arm angle for ergonomic manual tightening and release
• Compliant with DIN EN 12844, REACH, and RoHS requirements
• Compact 0.73-inch hub diameter suited for tight-clearance installations

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, machine tool assemblies, and mechanical equipment using 3/8-16 threaded mounting points.

Installation Notes

Installation is performed by maintenance technicians or machine builders using standard hand tools. Ensure the receiving threads are clean and free of debris before threading the stud into place. De-energize or lock out any equipment before performing handle replacement or adjustment work on live machinery. Do not exceed the manual torque rating appropriate for the thread size and material of the mating component.
