Kipp K0122.2101X30 Adjustable Clamping Handle M10 X 1.50

Product Description

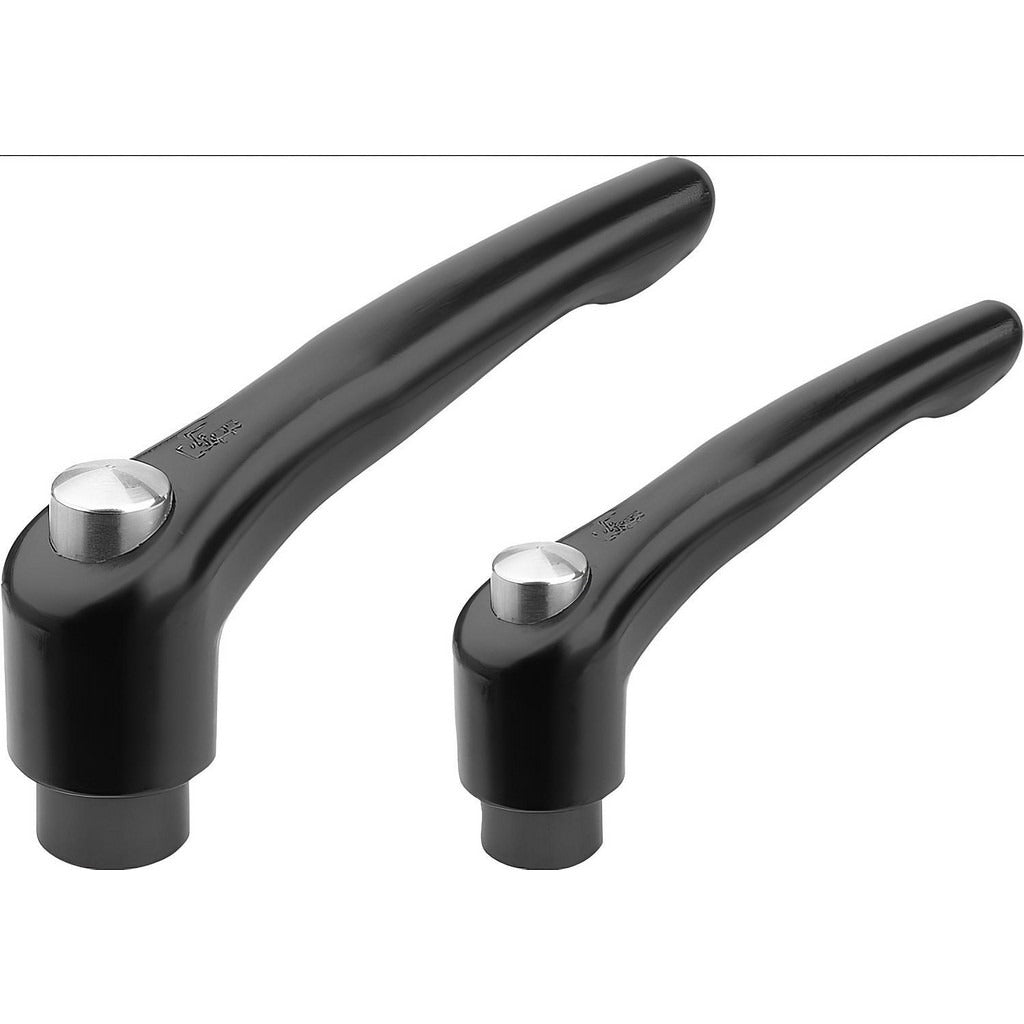

The KIPP K0122.2101X30 is a threaded stud adjustable clamping handle designed for secure manual clamping and positioning in industrial and mechanical assemblies. The handle body is die cast zinc with a satin finish and mounts via an M10 x 1.50 threaded steel stud. The stud length is 30 millimeters and the handle arm extends 65 millimeters for comfortable grip leverage. Hub diameter is 18.5 millimeters and the handle arm is set at a 20-degree angle, which aids ergonomic operation in tight or angled fixture applications. The steel components carry a black oxide finish. This part is installed by machine builders, maintenance technicians, and fixture assemblers working in industrial, automation, and tooling environments.

The K0122.2101X30 is suited for use in jigs, fixtures, machine guards, enclosures, and positioning assemblies where repeatable hand-tightening is required. The adjustable handle design allows the arm to be repositioned around its hub, accommodating varying clearance conditions on the workpiece or mounting surface. Typical applications include clamping arms on workholding fixtures, adjustment handles on industrial equipment panels, and manual locking mechanisms on production machinery. This handle is appropriate for both light industrial and precision assembly environments.

Key Features

• M10 x 1.50 threaded steel stud, 30 millimeters in threaded length
• Die cast zinc handle body with satin finish for corrosion and wear resistance
• Adjustable arm design with 20-degree handle arm angle for versatile positioning
• Steel components with black oxide finish for added durability
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact hub diameter of 18.5 millimeters and base diameter of 13.5 millimeters for space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation clamping handle for industrial fixtures, jigs, and mechanical assemblies using M10 x 1.50 threaded mounting points.

Installation Notes

Installation is performed by hand or with standard hand tools; thread the stud into the receiving M10 x 1.50 tapped hole and tighten to the assembly requirement. Ensure the mating thread depth in the fixture or machine component is sufficient to engage the full 30-millimeter stud length without bottoming out. Relieve any stored mechanical energy or pressure in the assembly before removing or replacing clamping handles. Verify compliance with applicable machine safety standards for the specific equipment being serviced.
