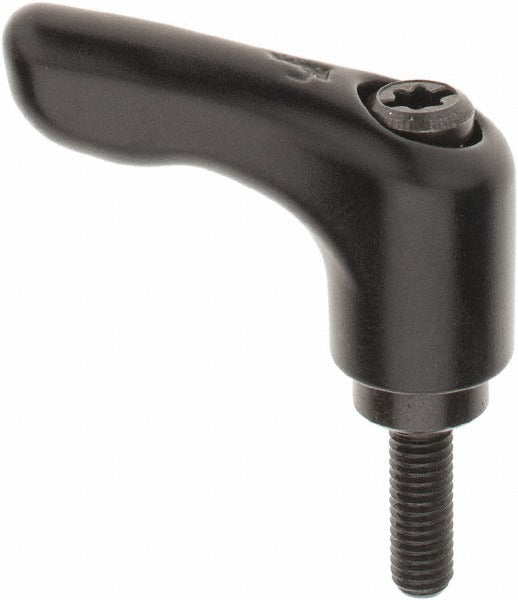

Kipp K0122.0A11X15 Adjustable Clamping Handle 10-32

Product Description

The KIPP K0122.0A11X15 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial fixtures, jigs, and machine tool setups. The handle pivots on an adjustable arm set at a 20-degree angle, allowing the operator to reposition the grip for ergonomic tightening in tight or awkward spaces. The body and hub are die cast zinc with a satin finish, while the threaded stud and internal components are steel with a black oxide coating. The 10-32 threaded stud extends 0.59 inches and mates with standard tapped holes in workholding and assembly equipment. Licensed trades and industrial maintenance technicians install this type of hardware on production fixtures, enclosures, and mechanical assemblies.

This clamping handle suits light-duty clamping applications in manufacturing, tooling, and equipment assembly environments. It is appropriate for use wherever a repeatable, hand-tightened clamping force is needed on a 10-32 threaded mounting point. The compact hub diameter of 0.55 inches and overall handle length of 1.18 inches make it suitable for space-constrained panels and fixture plates. Its modern arm style and black finish are common in instrumentation panels and precision assembly fixtures.

Key Features

• Adjustable 20-degree arm angle allows repositioning for ergonomic hand tightening
• 10-32 threaded stud with 0.59-inch threaded engagement length
• Die cast zinc body and hub with satin finish for corrosion resistance
• Steel stud and internal components with black oxide coating
• Compact form factor: 0.55-inch hub diameter, 1.18-inch handle length, 1.30-inch overall height
• Meets DIN EN 12844, REACH, and RoHS compliance standards

Compatibility

Designed as a standard-fitment replacement or new-install clamping handle for fixtures, jigs, enclosures, and mechanical assemblies using a 10-32 threaded stud mount.

Installation Notes

Installation requires a tapped 10-32 hole in the mating component. Thread the stud in by hand and tighten to the manufacturer-recommended snug fit without the use of power tools. Ensure the adjustable arm is positioned before final seating so the grip clears surrounding structure. No special tools or codes are required for installation of this hardware type.
