Kipp K0122.0A01X45 Adjustable Clamping Handle 10-24

Product Description

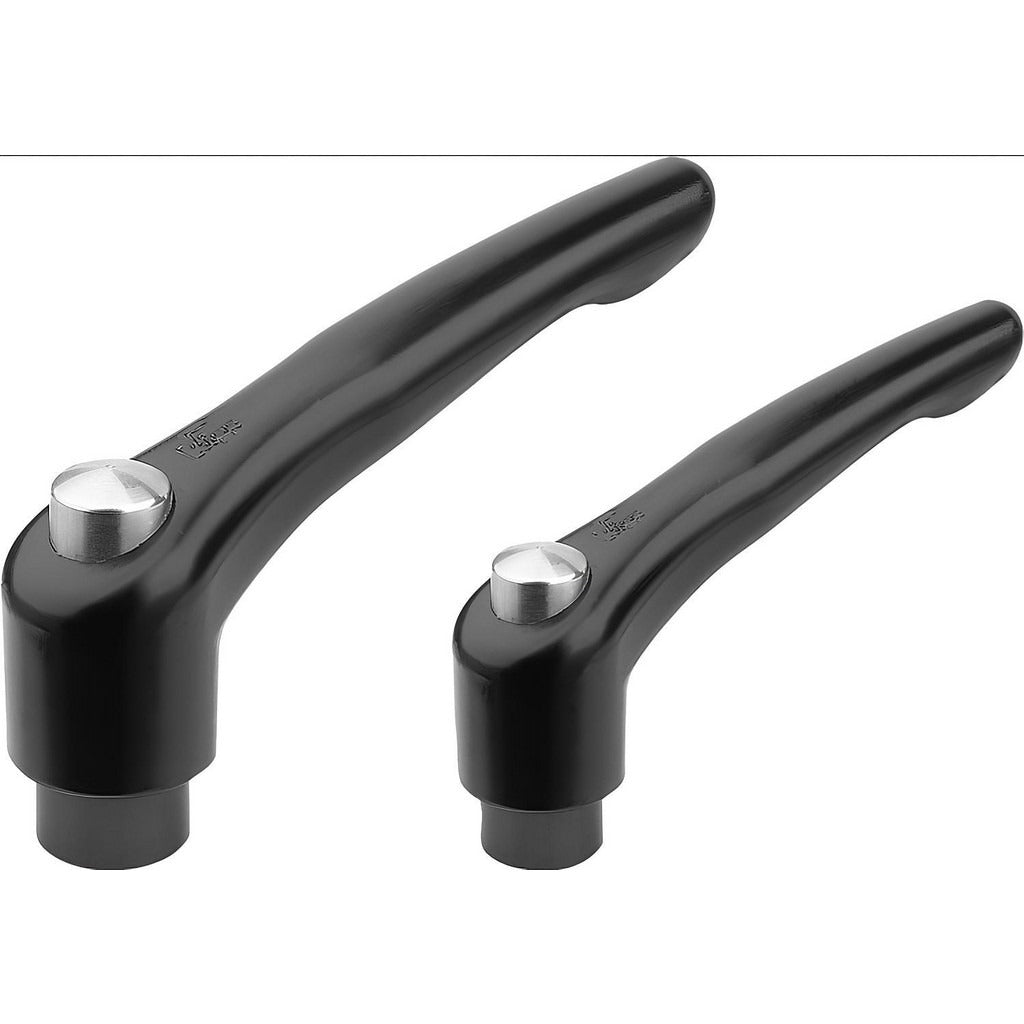

The KIPP K0122.0A01X45 is an inch-size adjustable clamping handle with a threaded stud mount, designed for secure manual clamping and adjustment in industrial and mechanical assemblies. The handle body is die cast zinc with a satin finish, while the stud and internal components are steel with a black oxide coating. The 10-24 threaded stud extends 1.77 inches, making it suitable for standard depth fastening applications. At 0.08 pounds, it is a lightweight component that delivers repeatable hand-tightening force. Machinists, fixture builders, and mechanical assemblers typically install this handle on jigs, fixtures, and machine tool accessories.

This clamping handle fits applications where frequent manual adjustment is required without tooling. The modern arm design with a 20-degree handle arm angle provides ergonomic grip and consistent clamping torque by hand. It is well-suited for light industrial equipment, tooling fixtures, enclosures, and positioning systems where a compact, low-profile handle with a threaded stud interface is specified. The overall handle length of 1.18 inches and overall height of 1.30 inches keep the footprint small in space-constrained assemblies.

Key Features

• 10-24 threaded stud mount with 1.77 inch stud length for standard fastening depth
• Die cast zinc handle body with satin finish for corrosion resistance and clean appearance
• Steel components with black oxide coating for durability
• 20-degree handle arm angle for ergonomic hand-tightening
• Compact form factor: 1.18 inch handle length, 1.30 inch overall height, 0.51 inch body diameter
• Manufactured to DIN EN 12844 material specification

Compatibility

Designed as a standard inch-size adjustable clamping handle for use in jigs, fixtures, machine tool accessories, and light industrial equipment requiring a 10-24 threaded stud interface.

Installation Notes

Installation is performed by threading the stud into a prepared 10-24 tapped hole in the mating component. Ensure the receiving material is tapped to the correct depth to fully engage the 1.77 inch stud length. De-energize and lock out any machinery before installing or replacing handles on powered equipment. Do not use impact tools on the handle body, as the die cast zinc construction is intended for hand-tightening applications only.
