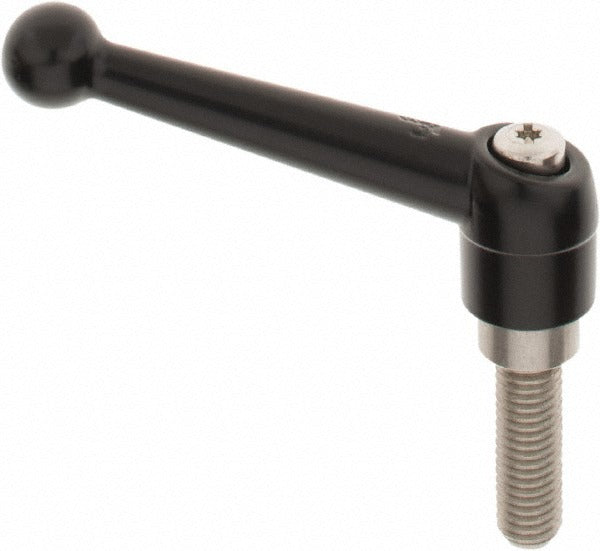

Kipp K0117.4A51X40 Adjustable Clamping Handle 1/2-13

Product Description

The KIPP K0117.4A51X40 is a threaded stud adjustable clamping handle designed for secure, tool-free fastening in industrial and mechanical applications. The handle is constructed from die cast zinc with a powder-coated black finish and features a stainless steel stud with a 1/2-13 thread size and a stud length of 1.57 inches. The ball-end arm spans 3.74 inches in length and pivots at a 20-degree angle, allowing the operator to reposition the handle for clearance in tight assemblies. Overall height is 2.83 inches. This type of handle is installed by machine builders, maintenance technicians, and equipment assemblers working on jigs, fixtures, guards, and adjustable machine components.

Adjustable clamping handles in this series are used on machine tool fixtures, industrial enclosures, inspection equipment, and production jigs where repeated manual adjustment is required without tools. The 1/2-13 threaded stud allows direct engagement with standard tapped holes or mating hardware. The 20-degree arm angle and ball end improve ergonomics during repetitive clamping cycles. This part is suited for light-duty to medium-duty clamping on stationary or repositionable assemblies in manufacturing and maintenance environments.

Key Features

• 1/2-13 threaded stud with 1.57-inch stud length for standard tapped-hole engagement
• Die cast zinc body with powder-coated black finish for corrosion resistance in shop environments
• Stainless steel stud and components with black oxide finish
• Ball-end arm style at 20-degree angle improves grip and clearance in confined spaces
• Handle arm length of 3.74 inches provides leverage for firm manual clamping
• Meets DIN EN 12844 material specification; REACH Compliant and RoHS Compliant

Compatibility

Designed as a direct-install adjustable clamping handle for machinery, fixtures, and equipment with a 1/2-13 tapped mounting hole. No additional adapter hardware required for standard 1/2-13 thread engagement.

Installation Notes

Installation is performed by machine builders or maintenance technicians using standard hand tools. Disengage or lock out the associated machine or assembly before installing or adjusting the handle to prevent unintended movement. Thread the stud into the mating tapped hole to the appropriate engagement depth for the application without over-torquing the zinc body. Verify the pivot arm moves freely through its adjustment range after installation.
