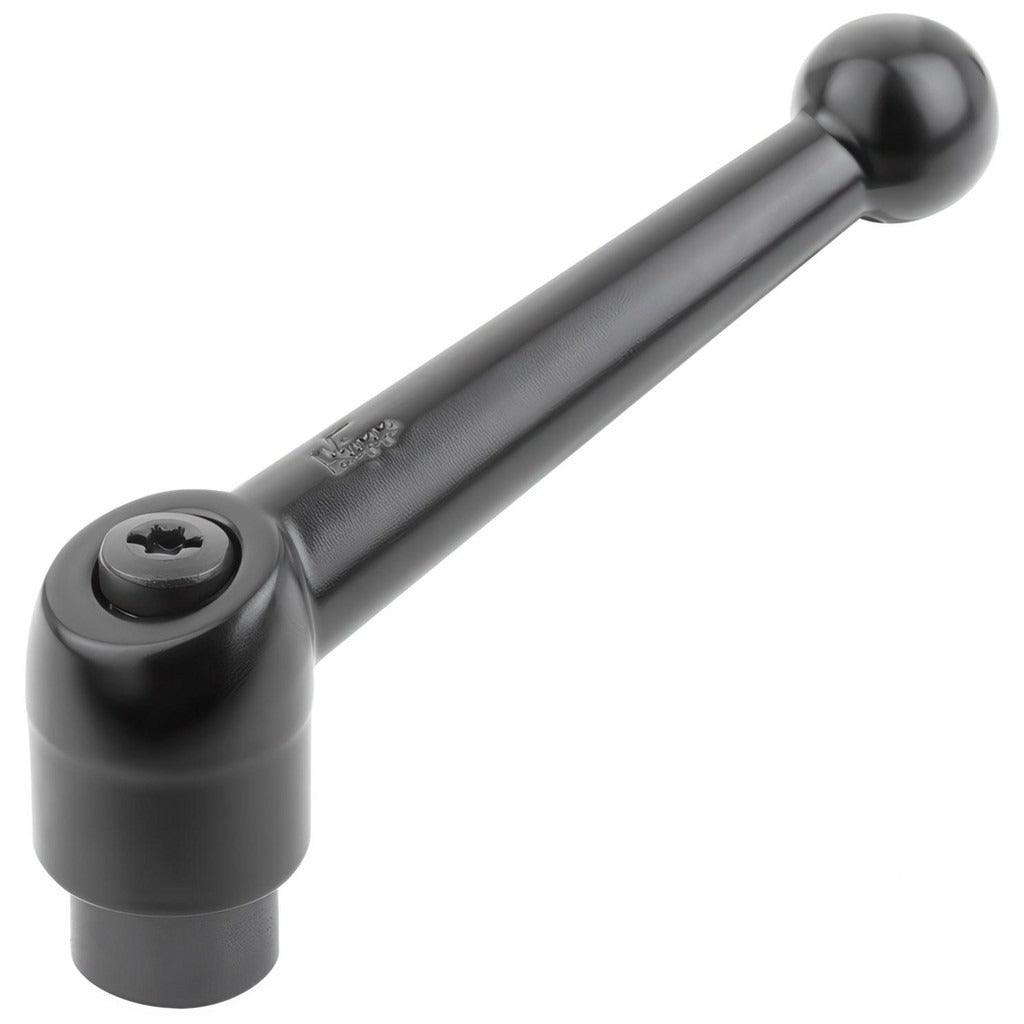

Kipp K0116.3A41 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0116.3A41 is a threaded-hole adjustable clamping handle designed for use on machine tools, fixtures, jigs, and industrial equipment requiring quick manual adjustment and secure clamping. The handle is constructed from die cast zinc with a powder-coated black finish, providing corrosion resistance and a durable grip surface. The steel components carry a black oxide finish. Key dimensions include a 3.11-inch handle length, a 0.83-inch hub diameter, and a 3/8-16 threaded hole connection. The ball-end arm style and 20-degree arm angle allow the handle to swing past obstructions, making it well suited for tight or recessed mounting locations. Installation is performed by maintenance technicians and machine operators.

This handle is used in industrial and light manufacturing environments wherever a hand-adjustable fastening point is needed on panels, doors, machine guards, clamps, or fixtures. The 3/8-16 threaded hole mount accepts a standard 3/8-16 bolt or stud. The 0.55-inch threaded engagement depth accommodates typical fastener lengths used in light fabrication and fixture work. The compact 0.83-inch hub diameter and 0.63-inch base diameter allow installation in space-constrained applications. It is equally appropriate for OEM equipment assembly and field retrofit situations.

Key Features

• 3/8-16 threaded hole connection with 0.55-inch thread engagement depth
• Die cast zinc handle body with powder-coated black finish for durability
• Steel internal components with black oxide finish
• Ball-end arm style with 20-degree arm angle for clearance in tight spaces
• 3.11-inch handle length for comfortable hand torque
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for machinery, fixtures, and equipment using a 3/8-16 threaded stud or bolt mounting point.

Installation Notes

Installation is performed by threading the handle onto a compatible 3/8-16 stud or cap screw. De-energize or lock out any machine before servicing associated clamping hardware per applicable safety procedures. Verify thread engagement depth does not exceed the 0.55-inch threaded hole depth to avoid bottoming out the fastener. Hand-tighten only - no torque tools required for standard clamping handle service.
