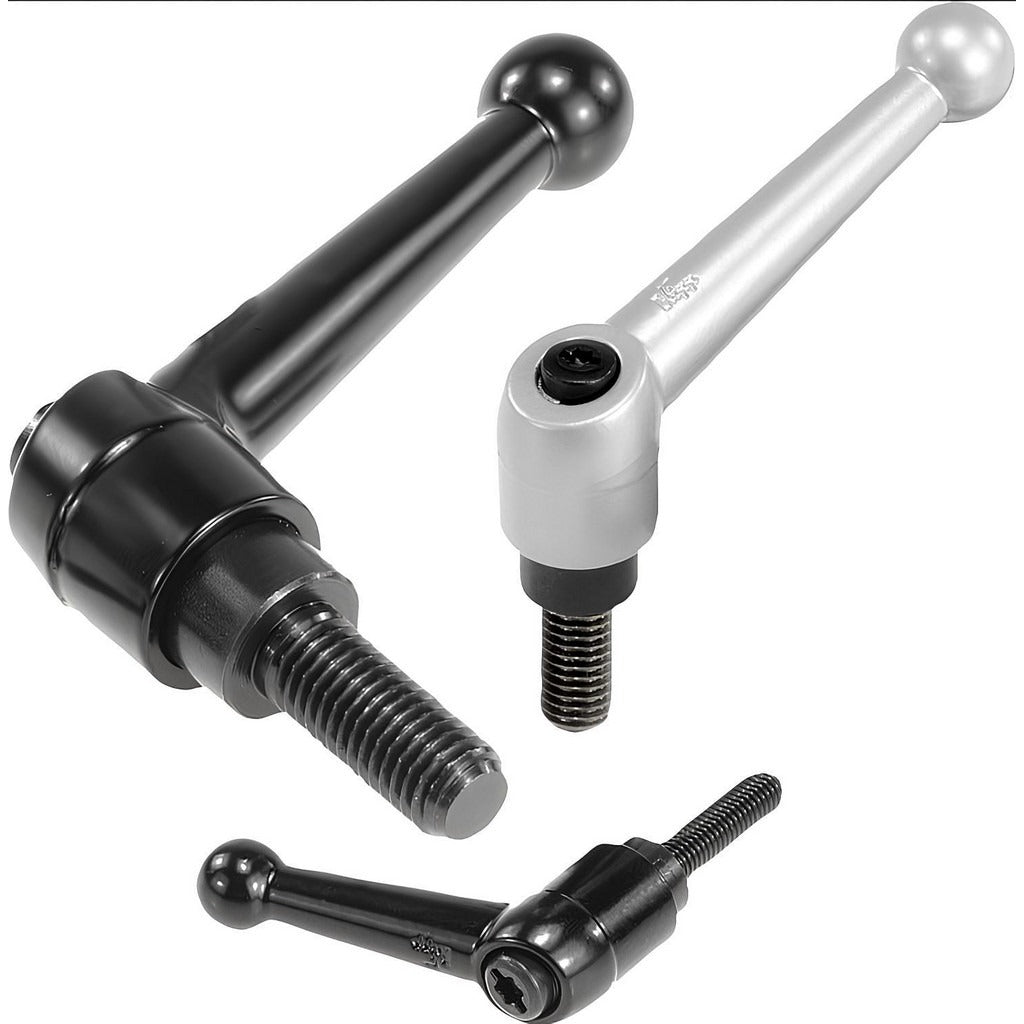

Kipp K0116.2A41X50 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0116.2A41X50 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and locking applications in industrial and mechanical assemblies. The handle features a die cast zinc body with a powder coated black finish, a steel stud with black oxide coating, and a ball end arm style that allows the arm to pivot up to 20 degrees for clearance during adjustment. The 3/8-16 threaded stud measures 1.97 inches in length, and the overall handle length is 2.52 inches. Installed by millwrights, machine builders, and maintenance technicians wherever repeatable hand-tightened clamping is required.

This adjustable clamping handle is suited for use on machine tools, fixtures, jigs, enclosures, and industrial equipment requiring frequent manual adjustment. The threaded stud mount type allows direct installation into tapped holes in machine frames or fixture plates. The 20-degree pivoting arm is particularly useful in tight clearance situations where a fixed handle would obstruct access. Typical applications include clamping guards, positioning stops, and securing panels in light-to-medium duty assemblies across manufacturing and maintenance environments.

Key Features

• 3/8-16 threaded stud mount for direct installation into standard tapped holes
• Ball end arm with 20-degree pivot angle for clearance in tight spaces
• Die cast zinc handle body with powder coated black finish for corrosion resistance
• Steel components with black oxide coating
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact profile: 2.52 inches handle length, 0.73 inches knob diameter

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial machinery, fixtures, and equipment using a standard 3/8-16 threaded mount.

Installation Notes

Installation is performed by threading the steel stud directly into a pre-tapped 3/8-16 hole in the mounting surface. Ensure the mating thread is clean and free of debris before installation. No special tools are required for hand-tightening; use appropriate tooling only if torque requirements are specified by the equipment manufacturer. De-energize and lock out any machinery before servicing clamping hardware on live equipment.
