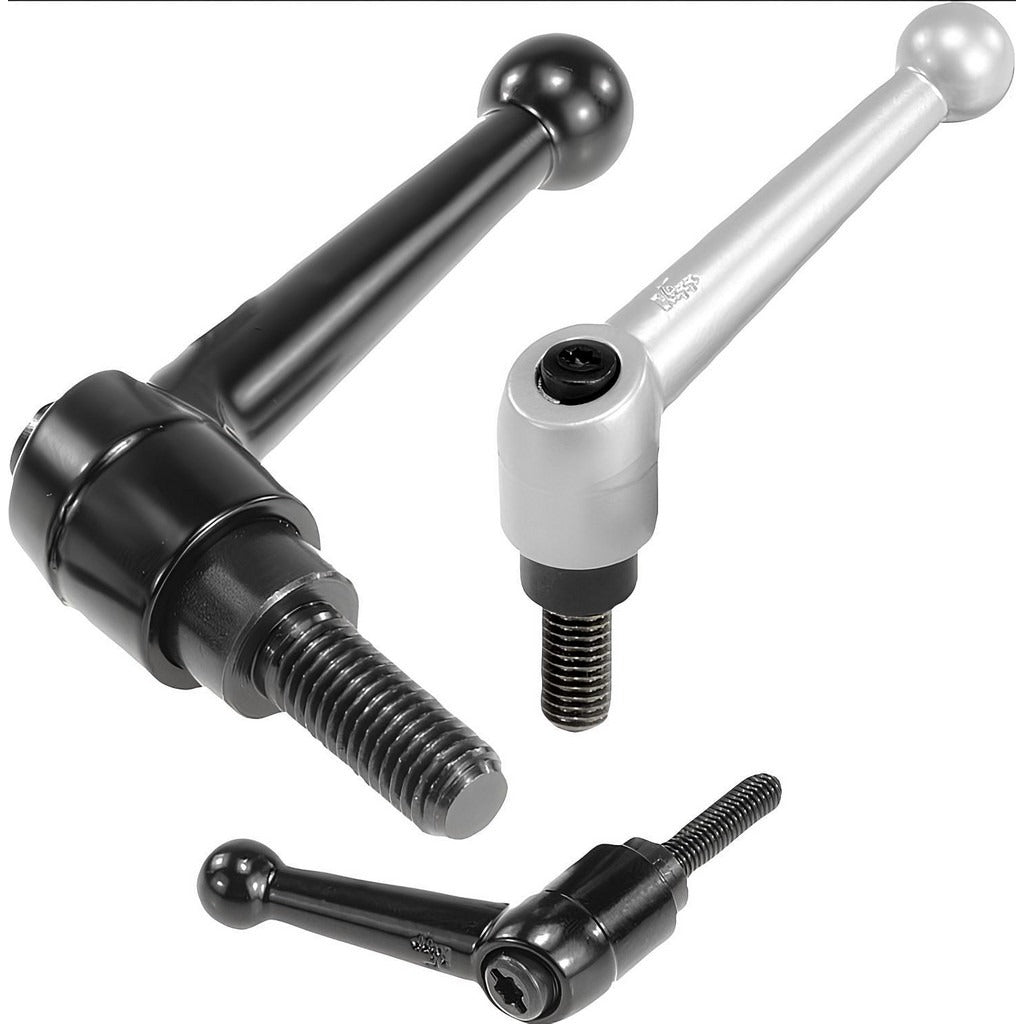

Kipp K0116.2081X20 Adjustable Clamping Handle M8 X 1.25

Product Description

The KIPP K0116.2081X20 is an adjustable clamping handle with a threaded stud mount, designed for secure manual clamping and positioning in industrial and mechanical assemblies. The handle body is die cast zinc with a powder-coated black finish, while the stud and internal components are steel with a black oxide coating. The M8 x 1.25 threaded stud measures 20 mm in length, and the ball-end handle arm spans 64 mm at a 20-degree angle, providing comfortable leverage for frequent hand-tightening operations. Hub diameter is 18 mm. This handle is installed by maintenance technicians, machine builders, and tooling specialists working on jigs, fixtures, enclosures, and light industrial equipment.

This adjustable clamping handle is suited for use on machine tools, fixtures, workholding devices, and equipment panels where tool-free manual adjustment is required. The threaded stud configuration allows direct installation into tapped holes in aluminum, steel, or plastic components. It is a standard fastener-category hardware item used across general manufacturing, automation assembly, and maintenance applications wherever repeatable hand-tightened clamping is needed.

Key Features

• M8 x 1.25 threaded stud, 20 mm threaded length, for direct installation into tapped holes
• Die cast zinc handle body with powder-coated black finish for corrosion resistance
• Steel stud and components with black oxide coating
• Ball-end handle arm at 20-degree angle, 64 mm handle length for ergonomic grip
• 18 mm hub diameter, 13.5 mm base diameter, 11.5 mm body height
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as a standard M8 x 1.25 threaded stud clamping handle for use in tapped M8 holes on industrial fixtures, machine tool components, and equipment enclosures.

Installation Notes

Installation requires a properly tapped M8 x 1.25 hole in the mating component. Ensure the thread engagement depth accommodates the 20 mm stud length. De-energize or lock out any equipment before adjusting or replacing clamping handles on active machinery. No special tools are required for hand installation; verify thread engagement is sufficient for the clamping load before putting the assembly into service.
