Kipp K0116.1061X20 Adjustable Clamping Handle M6x1.00

Product Description

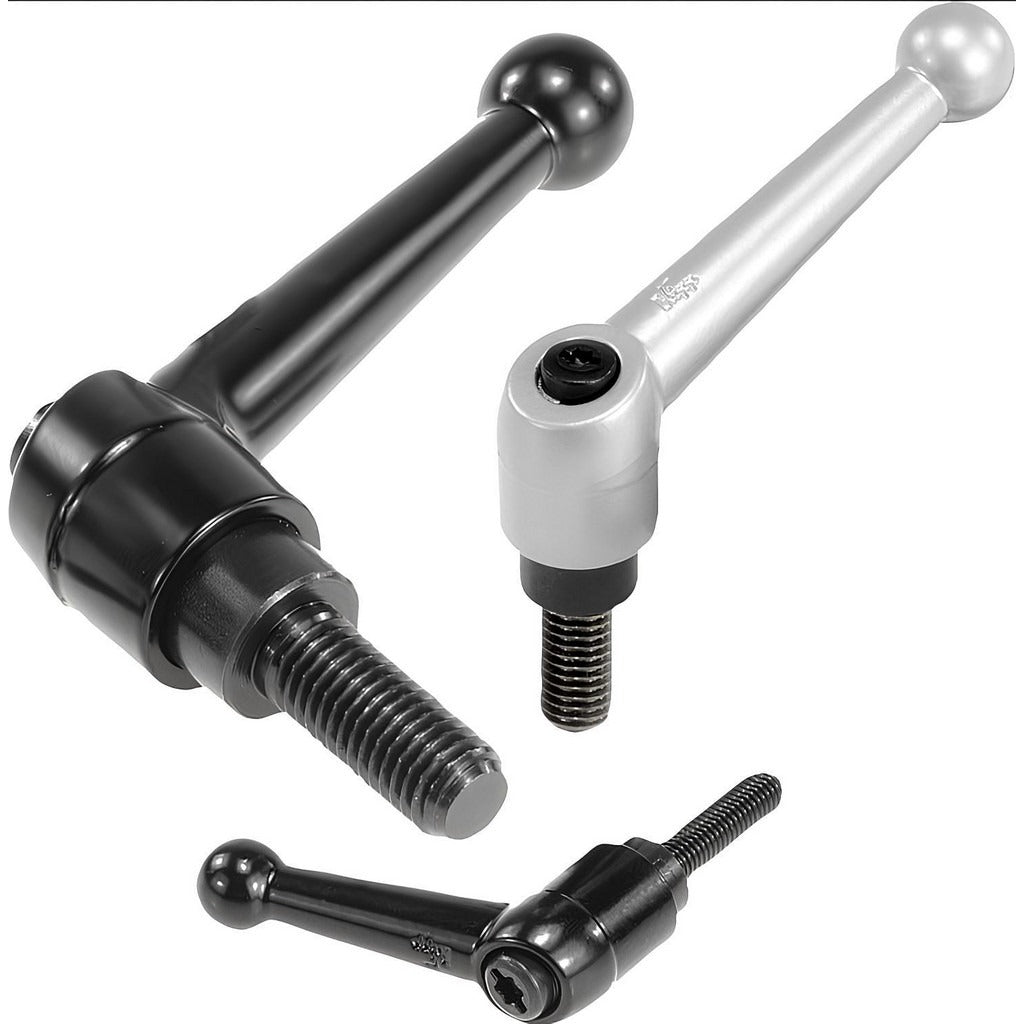

The KIPP K0116.1061X20 is an adjustable clamping handle with a threaded stud mount, designed for tool-free manual clamping and positioning on machine fixtures, jigs, and industrial assemblies. The handle body is die cast zinc with a powder-coated black finish, while the stud and internal components are steel with a black oxide finish. The M6 x 1.00 threaded stud extends 20 millimeters, providing a secure engagement point. Overall handle length is 39 millimeters (approximately 1.54 inches), and the hub diameter is 13 millimeters (0.51 inches). The ball-end handle arm is positioned at a 20-degree angle for ergonomic grip in tight spaces. This type of handle is installed by maintenance technicians and machine builders in light industrial and equipment assembly applications.

The K0116.1061X20 suits residential and commercial machine tool setups, fixture plates, equipment panels, and anywhere a compact adjustable clamping handle is needed. Its M6 x 1.00 thread is a common metric fastener standard, making it a practical fit across a wide range of European and metric-spec equipment. The compact body height of 9 millimeters and base diameter of 10 millimeters allow installation in space-constrained locations. No tooling is required for tightening under normal clamping loads.

Key Features

• M6 x 1.00 threaded stud mount with 20 mm threaded length for direct engagement into metric-tapped holes
• Die cast zinc handle body with powder-coated black finish for corrosion resistance and durability
• Steel stud and components with black oxide finish
• Ball-end handle arm at 20-degree angle for ergonomic operation in confined spaces
• Compliant with DIN EN 12844, REACH, and RoHS standards
• Compact form factor: 9 mm body height, 10 mm base diameter

Compatibility

Designed as a standard metric adjustable clamping handle for use with M6 x 1.00 threaded fixture points on machine tools, jigs, equipment panels, and industrial assemblies. Verify thread engagement depth against stud length before installation.

Installation Notes

Installation is performed by machine builders, maintenance technicians, or fixture assemblers and requires no specialty tools beyond verifying proper thread engagement. Ensure the receiving threaded hole is clean and free of debris before threading in the stud. Power down or de-energize any associated equipment before servicing fixtures that incorporate this handle. Do not exceed the handle design load by using extension tools or applying impact force to the handle arm.
