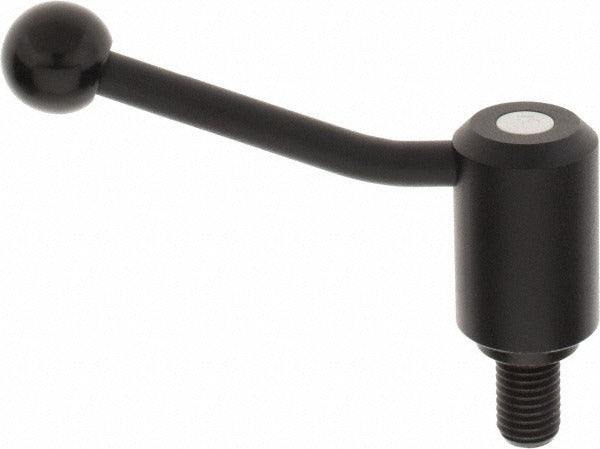

Kipp K0108.4A71X30 Tension Lever Handle 3/4-10

Product Description

The KIPP K0108.4A71X30 is an adjustable tension lever clamping handle with a threaded stud mount, designed for secure, tool-free clamping in industrial and mechanical applications. The handle body and stud are constructed from Grade 5.8 steel with a powder-coated black finish for durability and corrosion resistance. The lever arm measures 5.059 inches in radius length and features a ball-end style arm set at a 20-degree angle, allowing comfortable grip and repeatable clamping force. A plastic knob complements the steel body for ergonomic operation. Machinists, maintenance technicians, and equipment assemblers install this type of handle on fixtures, jigs, machine guards, and adjustable mechanical assemblies.

This clamping handle is suited for use on machinery, production fixtures, enclosures, and mechanical assemblies where frequent clamping and release cycles are required. The 3/4-10 threaded stud connection makes it compatible with standard tapped mounting points across a wide range of industrial equipment. It is appropriate for both light manufacturing and heavy-duty fixturing environments where a reliable, adjustable grip is needed without additional tooling.

Key Features

• Adjustable tension lever design allows tool-free clamping and release
• 3/4-10 threaded stud mount for compatibility with standard tapped holes
• Grade 5.8 steel construction with powder-coated black finish for durability
• Ball-end lever arm at 20-degree angle for ergonomic grip and controlled torque
• 1.61 inch hub diameter and 1.18 inch stud length for secure seating
• Steel and plastic knob combination balances strength with hand comfort

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures and mechanical assemblies using a 3/4-10 threaded stud mount configuration.

Installation Notes

Installation is performed by maintenance technicians or machine builders. Disengage or de-energize any moving machinery before removing or installing clamping handles. Thread the stud into the tapped hole by hand until fully seated before applying clamping force through the lever. Do not exceed the handle rated clamping load for the Grade 5.8 stud material.
