Kipp K0108.4242X90 Tension Lever Clamping Handle M24x3

Product Description

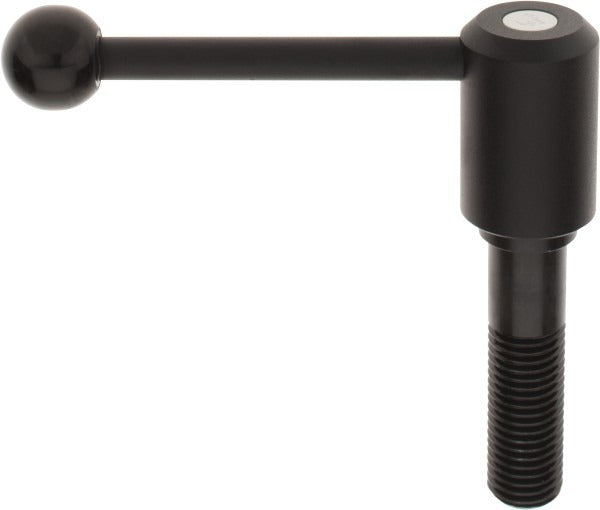

The KIPP K0108.4242X90 is an adjustable tension lever clamping handle with a threaded stud connection, designed for use in industrial clamping and positioning applications. The handle is constructed from Grade 5.8 steel with a powder-coated black finish and features a ball-end arm at a straight 0-degree angle. Key dimensions include an overall length of 5.28 inches, a stud length of 3.54 inches, and a hub diameter of 1.61 inches. The M24x3 threaded stud interfaces directly with compatible threaded components for secure, repeatable clamping force. This type of handle is typically installed by machine builders, millwrights, and maintenance technicians working on fixtures, jigs, and industrial machinery.

The K0108.4242X90 is suited for use in machine tool fixtures, workholding systems, and equipment requiring frequent manual adjustment or clamping. The adjustable lever design allows the handle arm to be repositioned to avoid obstructions during operation, making it practical in tight or variable-clearance installations. A plastic ball knob is integrated at the handle end for operator comfort during repeated use cycles.

Key Features

• Adjustable lever arm allows repositioning to clear obstructions in confined spaces
• M24x3 threaded stud with 3.54 inches stud length and 60 mm threaded engagement length
• Grade 5.8 steel construction with powder-coated finish on both handle and body components
• Ball-end handle arm at straight 0-degree angle for ergonomic manual operation
• Hub diameter of 1.61 inches and body diameter of 41 mm for consistent seating on standard fixtures
• REACH Compliant and RoHS Compliant

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures and machinery using M24x3 threaded stud clamping handles.

Installation Notes

Installation is performed by machine builders or maintenance technicians familiar with threaded fastener assemblies. Shut down and de-energize or de-pressurize any machine or fixture before servicing clamping hardware. Ensure the mating threaded bore is clean and free of debris before threading the stud. Do not use impact tools on the threaded stud, as this may damage the Grade 5.8 threads.
