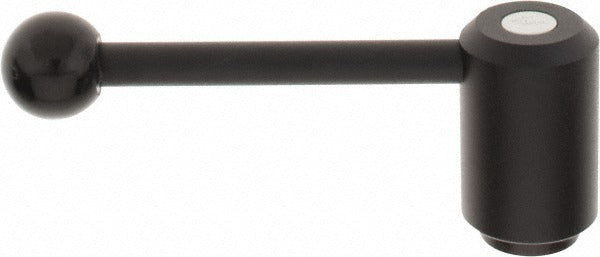

Kipp K0108.4202 Adjustable Tension Lever Handle M20

Product Description

The KIPP K0108.4202 is a heavy-duty adjustable tension lever clamping handle designed for industrial clamping and positioning applications. The handle features a threaded hole mount with an M20 x 2.50 thread and a 1.06-inch hole depth, allowing secure attachment to machine components, fixtures, and assemblies. The steel body and lever arm are powder coated for corrosion resistance, while the ball-end knob is constructed from plastic for comfortable operation. At 5.3 inches overall length and 2.22 inches overall height, this handle delivers solid mechanical leverage in a compact footprint. It is installed by machine builders, maintenance technicians, and industrial equipment assemblers.

This clamping handle is suited for use on machine tools, jigs, fixtures, work-holding equipment, and industrial positioning systems that require frequent manual adjustment and secure clamping. The straight 0-degree arm angle makes it well suited for applications where unrestricted lever rotation is needed. The 1.61-inch hub diameter and 41 mm body diameter are sized for medium-to-heavy clamping loads on production and maintenance equipment in industrial and manufacturing environments.

Key Features

• M20 x 2.50 threaded hole mount with 1.06-inch hole depth for direct machine attachment
• Steel body and lever arm rated to Grade 5.8 material specification
• Powder coated finish on both handle and body components for corrosion resistance
• Ball-end plastic knob for ergonomic hand grip during repeated adjustment cycles
• Straight 0-degree arm angle allows full rotational clearance in open mounting positions
• Compact 5.3-inch overall length delivers mechanical advantage without excessive reach

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures, machine tools, and positioning assemblies using an M20 x 2.50 threaded mounting interface.

Installation Notes

Installation is performed by machine builders or maintenance technicians familiar with manual clamping hardware. De-energize and lock out any powered equipment before replacing or installing clamping handles on active machinery. Verify that the mating threaded bore is clean, undamaged, and matches the M20 x 2.50 thread specification before engaging the handle. Do not exceed the clamping load ratings of the mating fixture or machine component.
