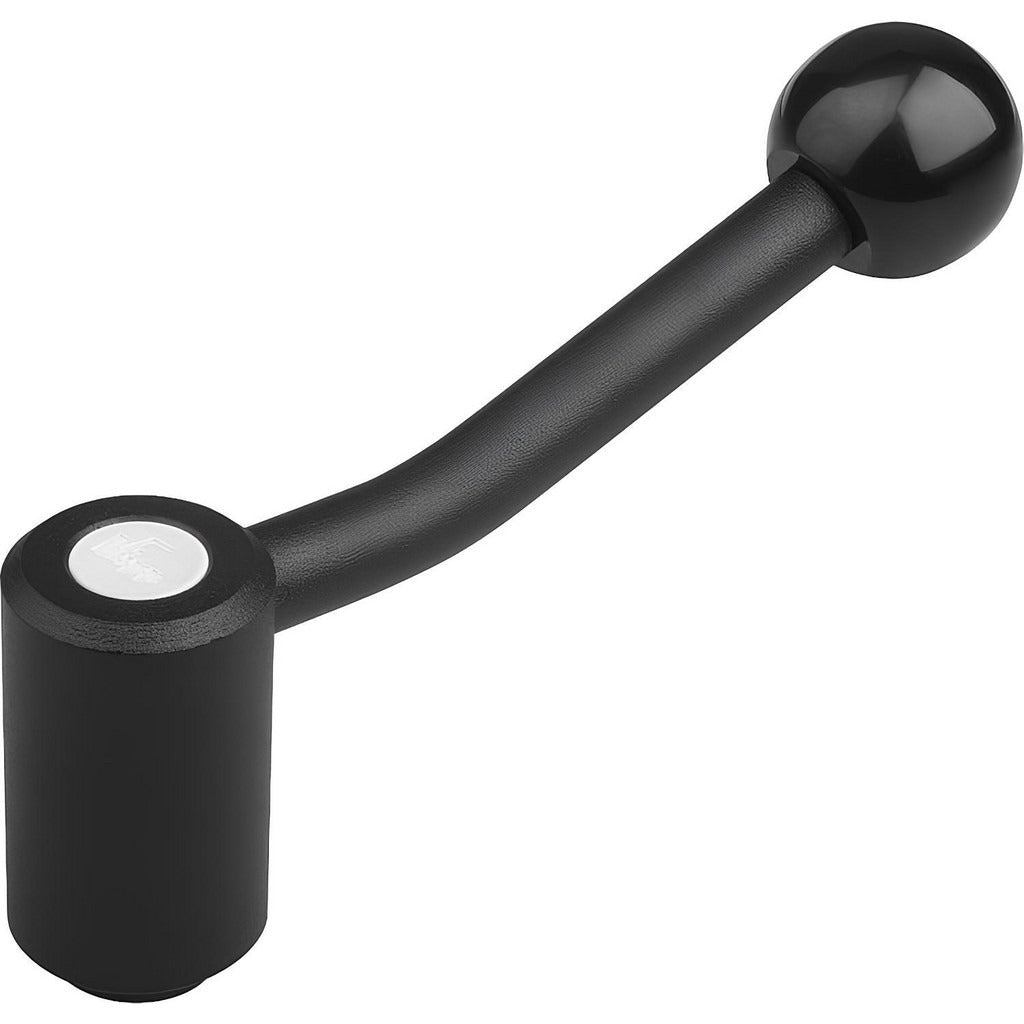

Kipp K0108.4201X40 Adjustable Tension Lever Handle M20

Product Description

The KIPP K0108.4201X40 is an adjustable tension lever clamping handle with a threaded stud mount, designed for secure manual clamping in industrial and mechanical applications. Built from Grade 5.8 steel with a powder-coated finish, this handle provides reliable clamping force with a simple lever-tighten action. The M20 x 2.5 threaded stud extends 1.57 inches and integrates directly into compatible threaded bores or fixtures. With an overall length of 5.06 inches and a ball-end lever arm set at a 20-degree angle, the handle offers ergonomic reach and consistent torque application for technicians working in production, maintenance, and assembly environments.

This clamping handle is suited for use in machine tool setups, jigs, fixtures, and industrial equipment where hand-adjustable clamping is required. The steel body with plastic knob construction balances durability and operator comfort. It is a direct-mount solution for applications requiring frequent adjustment or repositioning without the use of additional tools. Typical users include machine operators, maintenance technicians, and equipment assemblers working in manufacturing and industrial service settings.

Key Features

• M20 x 2.5 threaded stud mount for direct installation into standard threaded bores
• Grade 5.8 steel construction with powder-coated finish for corrosion resistance and durability
• Ball-end lever arm at 20-degree angle for ergonomic hand clamping
• 1.57-inch stud length with 1.61-inch hub diameter for stable seating
• Black powder-coated steel body with plastic knob for operator comfort
• Tool-free hand adjustment suitable for frequent repositioning applications

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures, jigs, and machine tool components using an M20 x 2.5 threaded stud interface.

Installation Notes

Installation is performed by maintenance technicians or equipment assemblers and requires no special tooling beyond standard hand tools for initial threading. Ensure the mating threaded bore is clean and free of debris before installing the stud. De-energize or lock out any associated machinery before adjusting or replacing clamping handles on active equipment. Verify stud engagement depth meets the requirements of the fixture or equipment manufacturer.
