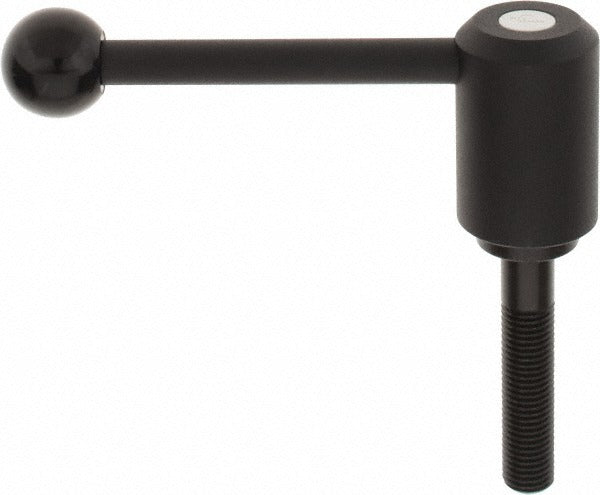

Kipp K0108.4162X80 Tension Lever Clamping Handle M16

Product Description

The KIPP K0108.4162X80 is an adjustable tension lever clamping handle designed for secure, tool-free clamping in industrial and mechanical assemblies. Built on an M16 x 2.00 threaded stud, it delivers firm, repeatable clamping force through a straight, ball-end lever arm. The handle body and stud are constructed from Grade 5.8 steel with a powder-coated finish, providing durability in workshop and production environments. The lever arm spans 134 millimeters in radius length, giving the operator sufficient mechanical advantage for hand-tightening applications. This handle is installed by machine builders, maintenance technicians, and tooling specialists who need reliable manual clamping without reaching for a wrench.

This clamping handle is suited for use on machine tools, fixtures, jigs, and industrial equipment where frequent adjustment or repositioning is required. The threaded stud mount style allows direct installation into tapped holes or onto threaded posts. With an 80-millimeter stud length and 60-millimeter threaded engagement length, it accommodates a range of panel thicknesses and mounting configurations. The black powder-coated steel body and plastic knob complement standard industrial hardware setups in both light manufacturing and heavy-duty tooling applications.

Key Features

• M16 x 2.00 threaded stud for direct installation into tapped bores or onto threaded posts
• Grade 5.8 steel construction on handle body and stud for reliable load-bearing performance
• Powder-coated finish on both handle and body components for corrosion and abrasion resistance
• 134-millimeter lever radius provides mechanical advantage for hand-tightening without tools
• Straight 0-degree ball-end arm style for consistent grip and ergonomic operation
• 60-millimeter threaded engagement length accommodates varied panel and fixture thicknesses

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial machinery, fixtures, and jigs requiring an M16 x 2.00 threaded stud tension lever clamping handle.

Installation Notes

Installation is typically performed by machine builders or maintenance technicians familiar with manual clamping hardware. Ensure the mating tapped hole or threaded post is clean and free of debris before threading the stud. De-energize or lock out any associated machinery before servicing clamps on active equipment. Verify thread engagement depth meets the structural requirements of the application before applying clamping load.
