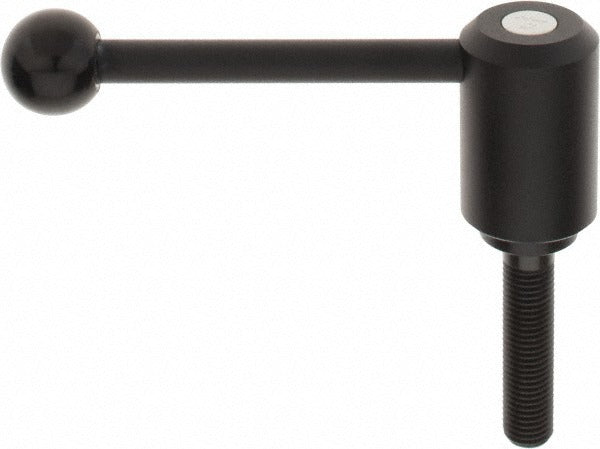

Kipp K0108.4162X70 Tension Lever Clamping Handle M16

Product Description

The KIPP K0108.4162X70 is an adjustable tension lever clamping handle with a threaded stud mount designed for industrial clamping and positioning applications. It features an M16 x 2.00 threaded stud, a 1.61-inch hub diameter, and a straight ball-end handle arm. The steel handle and stud are powder coated black to Grade 5.8 material specification. Overall length is 5.28 inches, with a stud length of 2.75 inches. Licensed machinists, maintenance technicians, and machine builders install this type of handle on fixtures, jigs, and industrial equipment where repeatable hand-tightened clamping is required.

This clamping handle is suited for use on machine tools, fixtures, work-holding equipment, and industrial machinery requiring a hand-operated threaded fastening point. The M16 x 2.00 thread size is common in metric-standard equipment across manufacturing and automation environments. The adjustable tension lever allows the handle position to be set at any angle for ergonomic access in tight or awkward mounting orientations. It is appropriate for both light-duty and moderate-load clamping tasks in shop and factory settings.

Key Features

• M16 x 2.00 threaded stud mount for direct engagement with metric-threaded components
• Adjustable tension lever design allows handle angle to be repositioned to any orientation
• Steel handle and stud construction to Grade 5.8 material specification
• Powder coated black finish on both handle and body for corrosion resistance and a clean appearance
• Ball-end straight arm style with 134 mm handle radius for consistent grip and leverage
• Plastic knob integrated into handle assembly for comfortable hand operation

Compatibility

Designed as an OEM-style replacement or direct-install clamping handle for industrial fixtures and machinery with M16 x 2.00 metric threaded mounting points.

Installation Notes

Installation is typically performed by machine builders, millwrights, or maintenance technicians. Ensure the mating threaded hole or insert is clean and free of debris before threading in the stud. Hand-tighten to the desired clamping position and set the lever angle before applying final load. Do not exceed the rated clamping load for the Grade 5.8 stud material.
