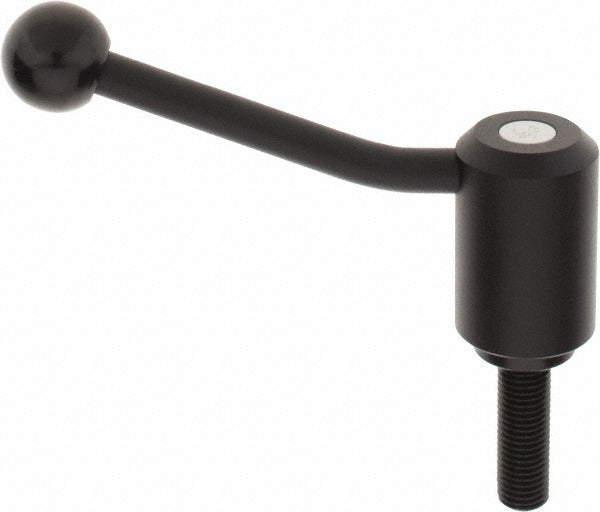

Kipp K0108.4161X50 Tension Lever Clamping Handle M16

Product Description

The KIPP K0108.4161X50 is an adjustable tension lever clamping handle with a threaded stud connection designed for secure, tool-free clamping and positioning in industrial and mechanical assemblies. The handle uses an M16 x 2.00 threaded stud and features a powder-coated steel body and arm with a plastic ball-end knob. The hub diameter measures 1.61 inches, the stud length is 1.97 inches, and the overall length reaches 5.06 inches. The lever arm is set at a 20-degree angle, allowing ergonomic hand placement in tight or angled mounting configurations. Licensed technicians and maintenance trades use this handle to replace or upgrade clamping points on fixtures, jigs, and machine guards.

This adjustable clamping handle is suited for use on machine tool fixtures, positioning equipment, clamping jigs, and industrial assembly rigs where repeatable hand-tightened clamping is required. The M16 x 2.00 thread size is a common metric standard, making this handle applicable across a wide range of European-designed and metric-compatible machinery platforms. The tension lever design allows the handle arm to be repositioned radially so it does not interfere with adjacent components during operation.

Key Features

• M16 x 2.00 threaded stud mount for direct engagement with metric threaded bores
• Adjustable lever arm repositions radially at 20-degree increments to clear obstructions
• Powder-coated steel handle and body for corrosion resistance and durability
• Ball-end plastic knob for comfortable hand grip and ergonomic operation
• Grade 5.8 material specification on steel components
• 1.97-inch stud length with 50.00 mm threaded engagement length

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for industrial machinery, fixtures, and positioning equipment using M16 x 2.00 metric threaded mounting points.

Installation Notes

Installation is performed by maintenance technicians or millwrights as part of machine setup or handle replacement. De-energize and lock out the machine before servicing any clamping or fixturing hardware. Thread the stud fully into the receiving bore and verify seating before applying clamping load. Do not use power tools to drive the handle into the bore, as this may damage the stud threads or the receiving component.
