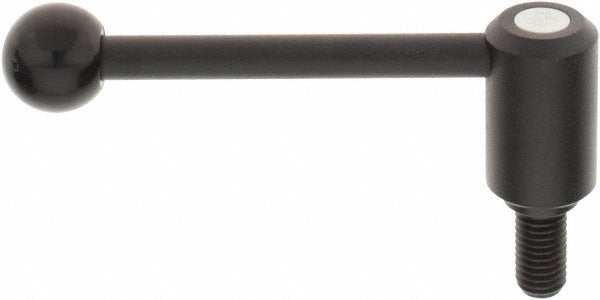

Kipp K0108.3A62X30 Tension Lever Handle 5/8-11

Product Description

The KIPP K0108.3A62X30 is an adjustable tension lever clamping handle designed for securing and releasing clamped assemblies in industrial and mechanical applications. The handle features a straight-arm, ball-end lever with a 5/8-11 threaded stud and a hub diameter of 1.3 inches. The lever arm spans 5.3 inches in length, providing adequate mechanical advantage for hand-tightening without tools. The steel body and stud are powder-coated black, with Grade 5.8 material specification. A plastic knob caps the ball end for a secure grip. Licensed machinists, millwrights, and fixture builders commonly install this type of handle on jigs, fixtures, and clamping assemblies.

This clamping handle is suited for use on machine tool fixtures, work-holding jigs, guards, and adjustable mechanical assemblies where frequent manual clamping and release is required. The 5/8-11 thread size fits standard UNC threaded bores found across a wide range of industrial equipment and fabricated fixtures. The stud length of 1.18 inches accommodates typical panel and fixture mounting depths. The adjustable tension feature allows the lever arm to be repositioned for ergonomic clearance in tight spaces.

Key Features

• 5/8-11 UNC threaded stud for compatibility with standard threaded bores
• Straight ball-end lever arm at 5.3 inches for manual clamping leverage
• Grade 5.8 steel construction with powder-coated black finish for corrosion resistance
• Adjustable lever arm positioning allows repositioning to clear obstructions
• Hub diameter of 1.3 inches and body diameter of 1.3 inches for stable seating
• Stud length of 1.18 inches suits standard panel and fixture mounting thicknesses

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and clamping assemblies that use a 5/8-11 UNC threaded stud mount.

Installation Notes

Installation is performed by threading the stud into the mating 5/8-11 tapped bore by hand and tightening to the required clamp load. Disengage or de-energize any moving or powered equipment before installing or adjusting clamping handles on active assemblies. Do not use power tools to drive the stud, as overtightening may damage threads or the fixture bore. Verify lever arm clearance before final positioning of the adjustable arm.
