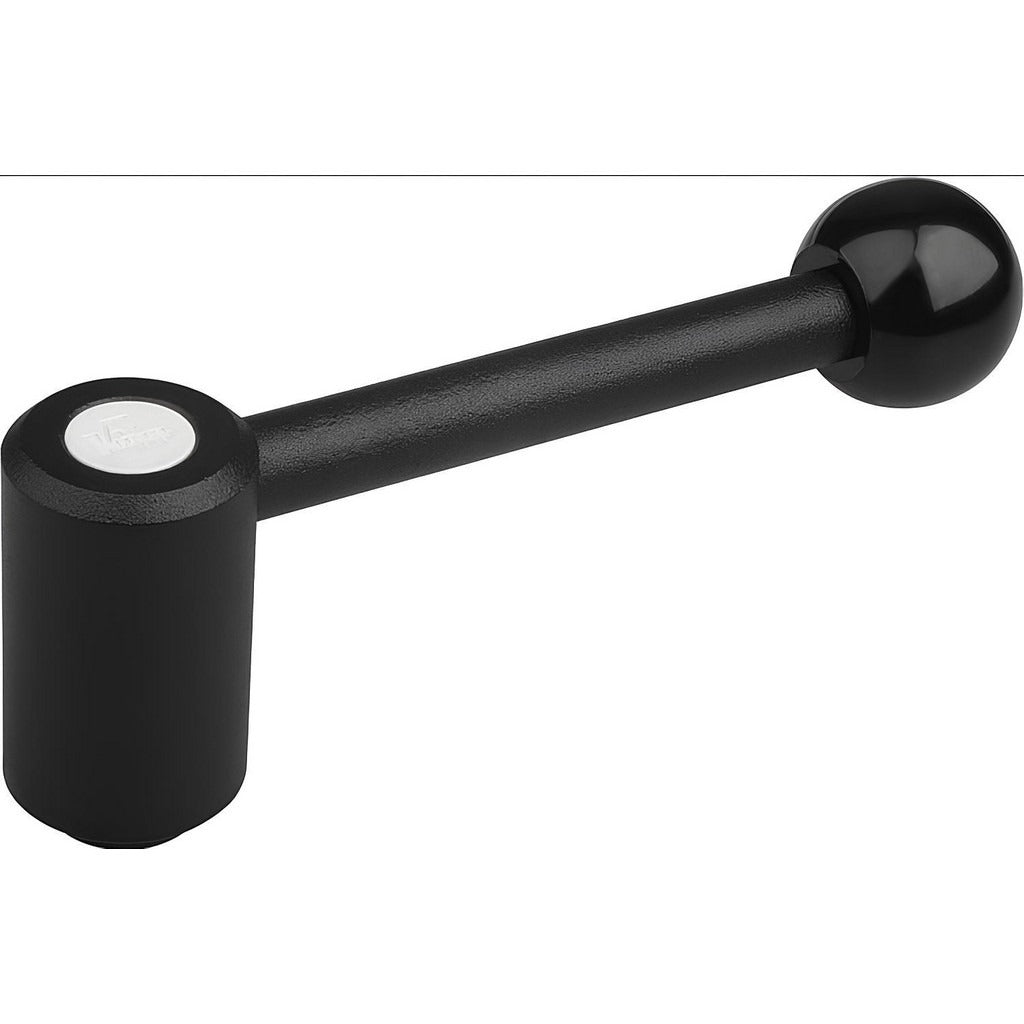

Kipp K0108.3162X50 Tension Lever Handle M16x2 Threaded Stud

Product Description

The KIPP K0108.3162X50 is an adjustable tension lever clamping handle with a threaded stud connection, designed for use in industrial clamping and positioning applications. The handle body and stud are constructed from Grade 5.8 steel with a powder-coated finish, providing durability in demanding workshop and machine environments. The straight-arm, ball-end handle measures 5.3 inches in overall length and pivots to allow tension adjustment, making it well-suited for repeated clamping cycles where hand-tightening torque needs to be controlled. The M16 x 2.00 threaded stud extends 1.97 inches and accepts standard metric fastening points. Licensed mechanical and industrial maintenance technicians, as well as tooling and fixture builders, typically install this type of component.

This handle is used in industrial machinery, jigs, fixtures, and work-holding equipment where quick-adjust clamping is required. The M16 x 2.00 thread size makes it compatible with a wide range of metric-threaded machine frames, clamping plates, and positioning assemblies. The 1.3-inch hub diameter and 23.00 mm base diameter suit standard mounting bores found in production and toolroom equipment. It is suited for both light manufacturing and heavy tooling environments where a reliable, hand-operated clamping mechanism is needed.

Key Features

• Adjustable tension lever design allows controlled hand-tightening torque for repeatable clamping
• M16 x 2.00 threaded stud, 1.97 inches long, for direct engagement with metric-threaded fixtures
• Grade 5.8 steel construction on handle body and stud for strength and durability
• Powder-coated finish on both handle and components for corrosion resistance and appearance retention
• Straight 0-degree arm with ball end for ergonomic grip and comfortable operation
• Plastic knob integrated into ball-end handle arm for comfortable hand engagement

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial jigs, fixtures, clamping assemblies, and machine frames using M16 x 2.00 metric threaded mounting points.

Installation Notes

Installation is typically performed by millwrights, toolmakers, or maintenance technicians working on industrial equipment. Thread the stud into the receiving hole by hand first, then snug with an appropriate wrench if required, taking care not to overtighten and damage the threaded interface. Ensure the receiving bore and thread are clean and free of debris before installation. Consult machine or fixture documentation for any required clamping load specifications.
