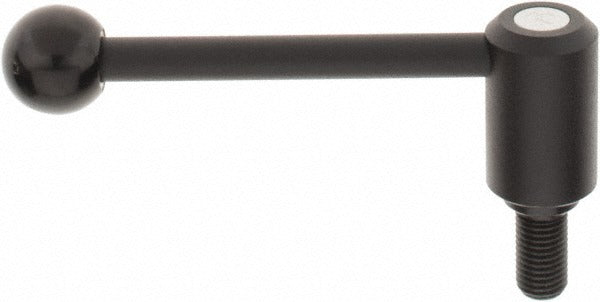

Kipp K0108.3162X30 Tension Lever Handle M16x2 Steel

Product Description

The KIPP K0108.3162X30 is an adjustable tension lever clamping handle with a threaded stud mount designed for industrial machinery, fixtures, and mechanical assemblies requiring quick, tool-free clamping adjustments. Built from Grade 5.8 steel with a powder-coated finish, the handle delivers reliable clamping force through an M16 x 2.00 threaded stud. The straight-arm lever spans 5.3 inches overall and integrates a ball-end grip with a black plastic knob measuring 32 millimeters in diameter. Licensed trades and machine technicians working on clamping fixtures, jigs, and adjustment mechanisms will find this handle a direct fit for standard M16 tapped positions.

This handle suits light industrial and precision mechanical applications where operator-adjustable clamping is needed without a wrench. Typical installations include machine tool fixtures, workholding equipment, and adjustment assemblies on fabrication or assembly-line equipment. The threaded stud configuration allows the handle to thread directly into tapped holes or pair with a standard M16 nut for through-hole mounting. The straight arm style at 0 degrees provides unobstructed lever travel in tight-clearance installations.

Key Features

• M16 x 2.00 threaded stud mount for direct installation into tapped holes
• Grade 5.8 steel construction with powder-coated finish for corrosion resistance
• Ball-end lever arm with black plastic knob for comfortable hand operation
• Straight arm at 0 degrees accommodates tight-clearance mounting positions
• 1.3 inch hub diameter with 1.18 inch stud length for standard clamping depth
• Adjustable tension design allows repositioning without tools

Compatibility

Designed as a replacement or new-install clamping handle for industrial fixtures and mechanical assemblies with M16 x 2.00 tapped mounting points.

Installation Notes

Installation is performed by qualified machine maintenance technicians or industrial mechanics. Thread the stud into the tapped hole by hand, then tighten to the assembly specification using the lever or a wrench on the stud flats if accessible. Ensure the mating thread is clean and free of debris before installation to avoid cross-threading Grade 5.8 steel. De-energize and lock out any machine before servicing clamping hardware on live equipment.
