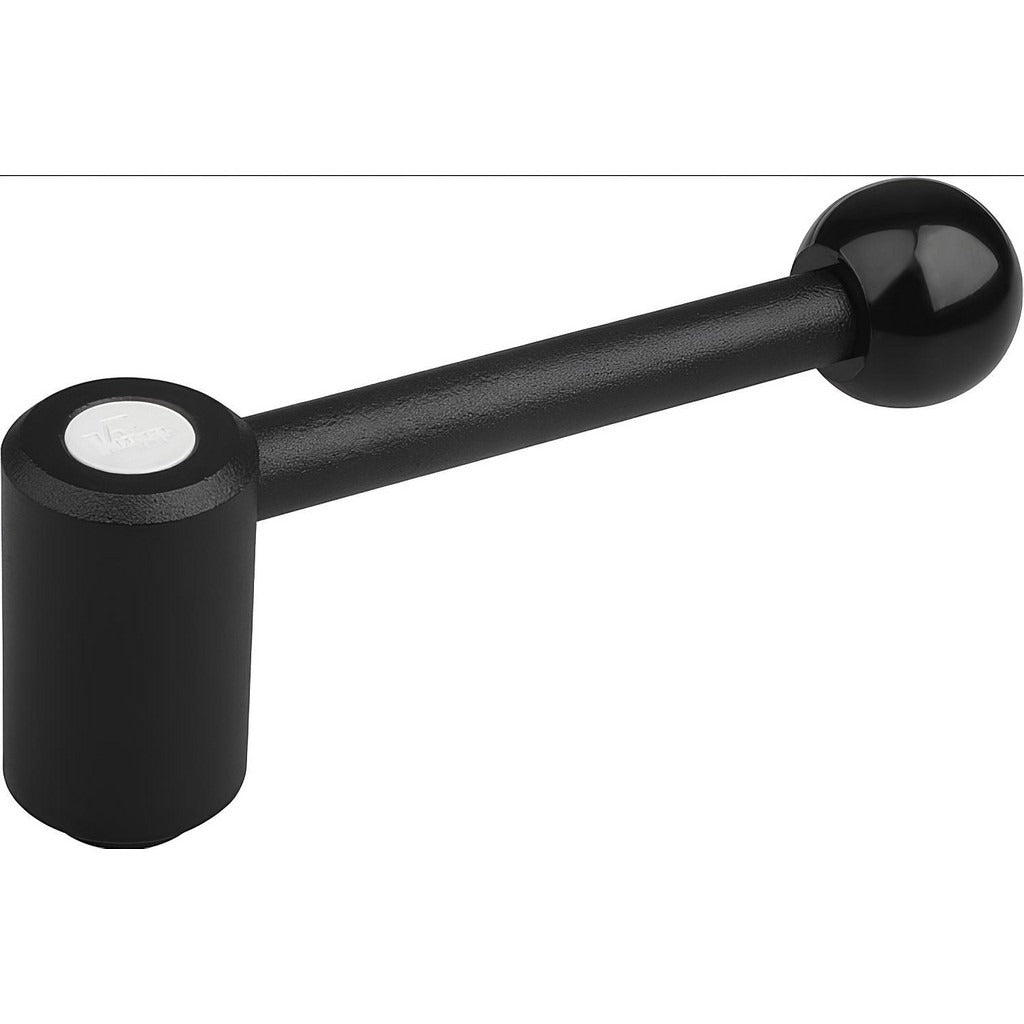

Kipp K0108.3122X30 Adjustable Tension Lever Handle M12x1.75

Product Description

The KIPP K0108.3122X30 is an adjustable tension lever clamping handle with a threaded stud mount designed for secure, tool-free clamping in industrial and mechanical applications. The handle features a straight, ball-end lever arm in a powder-coated steel construction rated to Grade 5.8 material specification. Key dimensions include an M12x1.75 threaded stud with a 1.18-inch stud length, a 1.3-inch hub diameter, and an overall length of 5.3 inches. The black powder-coated finish provides corrosion resistance and a clean appearance. Installed by maintenance technicians, machine builders, and trade professionals, this handle suits applications where repeatable hand-tightening and quick adjustment are required.

This tension lever handle is intended for use on machine tools, fixtures, jigs, enclosures, and industrial equipment where M12x1.75 threaded mounting points are present. The adjustable lever allows the handle arm to be repositioned to avoid obstructions during operation, making it practical in confined or high-cycle assembly environments. It is suited for both light manufacturing and general-purpose mechanical clamping tasks in commercial and industrial settings.

Key Features

• M12x1.75 threaded stud mount with 1.18-inch stud length and 30 mm threaded engagement length
• Adjustable lever arm repositions to clear obstructions in tight installations
• Steel handle and stud construction to Grade 5.8 material specification
• Powder-coated finish on both handle and body components for durability
• Ball-end, straight 0-degree lever arm style for comfortable hand operation
• Compact knob diameter of 32 mm with 23 mm base diameter and 33 mm body diameter

Compatibility

Designed as a direct-mount replacement or new-installation clamping handle for machinery, fixtures, and equipment with M12x1.75 threaded mounting points requiring an adjustable tension lever style handle.

Installation Notes

Installation requires no special tooling beyond standard hand tightening against the threaded stud. Ensure the mating threaded bore is clean and free of debris before engagement. Confirm the lever arm is repositioned and locked before applying clamping load. Follow all applicable machinery safety lockout and tagout procedures before servicing or replacing handles on powered equipment.
