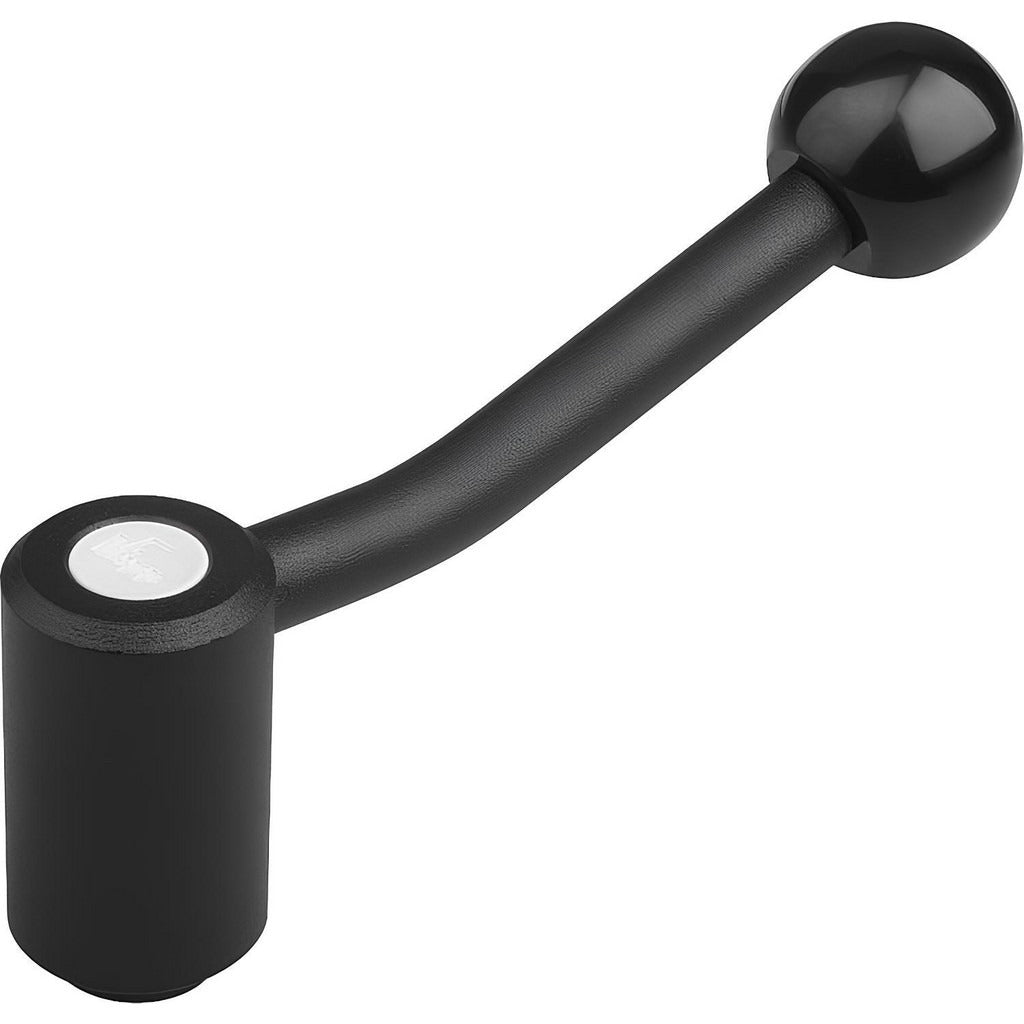

Kipp K0108.1A51X25 Tension Lever Handle 1/2-13 Steel

Product Description

The KIPP K0108.1A51X25 is an adjustable tension lever clamping handle with a threaded stud mount, designed for tool-free clamping and locking applications on industrial machinery, fixtures, and equipment. The handle arm extends 3.46 inches and terminates in a ball end, providing a positive grip during adjustment. The stud is 0.98 inches long with a 1/2-13 thread and is manufactured from Grade 5.8 steel. The body and components are powder coated black. Licensed HVAC, mechanical, and industrial maintenance technicians commonly install this type of handle as an OEM-style replacement or retrofit on positioning assemblies, guards, and adjustable mounts.

This clamping handle is suited for light-to-medium industrial and mechanical applications where fast, repeatable hand-tightening is required without tools. The 20-degree handle arm angle aids clearance in confined mounting areas. The 0.94-inch hub diameter and 0.94-inch body diameter accommodate standard panel and fixture mounting configurations. The knob diameter measures 0.98 inches. Applications include jigs, fixtures, machine guards, and adjustable mechanical assemblies across manufacturing, HVAC equipment framing, and general industrial maintenance environments.

Key Features

• 1/2-13 threaded stud mount for direct installation into tapped holes
• Adjustable tension lever allows repositionable locking without tools
• Ball end handle arm for positive grip and ergonomic operation
• 20-degree arm angle improves clearance in tight installation spaces
• Powder coated black finish on both handle and body components
• Grade 5.8 steel construction with plastic knob for corrosion and wear resistance

Compatibility

Designed as an OEM-style replacement or retrofit clamping handle for industrial fixtures, mechanical assemblies, and equipment requiring a 1/2-13 threaded stud mount with an adjustable tension lever.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped 1/2-13 hole in the mating component. Power down or de-energize any associated equipment before servicing or replacing clamping hardware on active machinery. Ensure the mating thread depth is sufficient to fully engage the 0.98-inch stud length before applying clamping load. Do not exceed the rated clamping force for the Grade 5.8 stud material.
