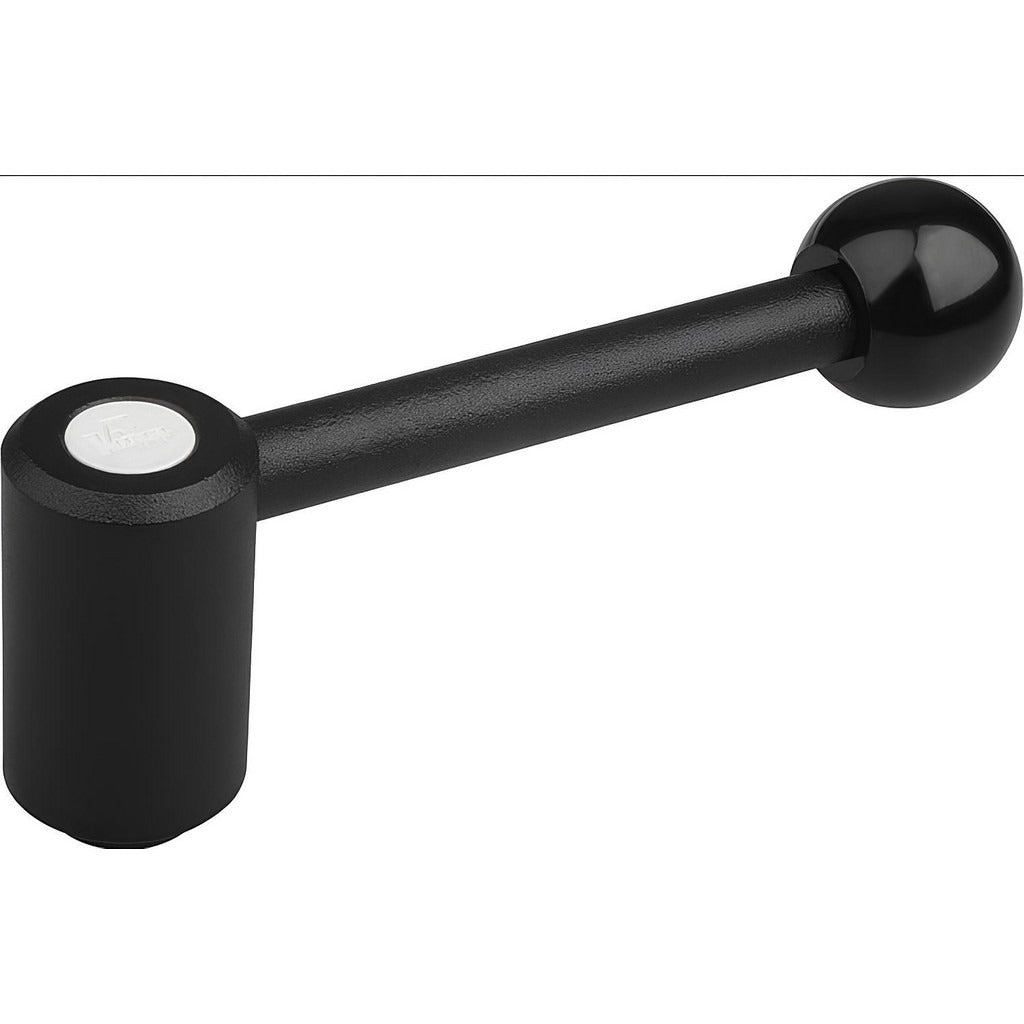

Kipp K0108.1102X20 Tension Lever Clamping Handle M10

Product Description

The KIPP K0108.1102X20 is an adjustable tension lever clamping handle designed for threaded stud mounting in industrial and mechanical fastening applications. The handle features an M10 x 1.50 threaded stud with a 0.78 inch stud length and an overall length of 3.62 inches. The body and stud are constructed from Grade 5.8 steel with a powder-coated finish in black. A plastic ball-end knob with a 25 mm diameter provides a positive grip during adjustment. This component is installed by machinists, maintenance technicians, and assembly professionals working with fixtures, jigs, machine guards, and equipment panels.

The K0108.1102X20 is suited for use in light to medium-duty clamping and positioning applications where tool-free lever adjustment is required. Typical installations include machine tool fixtures, enclosure latches, conveyor guarding, and adjustable equipment frames. The straight 0-degree handle arm style allows for consistent torque application in tight or open clearance environments. The 92 mm handle radius length provides adequate mechanical advantage for hand-tightening without tools.

Key Features

• M10 x 1.50 threaded stud connection for direct installation into standard metric threaded bores
• Grade 5.8 steel body and stud construction with powder-coated finish for corrosion and wear resistance
• Adjustable tension lever design allows repositioning of the handle arm for clearance in varied mounting orientations
• Ball-end plastic knob, 25 mm diameter, for comfortable hand grip during tightening
• Straight 0-degree handle arm style with 92 mm handle radius length for consistent leverage
• REACH Compliant and RoHS Compliant per listed standards

Compatibility

Designed as an OEM-style replacement or direct-fit component for applications requiring an M10 x 1.50 threaded stud clamping handle with a 0.94 inch hub diameter and 0.78 inch stud length.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped M10 x 1.50 bore by hand or with a wrench applied to the base flats. Ensure the mating thread bore is clean and free of debris before installation. Verify thread engagement depth does not exceed the 20 mm threaded length to avoid bottoming out. Disengage any moving or powered components before adjusting or repositioning the clamping handle in service.
