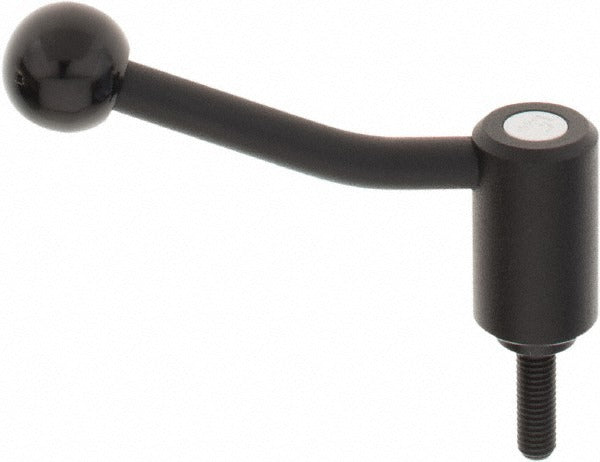

Kipp K0108.1081X25 Tension Lever Clamping Handle M8

Product Description

The KIPP K0108.1081X25 is an adjustable tension lever clamping handle designed for threaded stud mounting in industrial and mechanical assembly applications. Built from Grade 5.8 steel with a powder-coated black finish, this handle provides secure, tool-free clamping and positioning on M8 x 1.25 threaded components. It measures 3.46 inches in overall length and 1.95 inches in overall height, with a hub diameter of 0.94 inches and a stud length of 0.98 inches. The ball-end handle arm sits at a 20-degree angle, allowing controlled tension adjustment in confined or repetitive-use installations. Weight is 0.52 pounds.

This clamping handle is suited for use in machine tool setups, fixture and jig assemblies, equipment panels, and production line hardware where fast manual adjustment and reliable hold are required. It is appropriate for both light industrial and precision mechanical environments. The threaded stud connection allows direct engagement with standard M8 x 1.25 tapped holes. Installers in manufacturing, maintenance, and mechanical assembly trades will find this handle applicable across a wide range of positioning and clamping tasks.

Key Features

• Adjustable tension lever design allows repositionable clamping without tools
• Grade 5.8 steel construction with powder-coated finish for durability and corrosion resistance
• M8 x 1.25 threaded stud with 0.98 inch stud length for direct installation into tapped holes
• Ball-end handle arm at 20-degree angle for ergonomic grip and controlled actuation
• REACH and RoHS compliant for use in regulated industrial environments
• Knob diameter of 25 mm with plastic knob component for comfortable manual operation

Compatibility

Designed as a direct-fit replacement or new-install clamping handle for equipment and fixtures using standard M8 x 1.25 threaded stud connections.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. Ensure the mating tapped hole conforms to M8 x 1.25 thread specifications before installation. De-energize or lock out any equipment before installing or adjusting clamping handles on live machinery. Do not exceed the rated clamping force for the Grade 5.8 stud material.
