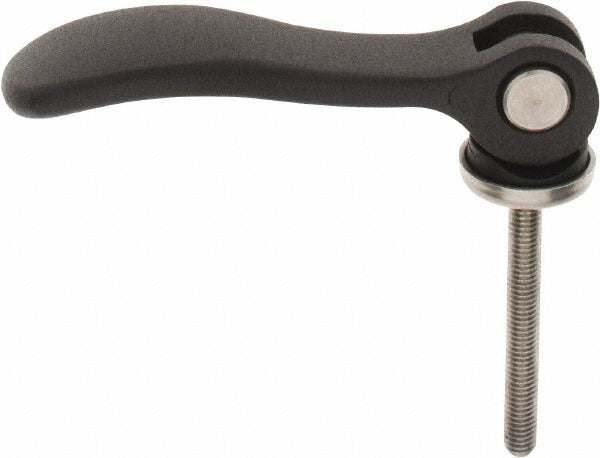

Kipp K0006.15111A1X40 Adjustable Clamping Handle 10-32

Product Description

The KIPP K0006.15111A1X40 is an adjustable cam lever clamping handle designed for tool-free clamping and positioning in industrial, mechanical, and trade equipment applications. The handle features a 10-32 threaded stud, a cast aluminum body with a black powder coated finish, and a stainless steel stud and washer for corrosion resistance. The hub diameter measures 0.59 inches, the handle length is 3.12 inches, and the overall height reaches 4.69 inches. This type of handle is typically installed by mechanical technicians, equipment assemblers, and maintenance professionals working on jigs, fixtures, enclosures, and adjustment mechanisms.

This adjustable cam lever handle is suited for use in light industrial equipment, machine tool fixtures, enclosure panels, and similar mechanical assemblies where quick hand-tightening and repositioning are required. The variable-angle handle arm allows the operator to orient the lever to a convenient locking position regardless of clamping depth. It is commonly used in both OEM manufacturing builds and field maintenance replacement applications across a range of equipment types.

Key Features

• Adjustable cam lever arm with variable handle arm angle for flexible positioning
• 10-32 threaded stud with 1.57-inch threaded length for secure mounting
• Cast aluminum handle body with black powder coated finish for durability
• Stainless steel threaded stud and washer components for corrosion resistance
• Compact hub diameter of 0.59 inches and body diameter of 0.71 inches
• Lightweight construction at 0.1 pounds

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for equipment and fixtures using a 10-32 threaded stud mount configuration.

Installation Notes

Installation is performed by mechanical technicians or maintenance personnel using standard hand tools. Before replacing or installing a clamping handle on powered equipment, ensure the machine is fully de-energized and locked out per applicable safety procedures. Thread engagement should be confirmed to be sufficient for the application load before putting the assembly into service. Do not overtighten the stud into the receiving thread; hand-snug plus a firm lever engagement is the intended clamping method for this style of handle.
