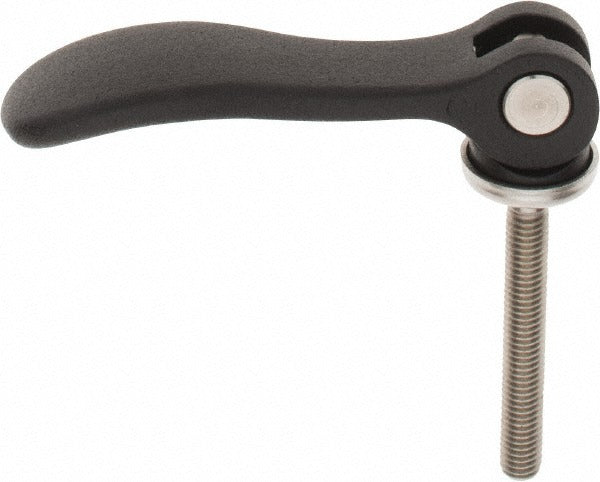

Kipp K0006.1511106X40 Adjustable Clamping Handle M6x1

Product Description

The KIPP K0006.1511106X40 is an adjustable cam lever clamping handle designed for threaded stud mounting applications in industrial and mechanical assemblies. The handle features a cast aluminum body with a black powder coat finish and a stainless steel threaded stud sized at M6x1. The hub diameter measures 0.59 inches and the stud length is 1.57 inches. The variable-angle handle arm allows the operator to reposition the lever to avoid obstructions during tightening, making it well suited for fixtures, jigs, machine guards, and similar clamping setups. Total handle length reaches 3.12 inches and overall height is approximately 4.69 inches.

This clamping handle is used in light industrial, tooling, and equipment assembly environments where repeated hand-tightening and release cycles are required. Typical applications include workholding fixtures, enclosure panels, access doors, and adjustable machine components. The M6x1 threaded stud interfaces directly with standard metric threaded receivers. The compact body height of 0.87 inches keeps the profile low in tight assemblies. Maintenance technicians, machine builders, and equipment fabricators are the primary installers of this component.

Key Features

• Adjustable cam lever arm with variable angle positioning to clear obstructions during operation
• Cast aluminum handle body with black powder coat finish for durability and corrosion resistance
• Stainless steel threaded stud and components for added strength at the fastening interface
• M6x1 thread size with 1.57 inch stud length for standard metric fastening applications
• 0.59 inch hub diameter and 0.87 inch handle height for compact, low-profile installation
• Modern handle arm style with bright-finished hinge pin and powder coated thrust washer

Compatibility

Designed as an OEM-style replacement or direct-fit component for assemblies using M6x1 threaded stud clamping handles with a cam lever actuation style.

Installation Notes

Installation is typically performed by machine builders, maintenance technicians, or equipment fabricators using standard hand tools. Ensure the mating threaded receiver is clean and free of damage before installing the stud. Do not exceed the hand-tight torque appropriate for M6 threaded connections in the base material. Verify the cam lever arm clears surrounding components throughout its full range of motion before placing the assembly into service.
