Kipp K0006.1511105X20 Adjustable Cam Lever Handle M5x0.8

Product Description

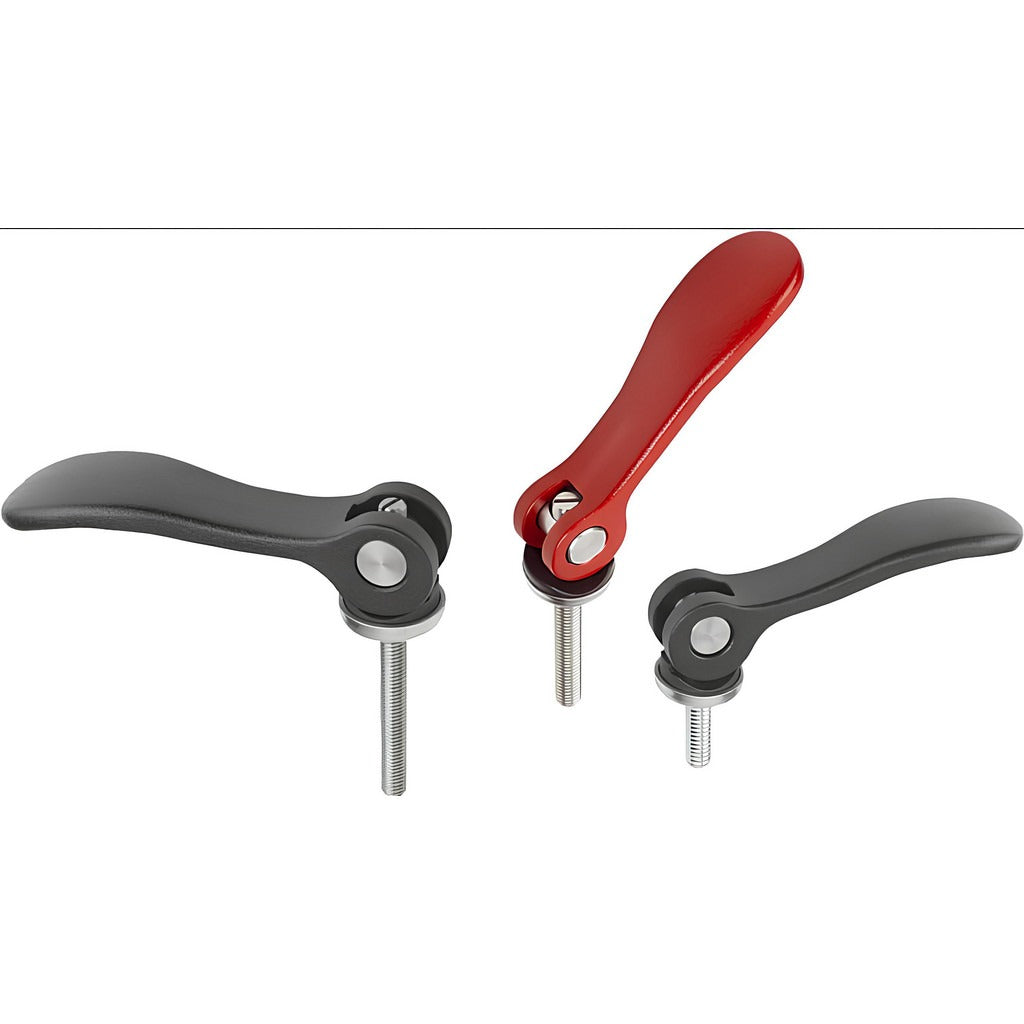

The KIPP K0006.1511105X20 is an adjustable cam lever clamping handle designed for secure, tool-free fastening in industrial and mechanical assembly applications. The handle features a cast aluminum body with a black powder coat finish and a stainless steel threaded stud sized at M5 x 0.8. The hub diameter measures 0.59 inches, the stud length is 0.78 inches, and the overall handle length reaches 3.12 inches. The variable-angle arm allows the operator to reposition the lever for unobstructed clamping in tight or awkward mounting configurations. Licensed millwrights, machine builders, and MRO technicians are the primary installers of this hardware type.

This clamping handle suits applications where repeated manual adjustment or quick-release fastening is required without tools. Typical use cases include jigs and fixtures, machine guards, enclosure panels, and equipment covers in light to medium industrial environments. The M5 x 0.8 threaded stud mounts directly into a tapped hole, making it a straightforward drop-in fastening solution for fabricated assemblies requiring frequent access or repositioning.

Key Features

• Adjustable cam lever arm with variable angle positioning for clearance in confined spaces
• Cast aluminum handle body with black powder coat finish for corrosion and wear resistance
• Stainless steel threaded stud and components for added durability and corrosion resistance
• M5 x 0.8 threaded stud with 0.78 inch stud length for direct installation into tapped holes
• Compact profile: 0.59 inch hub diameter, 0.87 inch handle height, 3.12 inch handle length
• Modern arm style suitable for professional-grade equipment and precision assemblies

Compatibility

Designed as an OEM-style threaded stud clamping handle for industrial assemblies requiring an M5 x 0.8 threaded mounting point and a compact cam lever fastening solution.

Installation Notes

Installation is performed by threading the stud directly into a matching M5 x 0.8 tapped hole in the target assembly. Ensure the mating threads are clean and free of debris before installation. No special tools are required for standard hand-tightening; follow any applicable machine-builder or fixture design specifications for torque or preload requirements. Verify the cam lever swing arc has sufficient clearance before finalizing the mounting position.
