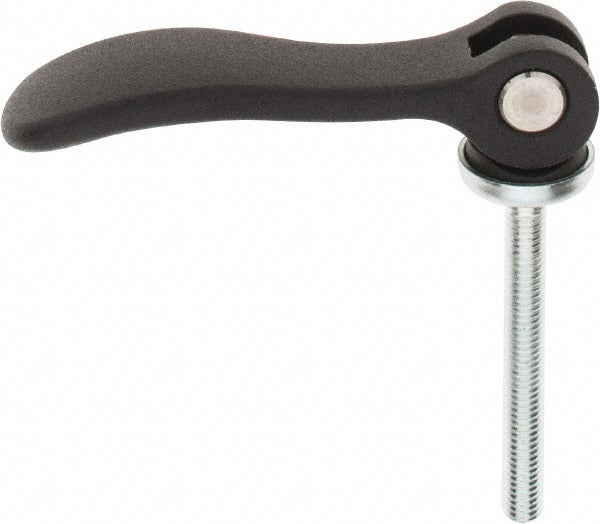

Kipp K0006.1501106X50 Adjustable Cam Lever Handle M5

Product Description

The KIPP K0006.1501106X50 is an adjustable cam lever clamping handle designed for industrial fastening and positioning applications. It features a cast aluminum handle body with a threaded steel stud, allowing operators to apply firm, repeatable clamping force with a variable-angle lever arm. The handle uses an M5 x 0.80 mm threaded stud measuring 1.96 inches in length and delivers a handle length of 3.12 inches with an overall height of 5.09 inches. The powder-coated black finish on the handle provides durability and a clean appearance. Maintenance technicians, machine builders, and equipment assemblers commonly install this style of handle on fixtures, jigs, enclosures, and adjustable mechanical assemblies.

This adjustable clamping handle suits light-duty industrial and mechanical applications where tool-free tightening and quick repositioning are required. Typical installations include machine guarding panels, fixture plates, equipment covers, and adjustable mounting assemblies. The cam lever design allows the operator to lock or release clamping force without a wrench, making it practical in production and field service environments. The M5 threaded stud connects to standard M5 tapped holes in aluminum or steel components. No specific model compatibility is published by the supplier for this part.

Key Features

• Adjustable cam lever arm with variable handle arm angle for flexible clamping positions
• Cast aluminum handle body with powder-coated black finish for corrosion resistance
• Steel threaded stud and components with passivated finish on stud and washer
• M5 x 0.80 mm thread size compatible with standard M5 tapped holes
• Compliant with REACH and RoHS requirements; material specification EN AC-46200
• Compact hub diameter of 0.59 inches with a hub height of 0.57 inches

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial equipment, jigs, fixtures, and adjustable assemblies that use M5 x 0.80 threaded stud cam lever handles.

Installation Notes

Installation is performed by threading the M5 stud into a pre-tapped hole in the mating component; no special tools are required for standard hand-tightening applications. Ensure the mating thread is clean and undamaged before installation to avoid cross-threading the steel stud. De-energize or lock out any equipment before servicing or replacing clamping handles on active machinery. Follow applicable machinery safety standards and equipment manufacturer guidelines during installation.
