Kipp K0005.25011A4X25 Adjustable Clamping Handle 3/8-16

Product Description

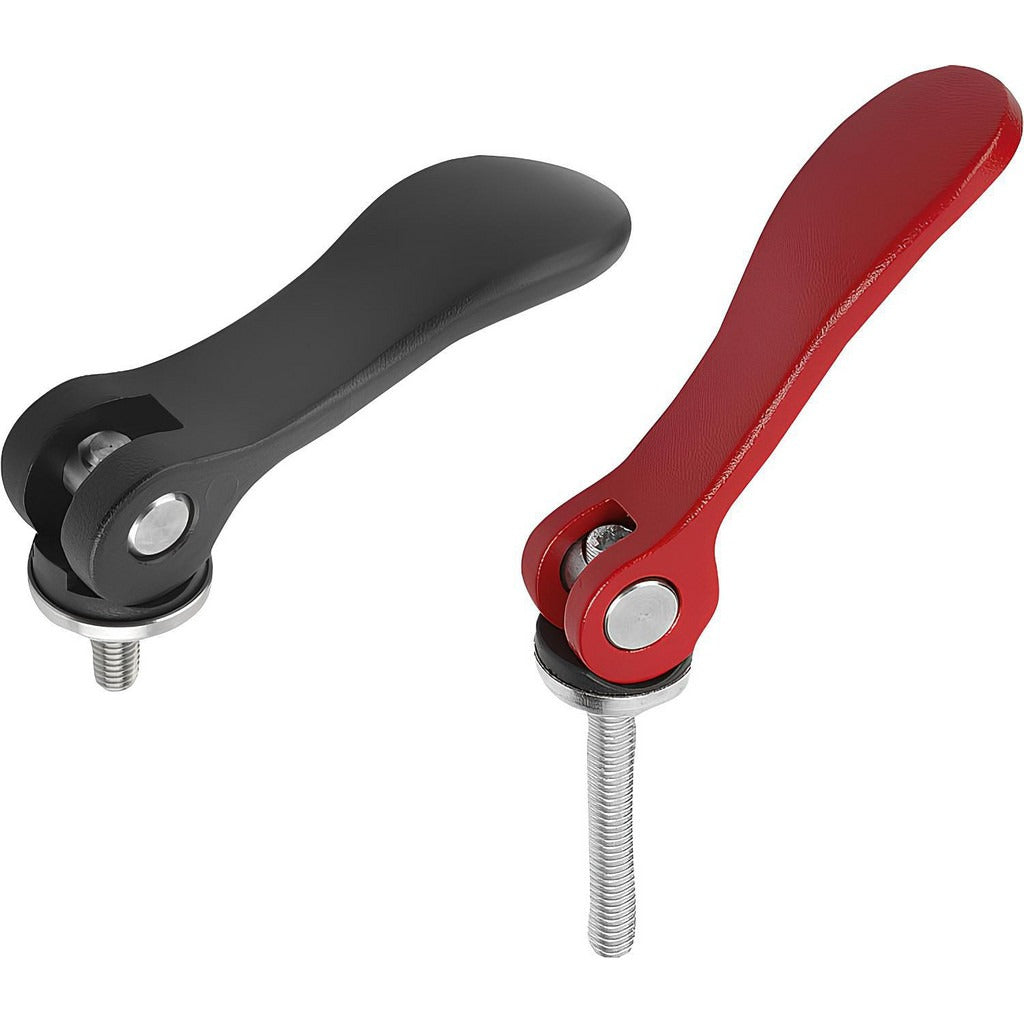

The KIPP K0005.25011A4X25 is an adjustable cam lever clamping handle with a threaded stud mount, designed for securing and releasing tooling, fixtures, jigs, and machine components in industrial and manufacturing environments. The handle features a cast aluminum arm with a powder-coated black finish and a steel threaded stud in a 3/8-16 thread size. The stud length measures 0.98 inches, and the overall handle length is 4.25 inches. The cam lever design allows variable arm angle adjustment, enabling fast hand-tightening and loosening without tools. Licensed machinists, tool and die technicians, and equipment maintenance personnel are the typical installers.

This clamping handle is suited for use on machine tools, workholding fixtures, enclosure latches, and positioning equipment across light industrial and precision manufacturing settings. The threaded stud connection allows direct installation into tapped holes or mating hardware. The adjustable arm angle accommodates varying access angles on tight or crowded fixture assemblies, making it practical for repetitive setups where quick clamping and release are required. Applications span CNC fixturing, press tooling setups, and general-purpose machine guarding.

Key Features

• Adjustable cam lever arm with variable angle positioning for flexible hand access
• Cast aluminum handle arm with black powder-coat finish for corrosion resistance and durability
• 3/8-16 threaded steel stud, 0.98 inches long, passivated for corrosion protection
• 1.06-inch hub diameter with a body height of 1.12 inches for compact clamping profile
• REACH Compliant and RoHS Compliant per EN AC-46200 material specification
• Hinge pin with bright finish; thrust washer with powder-coat finish for smooth cam action

Compatibility

Designed as a direct-thread replacement or new-installation clamping handle for fixtures and equipment with 3/8-16 tapped mounting points. Verify stud length and hub diameter clearances against your specific fixture design before installation.

Installation Notes

Installation requires a tapped 3/8-16 hole in the mating component. Power down or de-energize any machine or fixture before installing or adjusting clamping hardware. Use standard hand tools to thread the stud into the mounting hole to the appropriate engagement depth; do not over-torque the stud. Confirm the cam lever arm angle is set to allow full actuation travel before putting the assembly into service.
