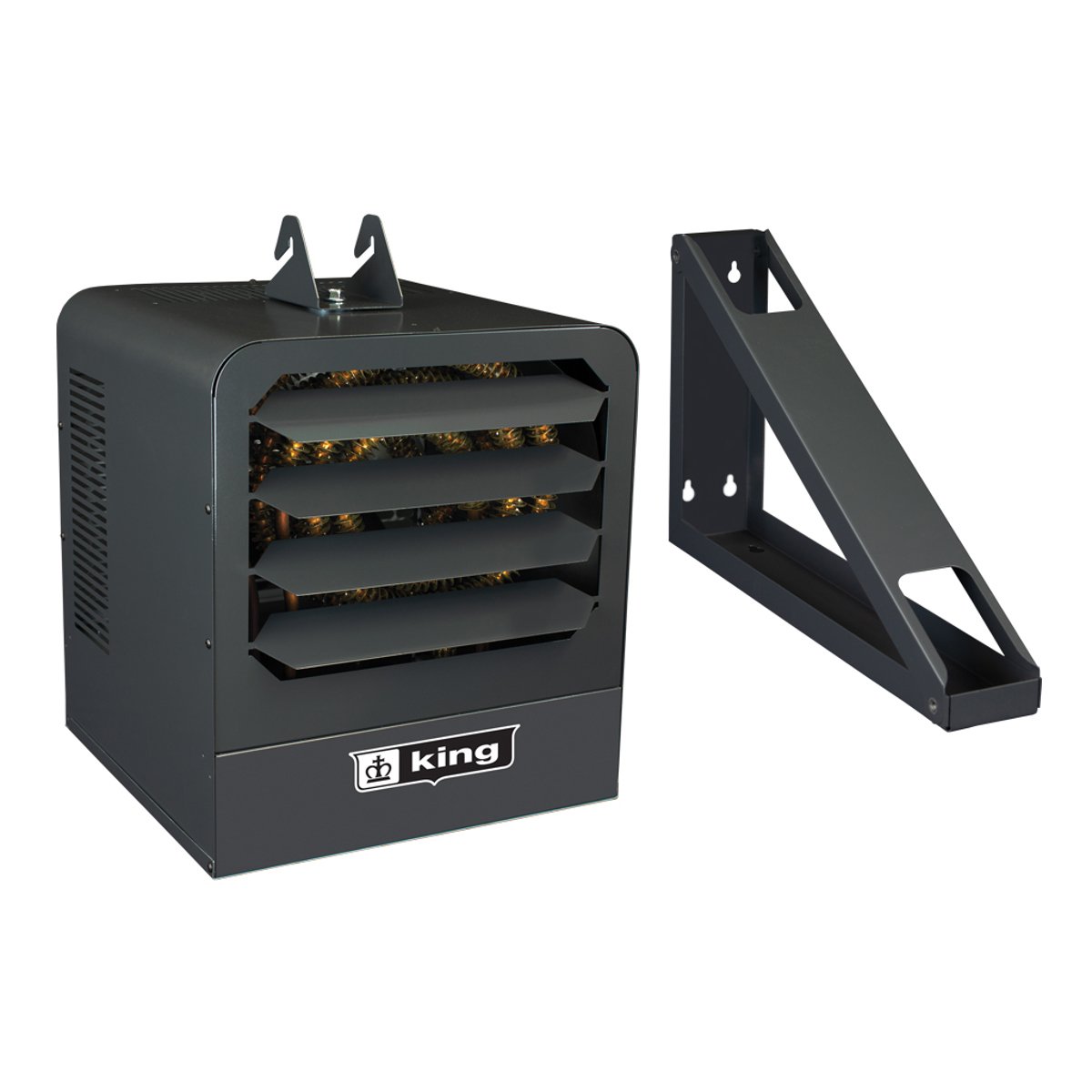

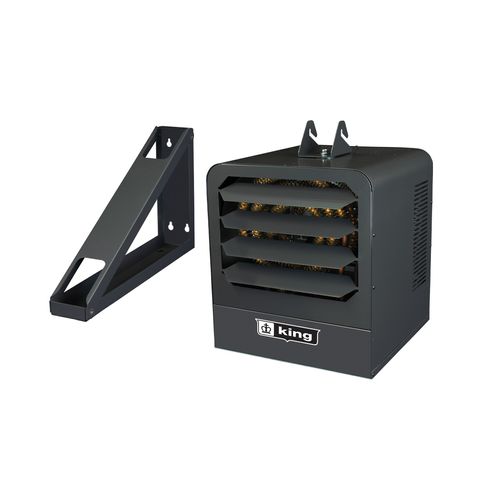

King KB2407-3MP-T-B2 KB Unit Heater 240V 7.5kW 1-3 Ph w/SP Stat & Bracket

Product Description

The KING KB2407-3MP-T-B2 KB unit heater operates at 240V and 7.5KW, supporting 1-3 phase power with a single pole thermostat and bracket. Designed for primary or supplemental heat in large areas, it features spiral finned steel elements and high CFM for even air distribution. It is suitable for high-rise buildings, stores, warehouses and garages.

• Adjustable Louvers to Direct Air
• Built-In Thermostat
• High Mass Steel Fin Heat Exchanger

Product Highlights

This unit heater ensures efficient heating with a dynamically balanced fan blade and in-built thermostat for years of service. Includes a universal wall/ceiling bracket for simple installation.

Product Information

Standard Information

• Brand: KING
• Manufacturer Part Number: KB2407-3MP-T-B2
• Country of Origin: USA

Technical Specifications

• Catalog Number: KB2407-3MP-T-B2
• Manufacturer: King Electric
• Brand: King
• Country of Origin: United States
• UPC: 093319134603
• Voltage Rating: 240V
• Wattage: 7500
• Product Type: Unit Heater
• BTU Output: 25600
• Phase: 1 or 3 Phase
• Air Throw: 20 Feet
• Air Flow: 600 CFM
• Temperature Range: 40 to 100 Degrees F
• Built In Thermostat? (Y/N): Yes
• Mounting Bracket Included (Y/N): Yes
• Type of Product: Horizontal Discharge Unit Heaters
• Heater Type: Horizontal Discharge Unit Heaters
• Control Voltage: 240 Volt
• Depth of Product: 18 Inch
• Width of Product: 15 Inch
• Height of Product: 16.5 Inch
• Finish: Baked Enamel
• Air Flow (CFM): 600
• Certificate: cUL/UL Listed
• Electrical Phase: 1-3 Ph
• Material: Steel
• Maximum Amperage: 31.2 Amp
• Maximum Voltage: 208V/240V
• Wattage Output: 7.5kW
