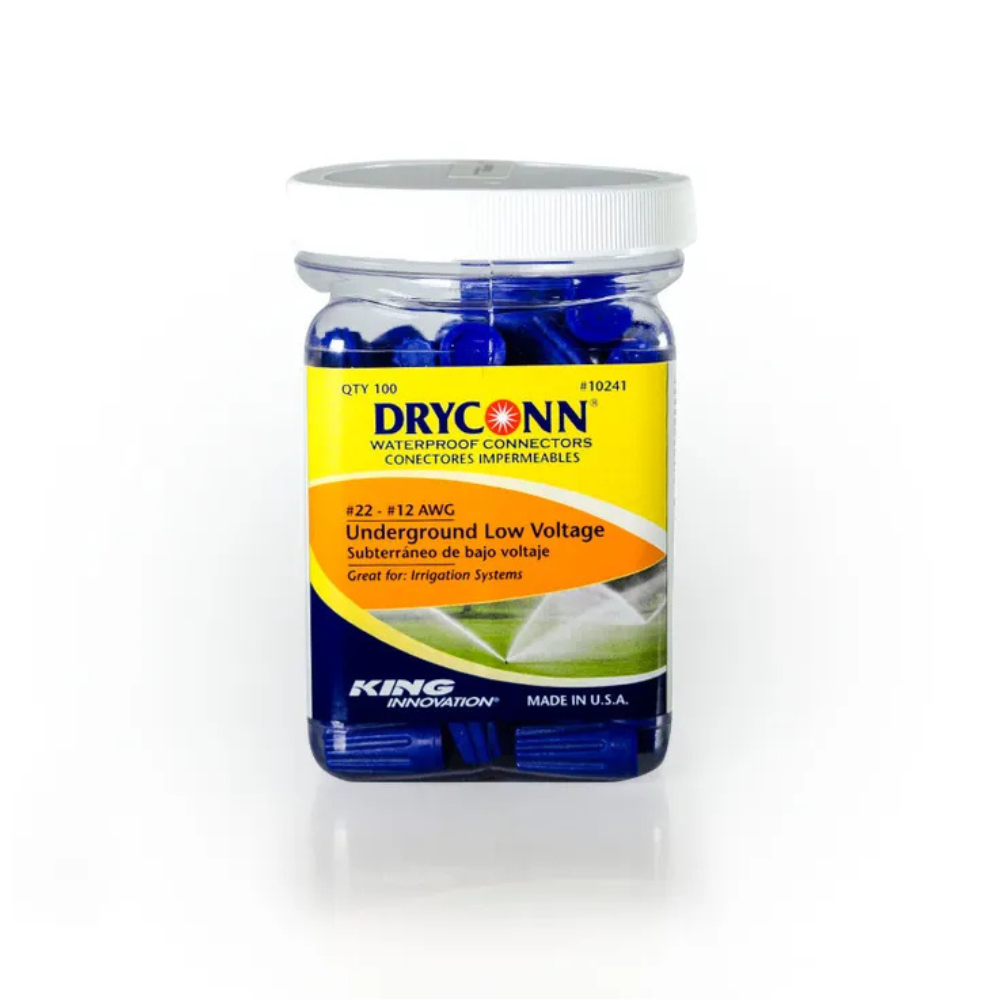

King Innovation 10241 Dryconn Wire Connector (100-Piece Canister)

Product Description

The KING INNOVATION 10241 Dryconn wire connectors are perfect for making low voltage irrigation splices. Pre-filled with a dielectric silicone sealant that never hardens, these connectors ensure a splice that is protected from any harsh outdoor elements. Designed and manufactured in the USA.

• Low voltage (30V max) suitable for use in damp, wet and direct bury applications
• Waterproof and corrosion proof
• UL 486G listed

Product Highlights

Dryconn wire connectors are pre-filled with dielectric silicone sealant, waterproof, corrosion proof, and UL 486G listed. Suitable for low voltage, damp, wet, and direct bury applications.

Product Information

Standard Information

• Brand: KING INNOVATION
• Manufacturer Part Number: 10241
• Country of Origin: USA

Technical Specifications

• Brand: King Innovation
• Each in Package Height (in): 5
• Each in Package Width (in): 3
• Each in Package Length/Depth (in): 3
• Each in Package Weight (lbs): 0.818
• Inner Pack Weight (lbs): 4.92
• Piece Count: 100 Piece Canister
• Wire Gauge: Min #22|Max #12
• Voltage: Low voltage (30V max) suitable for use in damp, wet and direct bury applications
• UL Listed: 600V for dry, wet or above/below grade applications when used in an enclosure
• Direct Bury: For use in Direct Bury applications when operating at 30V or less
• Wire Type: For use with solid & stranded wire
• Waterproof: Waterproof & corrosion proof
• Installation: One-step installation saves time & money
• Pre-twisting: No pre-twisting required
• Sealant: Pre-filled with dielectric silicone sealant that never hardens
• Country of Manufacture: Made in USA
• Connector Size: 17/32 in. x 15/16 in.
• Wire Range: Min #22/Max #12
• Temperature Rating: 221°F (105°C)
• Silicone Sealant: -45°F to 400°F
• Connector Type: Waterproof
• Contact Material: Alloy Steel
• Insulation Material: silicone
• Terminal: Butt Terminal
• Maximum Voltage: 600 V
• Material Type: Alloy Steel
• Specification Met: Ul486c
• Product Series: DRYCONN
• Family Series: King Innovation Terminals, Dryconn Series
• Description: DryConn Connector, 100/JAR, Blue/Blue Low Voltage (Silicone based sealant), Waterproof
• Maximum Temperature: 221 °F
• Copper to Copper: Copper to Copper
• Style: Standard
• Package Type: Canister
• Special Properties: Water Resistant
• Direct Burial: Yes
• Strain Relief: No
• Maximum Wire Capacity: (3) #12
• Wire Size Range: 20-12 AWG
• Approvals: cUL, UL
• Net Weight: 0.005 lbs
• Gross Weight: 0.765 lbs
• Max Voltage: 600V Building, 1000V Signs or Luminaries
• Temperature Range: -45 - 400°F
• Size: Small
