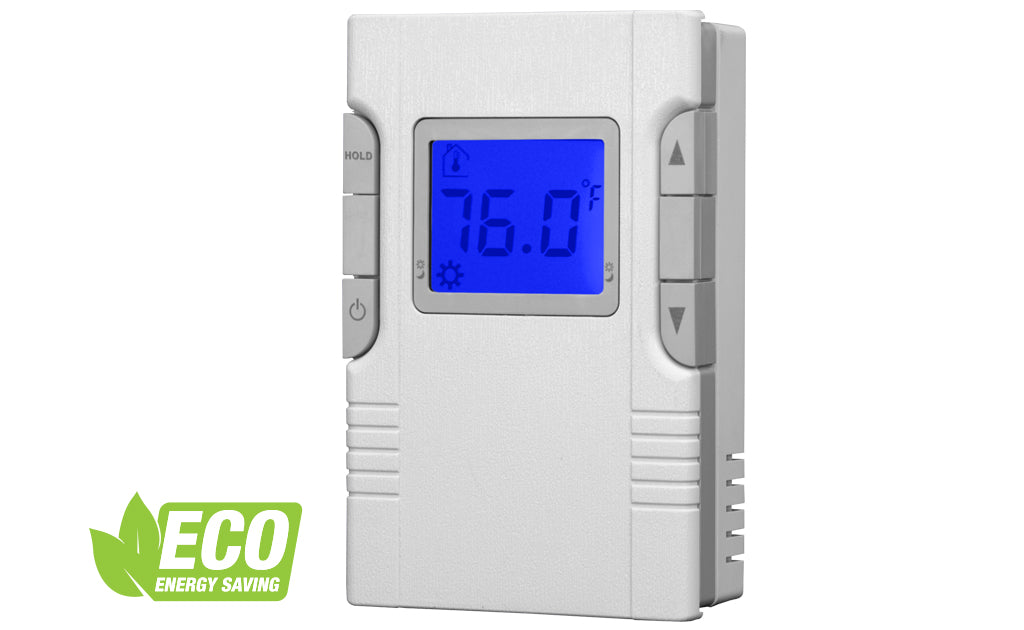

King Electric WR230-B-ND Window Watcher Non-Programmable Thermostat

Product Description

The King Electric WR230-B-ND is a non-programmable thermostat for efficient temperature control in residential and commercial settings. It operates on 208V or 240V, making it versatile for various installations.

• Temperature selection with easy up and down control.

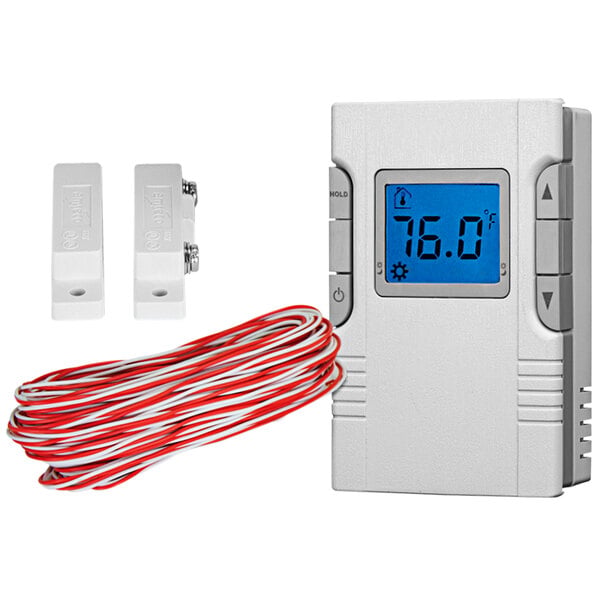

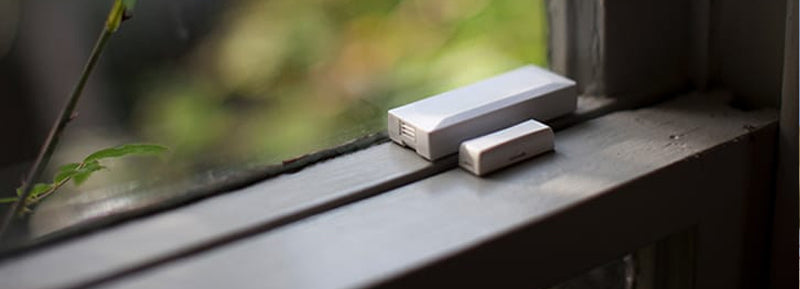

• Automatically sets back to forty degrees Fahrenheit when a window is open.

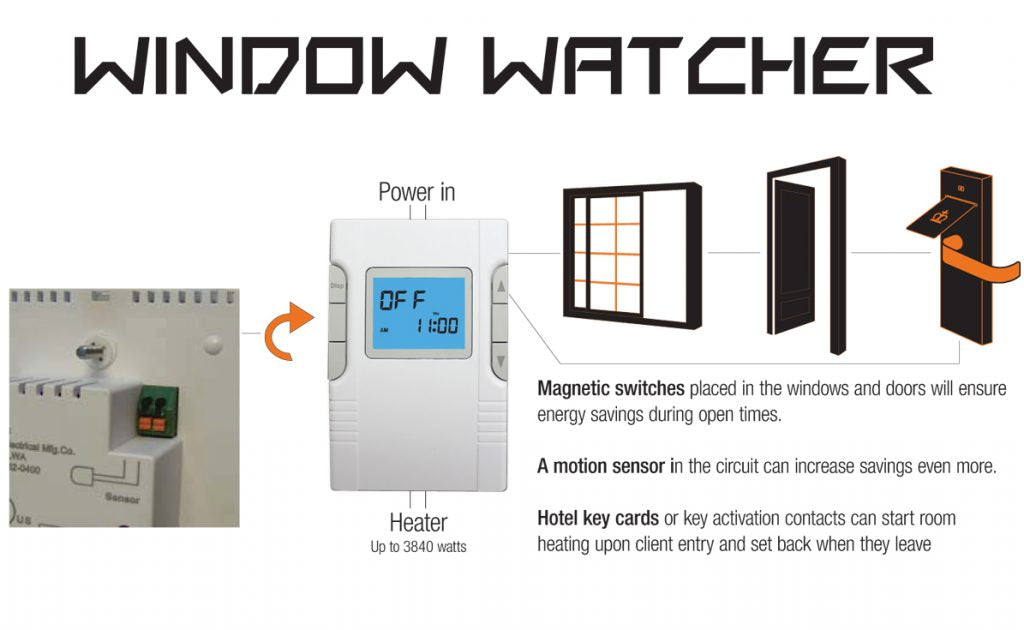

• Includes remote-controlled setback and occupancy sensing features.

Product Highlights

The WR230-B-ND helps limit energy expenses while keeping spaces comfortable. This thermostat features electronic sensing for accurate temperature management.

Product Information

Standard Information

• Part Number: WR230-B-ND
• Type: Non-Programmable Electronic

Technical Specifications

• Voltage: 208/240V
• Amperage: 16 Amps
• Wattage: 3320W/3840W
• Temperature Range: Forty to seventy-five degrees Fahrenheit (four to twenty-four degrees Celsius)
• Relay Rating: 16 Amps Resistive or Inductive
• Power Supply: 120 or 208/240 Volts
• Power Failure Restart: Occupant's Set Point
• Remote-Controlled Set Back: Yes (Volt-Free)
• Occupancy Sensing: 1 Hour Delay
• Illumination: Seattle Blue, on Touch of Key
• Electronic Sensing: With Thermistor For Accurate Temperature Control (±1.9°F)
• Control Type: Digital
• Product Dimensions: 5.25 inches X 3.38 inches X 1.13 inches
• Weight: 0.86 lb
• Plug Type: Hardwire
• Features: Backlight
• Maximum Temperature: 75 degrees F
• Minimum Temperature: 40 degrees F
