King Electric LPW2740T-S2-WD-R Lpw Series 2 Comfortcraft Wall Heater 4000W Retail Packaging

Product Description

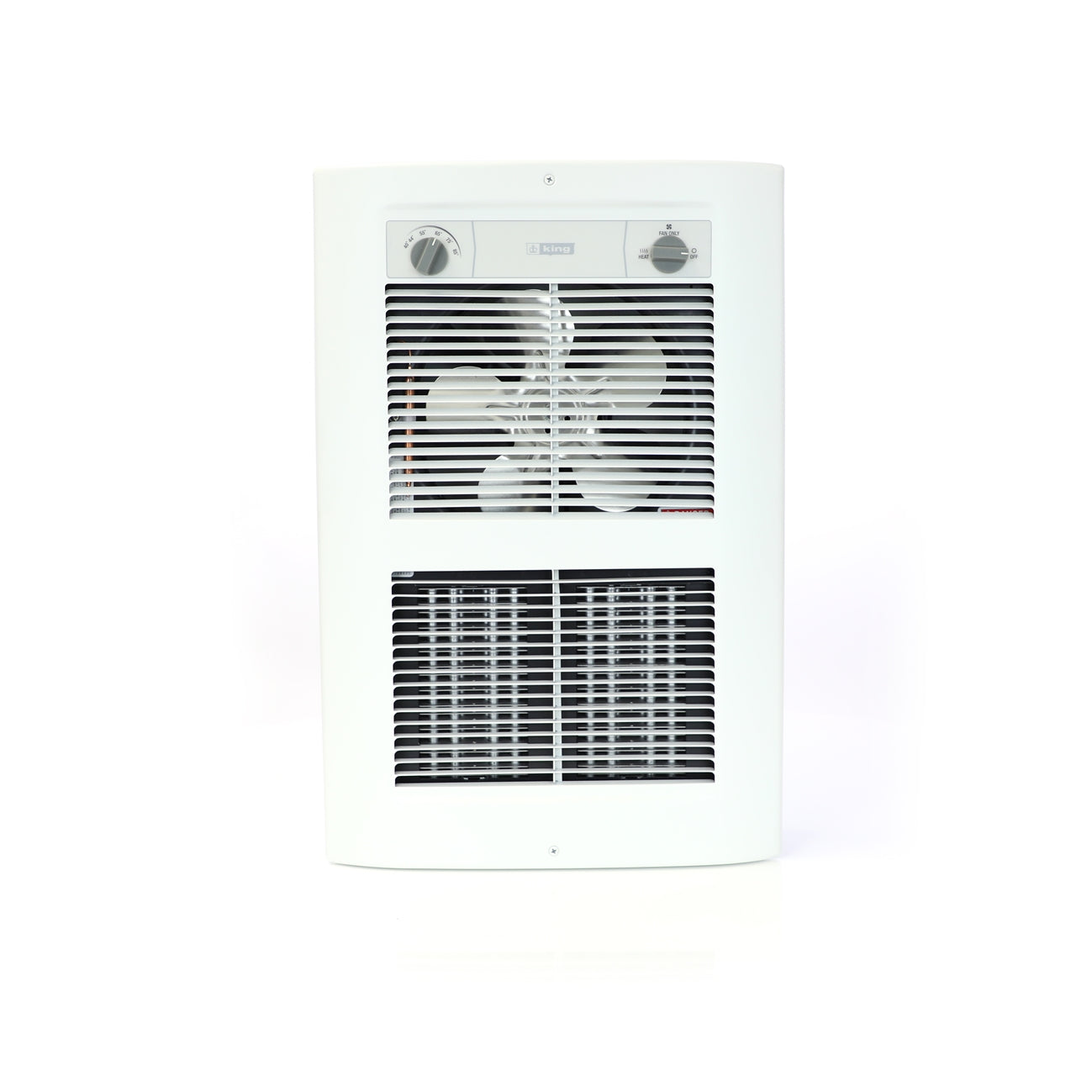

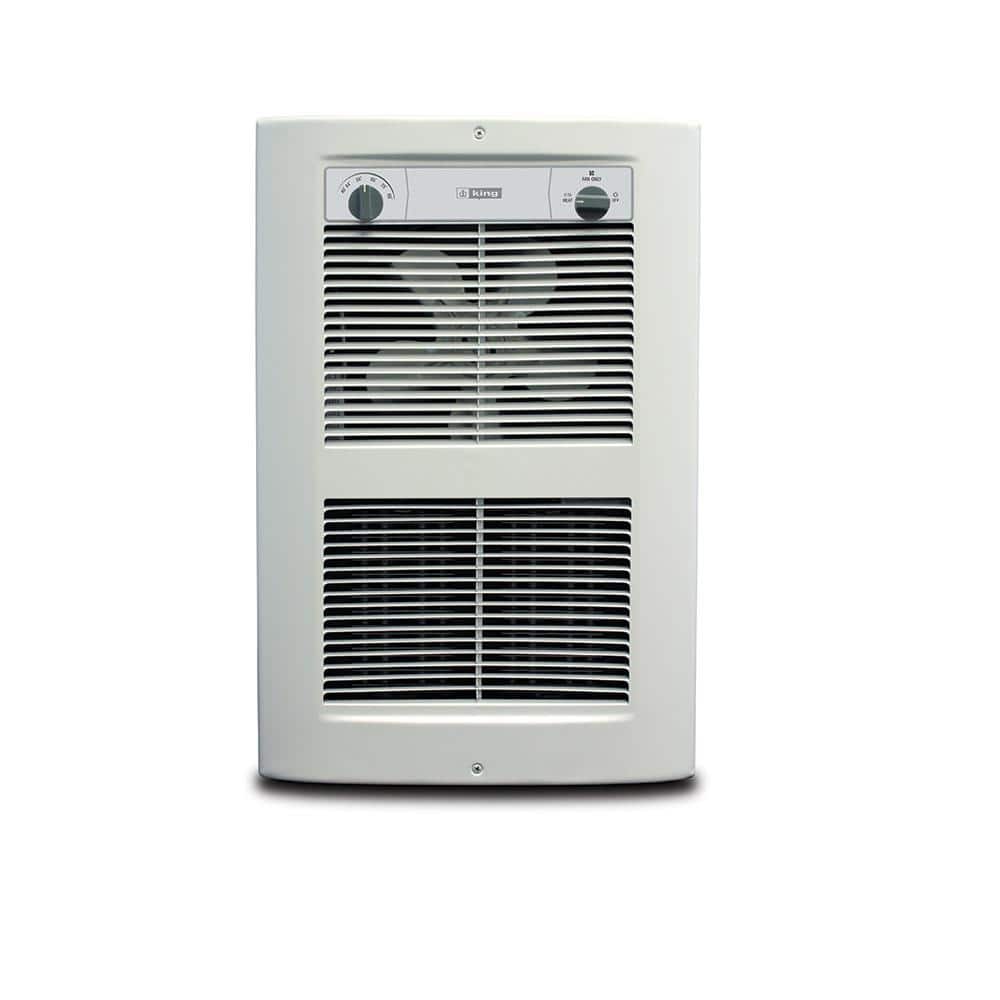

The KING ELECTRIC LPW2740T-S2-WD-R wall heater features a sleek, modern architectural design. This ComfortCraft heater offers higher output, suitable for large residential and commercial applications. Its exclusive dual Pic-A-Watt steel fin elements allow selection from a range of wattage options up to 4500W, tailoring heating to specific area requirements. A built-in thermostat ensures accurate temperature selection. It includes a 3-position Heat/Fan/Off Switch and a fan delay for energy efficiency and prolonged heater life.

• Modern architectural design with higher output for large residential and commercial spaces.
• Dual Pic-A-Watt steel fin elements allow customizable wattage options up to 4500W.
• Integrated 3-position Heat/Fan/Off Switch, fan delay, and built-in thermostat for efficient operation.

Product Highlights

This wall heater provides refined comfort with patented Smart Limit Protection and is proudly made in the USA.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: LPW2740T-S2-WD-R
• Country of Origin: USA

Technical Specifications

• Brand: King Electric
• MPN: LPW2740T-S2-WD-R
• Input Voltage: 277V
• Wattage: 2000/3000/4000 Watt
• Amperage: 14.44 Amps
• Color: White Dove
• Switch Type: 3-position switch (Heat/Fan Only/Off-Disconnect Switch) provides heating and summer fan-only operation. The DPST off switch provides a “positive off” that disconnects all ungrounded conductors.
• Heating Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire, embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to eight (8) possible wattage configurations available for selection during field installation.
• Thermostat: 1-Pole built-in thermostat 45-80°F operating range.
• Motor Type: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
• Protection: King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
• Special Feature: Energy Efficient, Fast Heating, Programmable Thermostat
• Form Factor: Wall-Mount
• Usage Environment: Indoor
• Heating Method: Convection
• Recommended Use: Home
• Mounting Type: Wall Mount
• Room Type: Bedroom, Home Office, Study Room
• Heating Coverage: 400 square feet
• Fuel Type: Electric
• Number of Speeds: 2
• Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM. 15 ft Air Throw.
• Wall Can: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4”clearance to floors and 6”to sidewalls. Zero clearance to insulation in the wall. Recommended 10” clearance to floors and 16” to sidewalls.
• Grill: 20 gauge steel finished in a gloss white, powder-coated paint.
• Options: Retrofit grill, and surface wall-box.
• Certifications: cULus
• Phase: 1 Phase
• Plug Type: Hardwired
• Finish: Powder Coat
• Back Box Dimensions: Height: 20.5625 Inch, Width: 11.5625 Inch, Depth: 3.8125 Inch
• Grille Dimensions: Height: 21.813 Inch, Width: 14.5625 Inch, Depth: 1.5 Inch
• Heater Type: Residential/Commercial Wall Heaters
• Series: LPW ComfortCraft
• Material: Steel
• Heating Capacity: 13648 BTUs
• Remote Control: No
• Wi-Fi Enabled: No
• Timer Function: No
