King Electric LPW2045-ECO-WD-R LPW Eco 208V 4500W Retail Packaging

Product Description

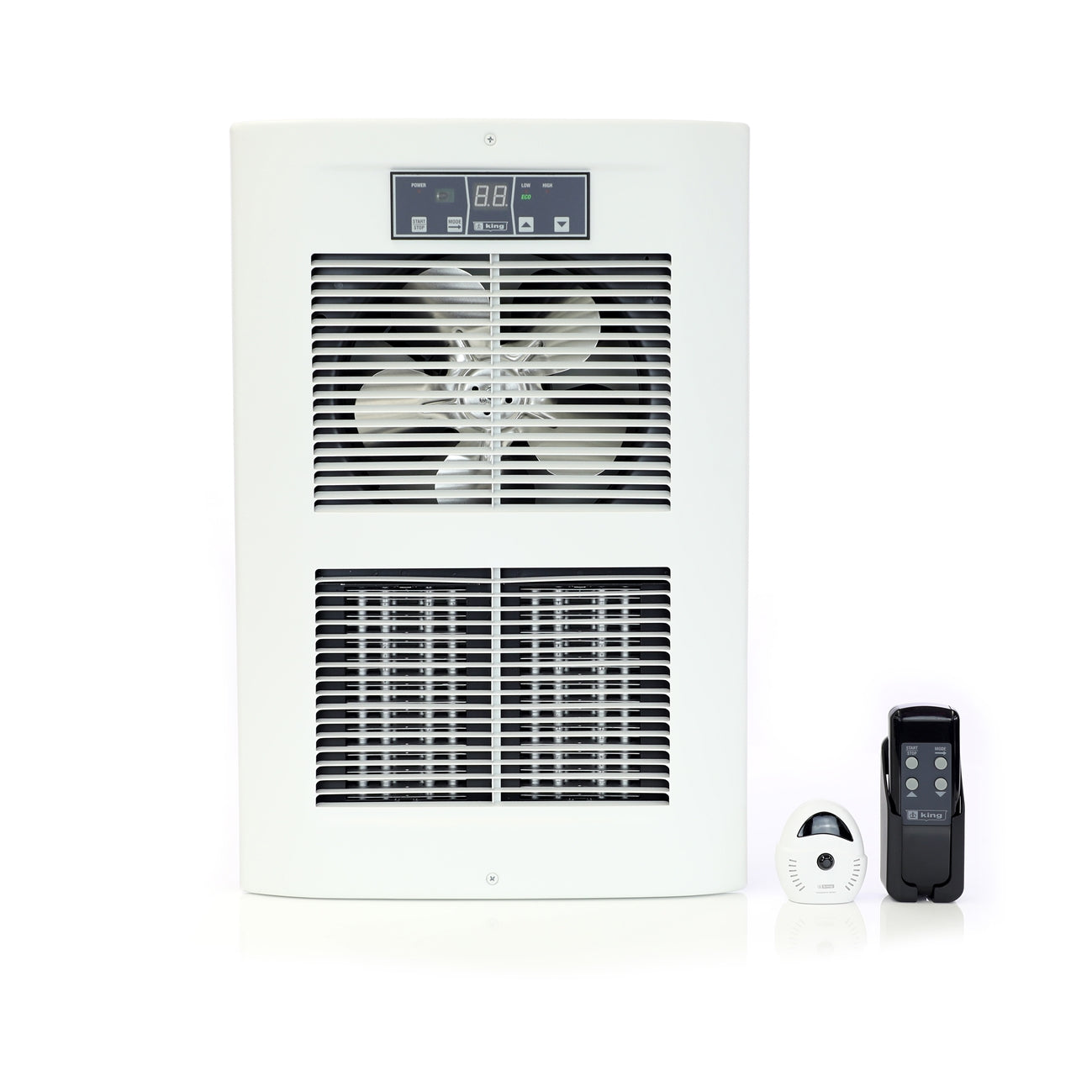

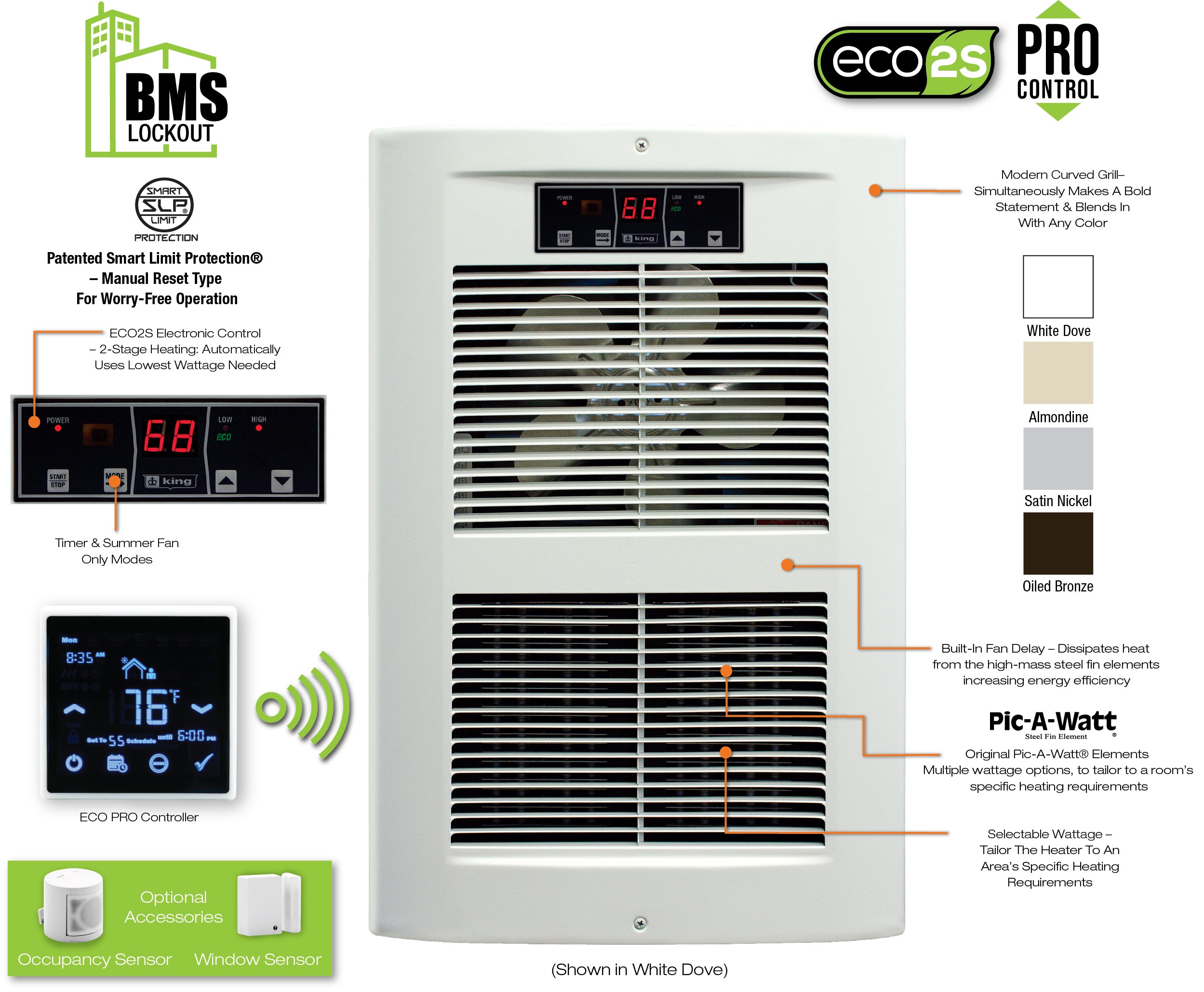

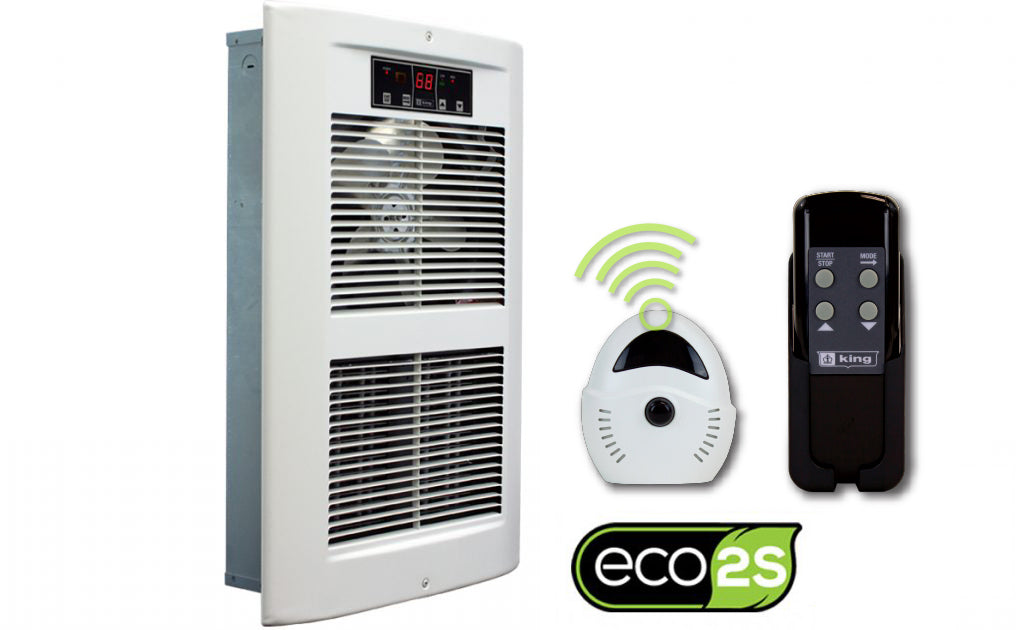

The KING ELECTRIC LPW2045-ECO-WD-R LPW Eco is a 208V, 4500W wall heater with retail packaging. The LPW ECO2S delivers energy efficiency with automatic 2-stage heating, using the lowest wattage needed. It includes a remote temperature sensor for comfort and features fan only and timer modes. It is an ideal choice for both residential and commercial applications.

• Smart ECO2S Energy-Saving Design
• 2-Stage Heating: Automatically Uses Lowest Wattage Needed
• Thermostat Temperature Range: 40℉ to 95℉

Product Highlights

This wall heater features 2-stage heating, a remote temperature sensor, and multiple modes for optimal comfort and energy savings.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: LPW2045-ECO-WD-R
• Country of Origin: USA

Technical Specifications

• Volts: 208
• Watts: 4500
• Amps: 21.6
• CFM: 185
• Brand: KING
• Special Feature: Overheat Protection, Remote Control
• Power Source: Electric
• Heating Method: Forced Air
• Mounting Type: Wall Mount
• Room Type: Bedroom, Home Office, Study Room
• Heating Element: Radiant
• Heat Output: 4500 Watts
• Thermostat Temperature Range: 40℉ to 95℉
• Motor: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
• Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM. 15 ft Air Throw.

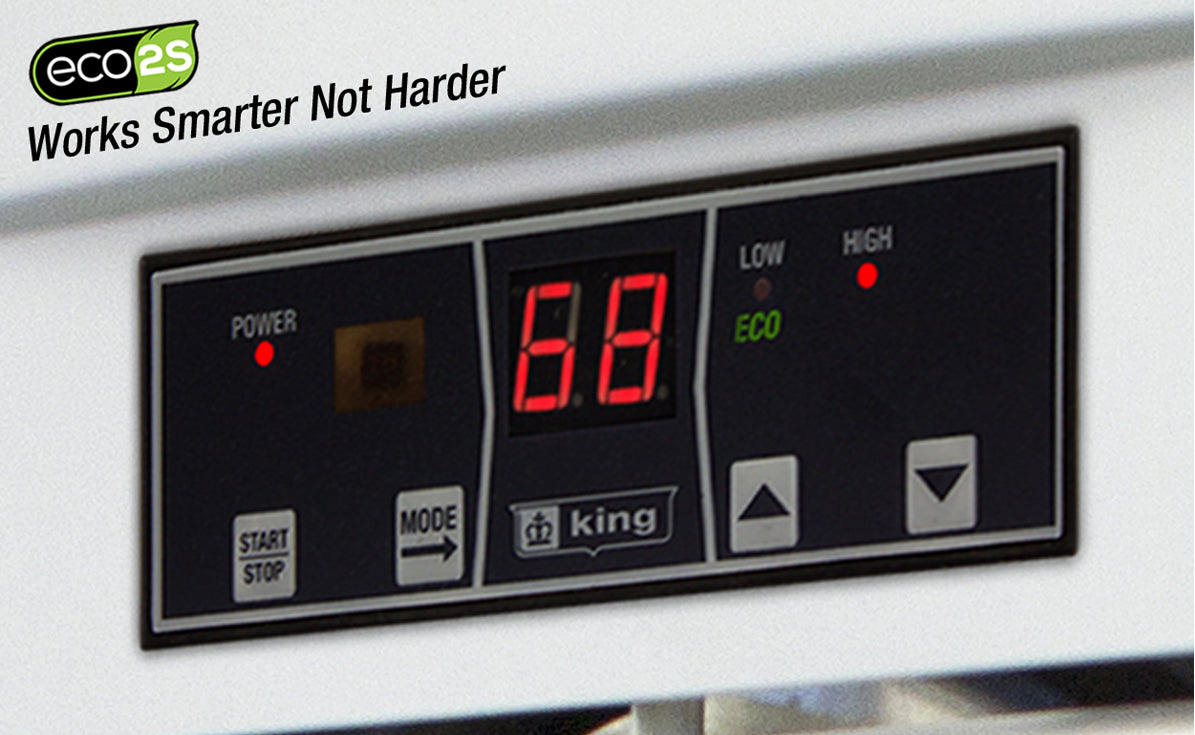

• ECO2S Electronic Thermostat Control: Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters. The control voltage is equal to the line voltage.
• Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire, embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to six (6) possible wattage configurations available for selection during field installation.
• Wall Cans: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4”clearance to floors and 6” to sidewalls. Zero clearance to insulation in the wall. Recommended 10” clearance to floors and 16” to sidewalls.
• Grill: The grill shall be a louvered, one-piece curved front design with rounded edges on all four sides. 20 gauge steel finished in a gloss white, powder-coated paint.
• Approvals: cULus (E41422)
• BTU: 15,355
• Phase: 1 Phase
• Voltage: 208
• Maximum Amperage: 21.6 Amp
• Maximum Voltage: 208V
• Wattage: 4500W
• Series: LPW ECO2S
• Material: Steel
• Type: Wall Heater
• Input Wattage: 4500W
• Rated Voltage: 208V
• Height: 21.8125 in.
• Depth: 4 in.
• Width: 14.5625 in.
