King Electric KFUH4860-3-2S3-ECM KFUH Dbl 480V 60Kw 3-Ph 2X 12Hp Ecm Motor Two Stage

Product Description

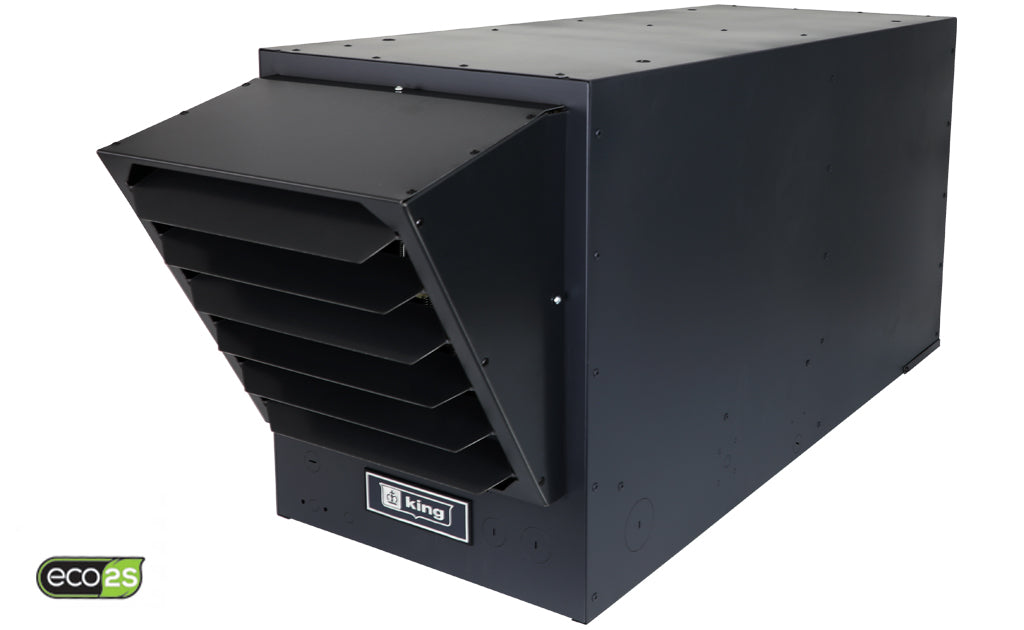

The King Electric KFUH4860-3-2S3-ECM is a KFUH double 480V, 60Kw, 3-Ph unit with 2X 12Hp ECM motors and two stages. This unit heater is suited for high ceiling applications such as warehouses and parking garages. It features welded mounting channels for angled installation and can be mounted vertically or horizontally. The unit has a 5-speed high capacity motor and blower.

• Double Unit with 204,780 BTU/H
• 2-Stage Heating: Stage 1: 30kW, Stage 2: 30kW
• Energy efficient ECM motor

Product Highlights

This King Electric unit heater features a heavy-duty open coil element, direct drive air over type motor, and dual inlet industrial blower. It is constructed with 22 gauge steel and includes quiet switching relays and a replaceable intake filter.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KFUH4860-3-2S3-ECM
• Country of Origin: USA

Technical Specifications

• Part Number: KFUH4860-3-2S3-ECM
• Certificate: cUL/UL Listed
• Color / Finish: Black
• Electrical Phase: 3 Ph
• Material: Steel
• Maximum Amperage: 72 Amp
• Maximum Voltage: 480V
• Power: 204,780 BTU/H
• Wattage: 60000W
• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• Heating BTUs: 204800
• kW: 60
• CFMs: 3184 - 4284
• Discharge Air Temperature Rise (°F): 44 - 60
• Air Throw (ft.): 110
• Blower: Built-In
• Remote: Connections for 24V Remote Thermostat
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• Max. Mounting Height (ft.): 12' (Horizontal Installation)
• To Side Wall (in.): 6"
• Width (in.): 32
• Depth (in.): 37.5
• Height (in.): 20
• Phase: 3
• Amps: 72.2
• Energy Efficient ECM Motor: Yes

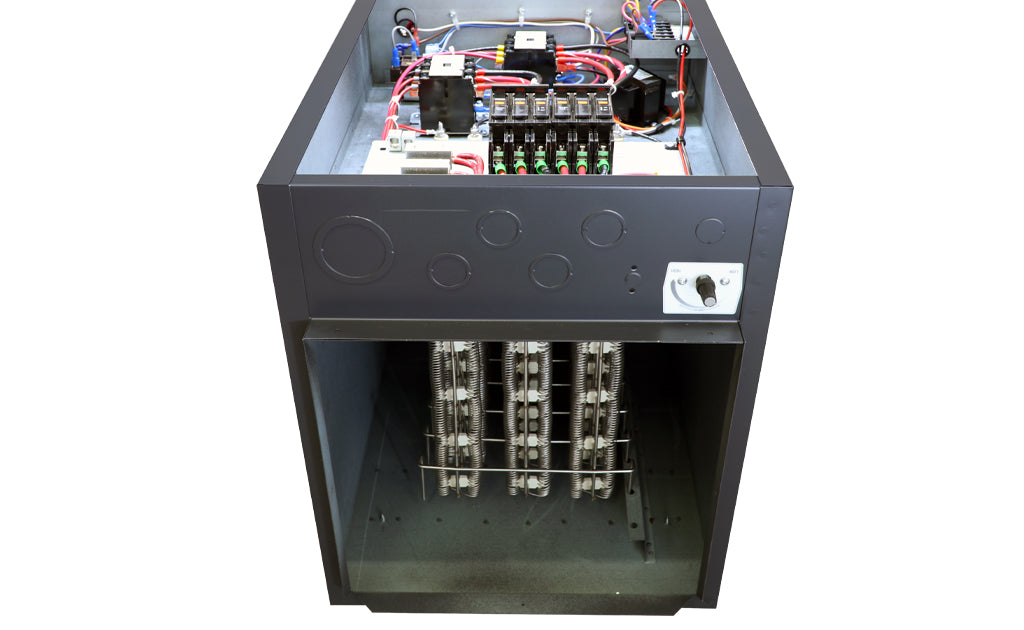

• Heavy Duty Open Coil Element: Yes
• Dual Inlet Industrial Blower: Yes
• Horizontal or Vertical Mount: Yes
• Direct Drive Air Over Type Motor: Yes
• Adjustable Louver Hood: (sold separately)

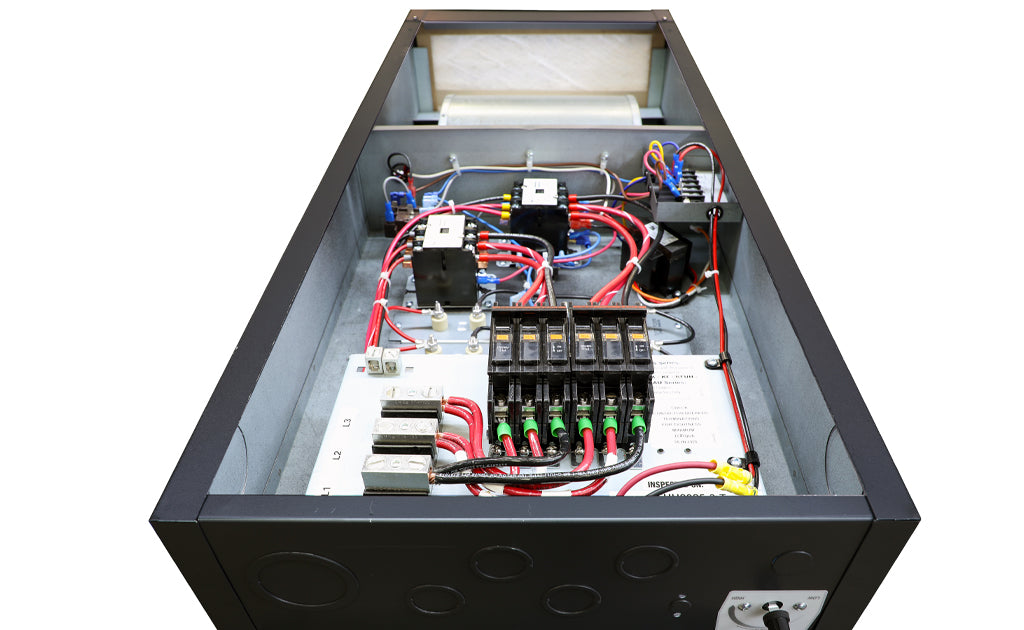

• Quiet Switching Relays: Yes

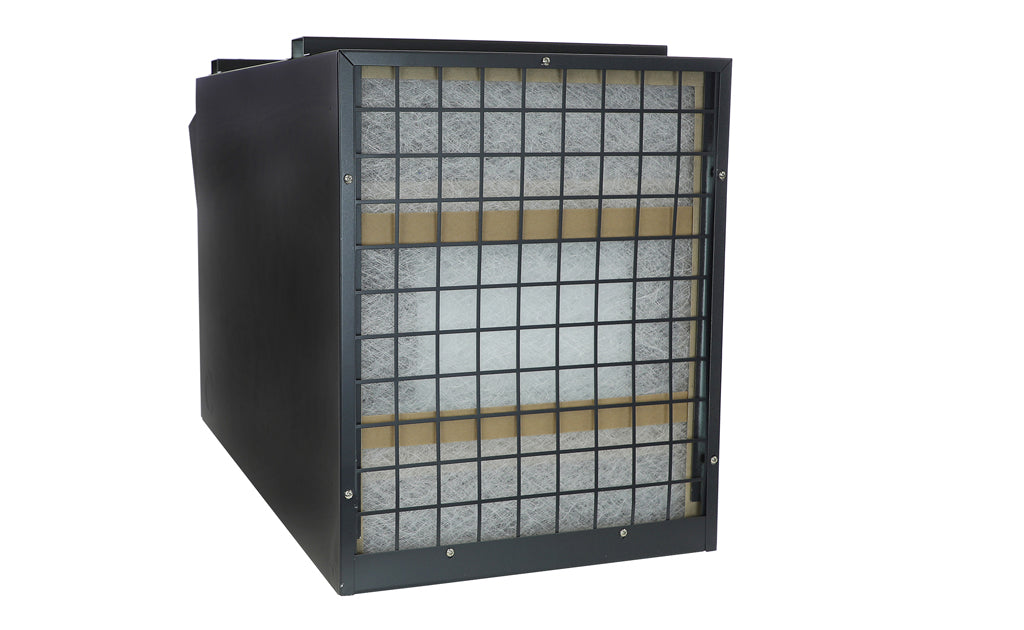

• Replaceable Intake Filter: Yes
• 24 Volt Control: Yes
• Ductable On Intake & Outlet: Yes
• Fan-Only Relay: Yes
• Speeds: 5
• Voltage: 480V/3Ph
• Motor: ECM Motor
• Type: Double Wide Twinned Electric Unit Heater
