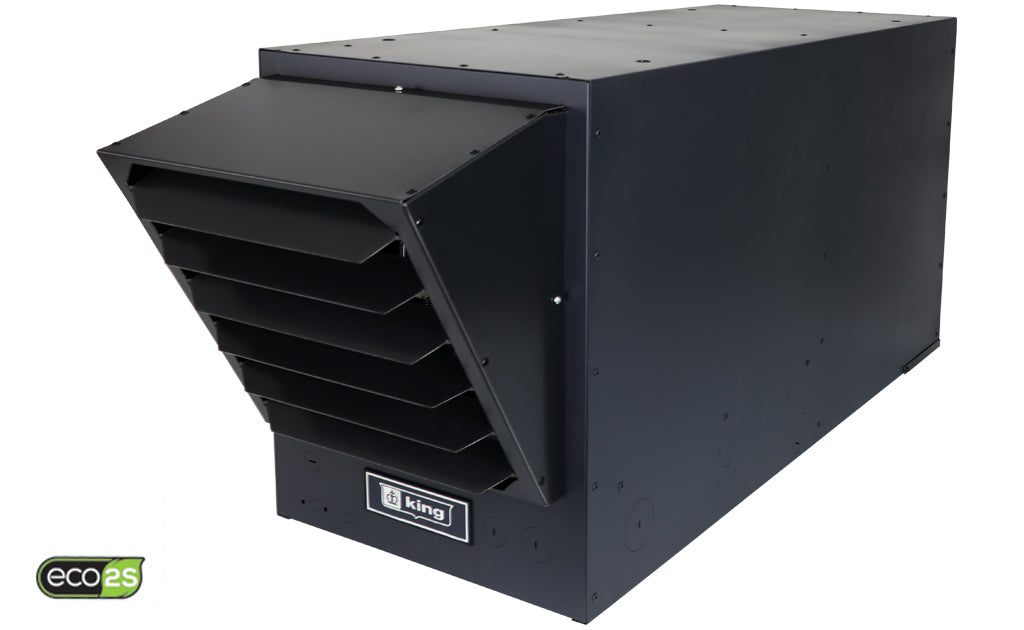

King Electric KFUH4830-3-2S3-ECM Kfuh 480V 30Kw 3-Ph 12Hp Ecm Motor Two Stage

Product Description

The King Electric KFUH4830-3-2S3-ECM is a KFUH 480V, 30Kw, 3-Ph, 12Hp ECM motor, two-stage unit. Well suited for high-ceilinged spaces such as warehouses and parking garages, it features welded mounting channels for angled installation and can be mounted vertically or horizontally. It has a 5-speed high capacity motor and blower.

• Features a low voltage 24 volt transformer for thermostat, providing safe and reliable control.
• Equipped with easily replaceable 16 x 20 x 1" intake filter for easy maintenance and clean air circulation.
• Includes King Electric's Patented Smart Limit Protection with manual reset for safe operation.

Product Highlights

This 480V, 3-phase electric 2-stage unit heater delivers 30 kW of heat with a 110-foot effective heat throw and a 44 - 60° temperature rise.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KFUH4830-3-2S3-ECM
• Country of Origin: USA

Technical Specifications

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• Heating BTUs: 102400
• kW: 30
• CFMs: 1592 - 2142
• Discharge Air Temperature Rise (°F): 44 - 60
• Air Throw (ft.): 110
• Blower: Built-In
• Remote: Connections for 24V Remote Thermostat
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• Max. Mounting Height (ft.): 12' (Horizontal Installation)
• To Side Wall (in.): 6"
• Width (in.): 16
• Depth (in.): 37.5
• Height (in.): 20
• Voltage: 480V
• Phase: 3
• Amps: 36.1
• Energy Efficient ECM Motor: Yes
• 2-Stage Energy-Saving Heating (-2S Models Only): When paired with a 2-stage 24V thermostat (purchased separately)

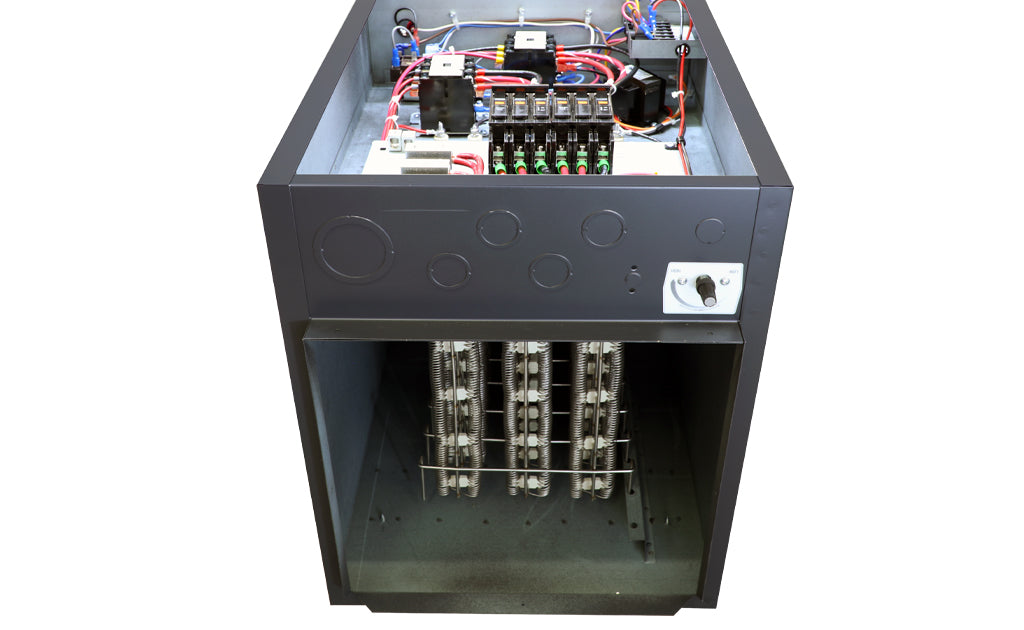

• Heavy Duty Open Coil Element: Yes
• Dual Inlet Industrial Blower: Yes
• Horizontal or Vertical Mount: Yes
• Direct Drive Air Over Type Motor: Yes

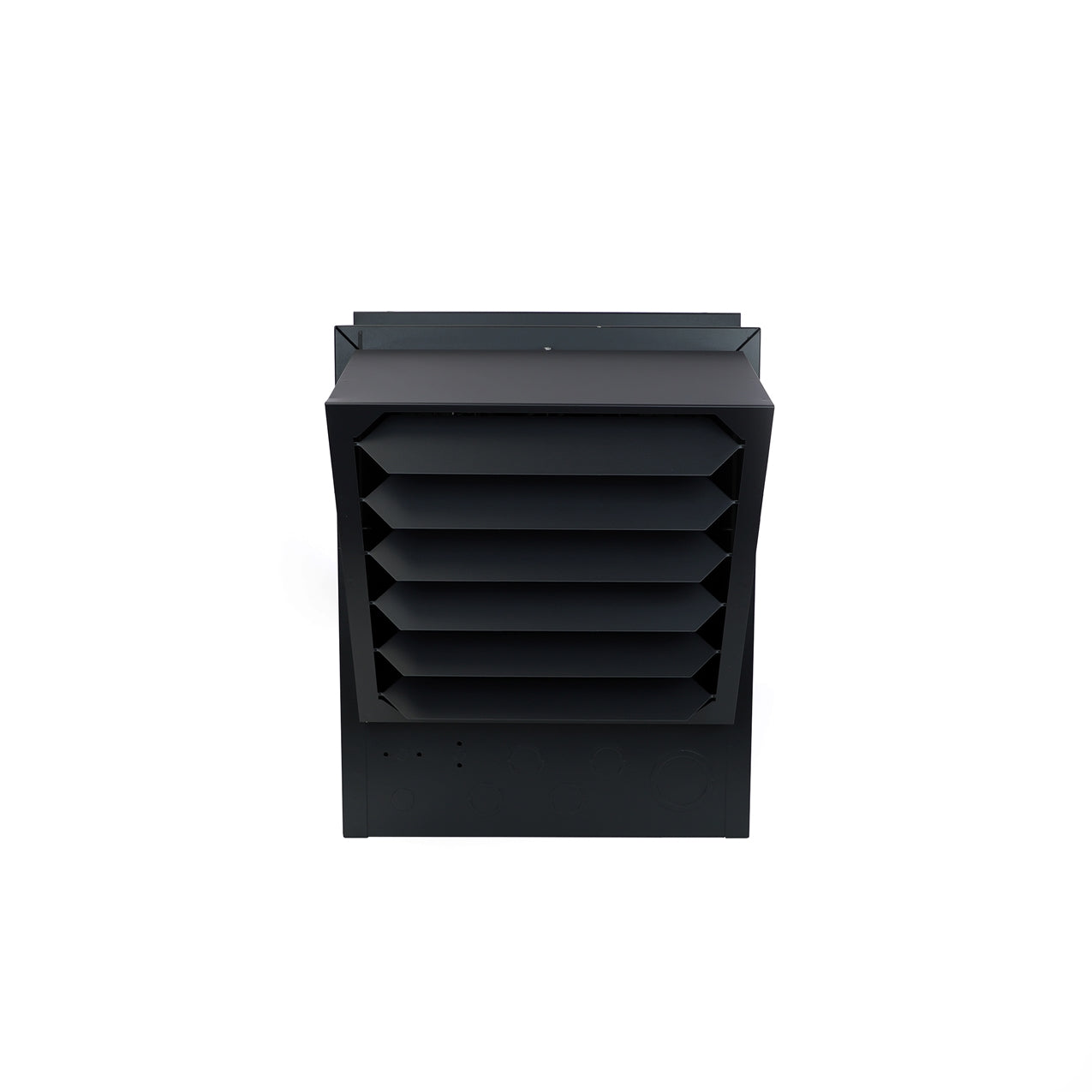

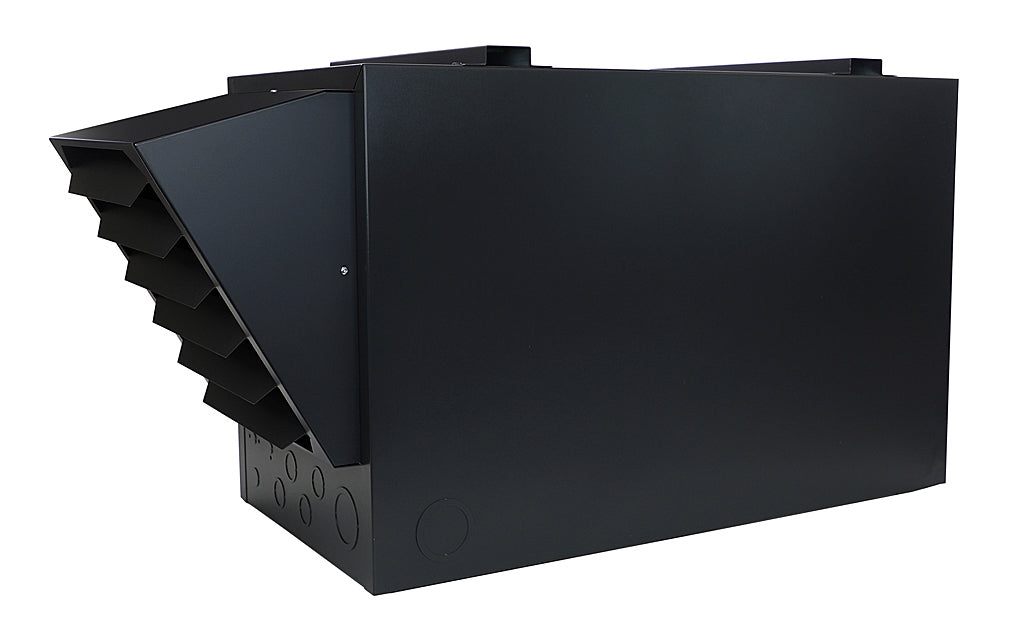

• Adjustable Louver Hood: Sold separately

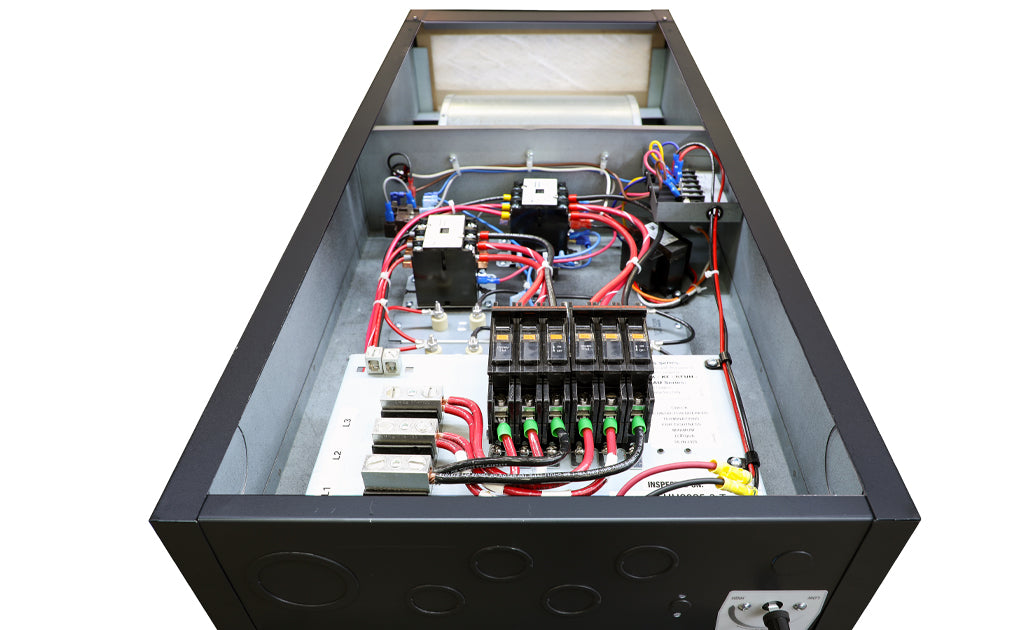

• Quiet Switching Relays: Yes
• Replaceable Intake Filter: Yes
• 24 Volt Control: Yes
• Ductable On Intake & Outlet: Yes
• Fan-Only Relay: Yes
• Speeds: 5
• Construction: Solid Riveted Construction For Consistent, Long-Term Durability
• Certification: cULus Certified for US & Canada
• Compliance: Seattle Energy Code Compliant
• Manufacturer: King Electric
• Manufacturer Part Number: KFUH4830-3-2S3-ECM
• Product Condition: New
• UPC/GTIN Code: 093319334188
• Certificate: cUL/UL Listed
• Material: Steel
• Maximum Amperage: 36 Amp
• Power: 102,390 BTU/H
• Wattage: 30000W
• Wattage Output: 30kW
• Item: High Air Velocity Electric Unit Heater
