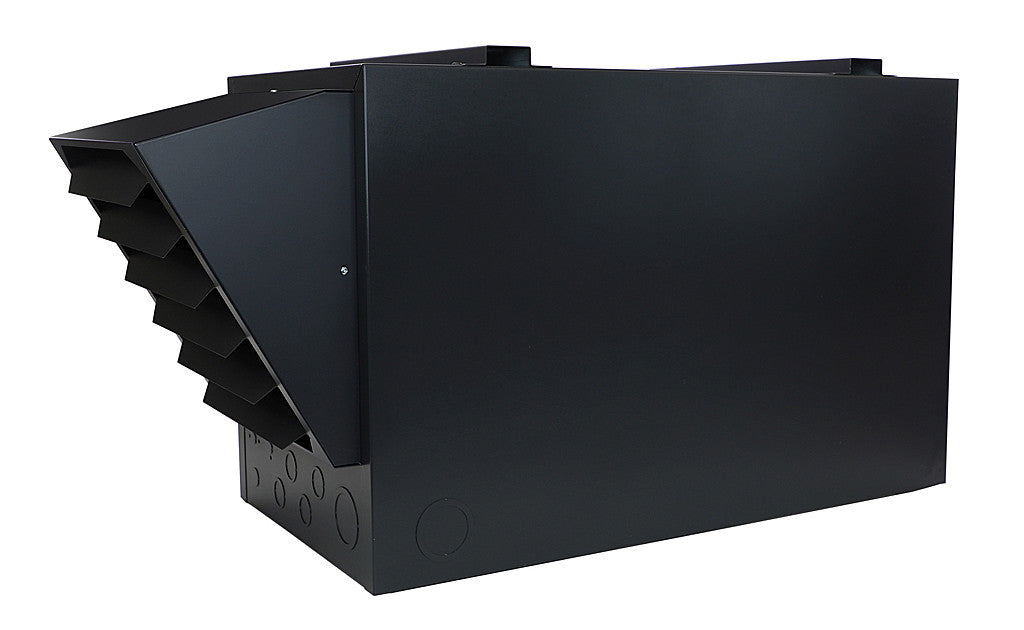

KING ELECTRIC KFUH4805-3-ECM 5kW KFUH ECO2S High Air Velocity Electric Unit Heater - 1 Stage Heating - 3-Phase - 480V

Product Description

The King KFUH4805-3-ECM is a high air velocity electric unit heater designed for commercial use at 480 volts. This three-phase unit is part of the KFUH ECO2S series, which offers powerful heating solutions suitable for large spaces like warehouses and garages.

• Five-speed capacity motor and blower for adjustable heating
• Versatile installation options: wall or ceiling mounted
• Integrated safety features including Smart Limit Protection

Product Highlights

This unit heater provides efficient heating with a 5 kW output, translating to approximately 17,100 BTUs. It has an effective heat throw of seventy-five feet and can raise the temperature by 10 to 22 degrees Fahrenheit. A wide range of air diffusers are available separately for optimized air distribution.

Product Information

Standard Information

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 17100
• kW: 5
• CFMs: 1258 - 1771
• Discharge Air Temperature Rise (°F): 36 - 50
• Air Throw (ft.): 90
• Net Weight (lbs.): 57
• Width (in.): 16
• Depth (in.): 30.5
• Height (in.): 20
