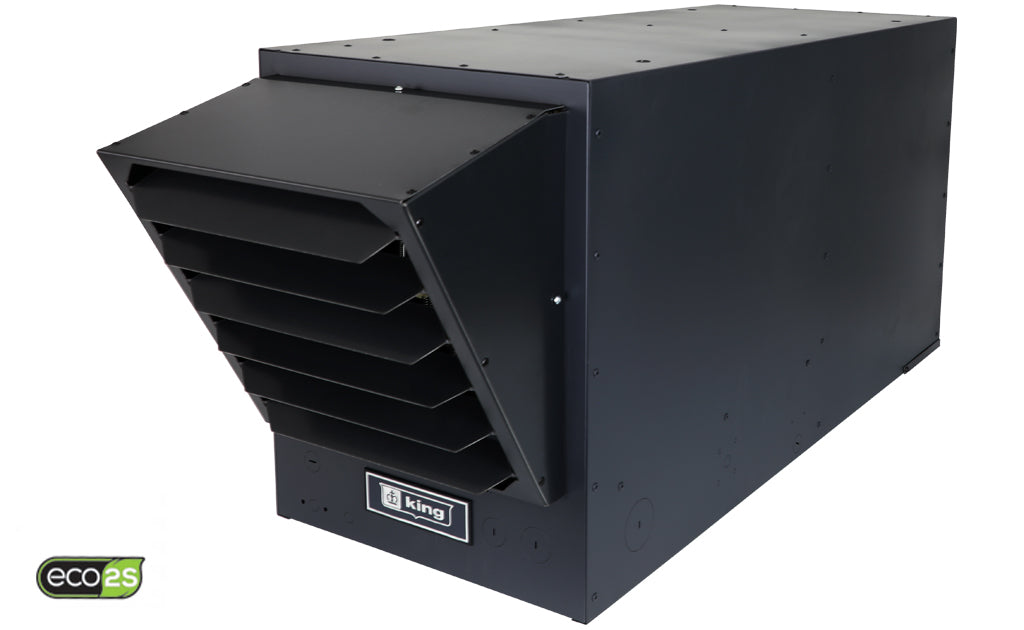

King Electric KFUH2412-1-2S1-ECM Kfuh Eco2S High Air Velocity Unit Heater

Product Description

The KING ELECTRIC KFUH2412-1-2S1-ECM is a KFUH ECO2S series high air velocity unit heater suited for high ceiling applications such as warehouses and parking garages. It features a 5-speed, high-capacity motor and blower that quietly delivers large volumes of air. The heater may be mounted at any angle and has safety screens at both the air intake and discharge aperture.

• Energy Efficient ECM Motor
• 2-Stage Energy-Saving Heating (-2S Models Only) when paired with a 2-stage 24V thermostat (purchased separately)

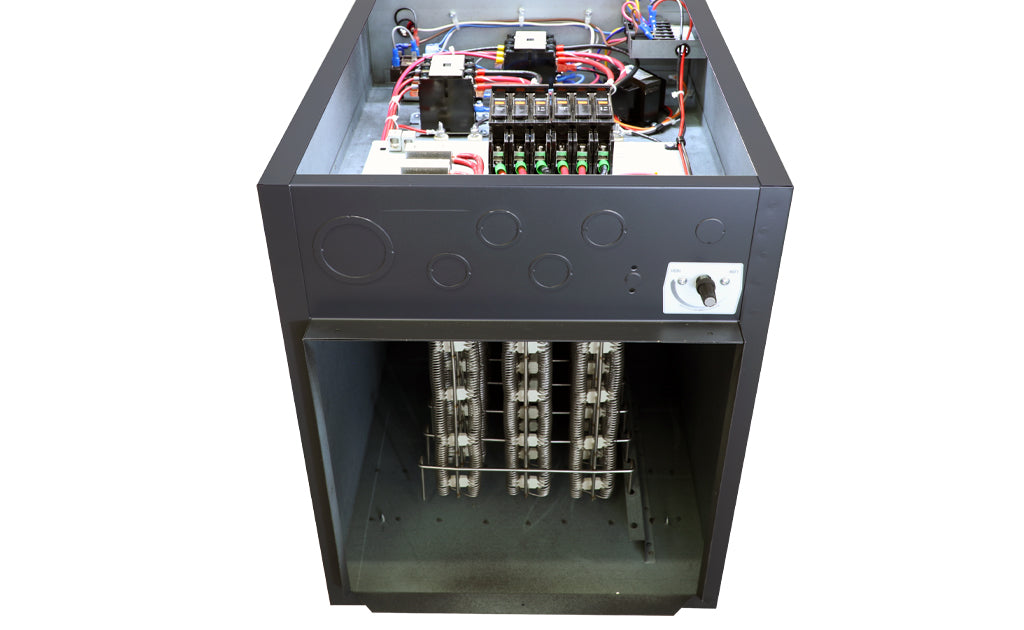

• Heavy Duty Open Coil Element

Product Highlights

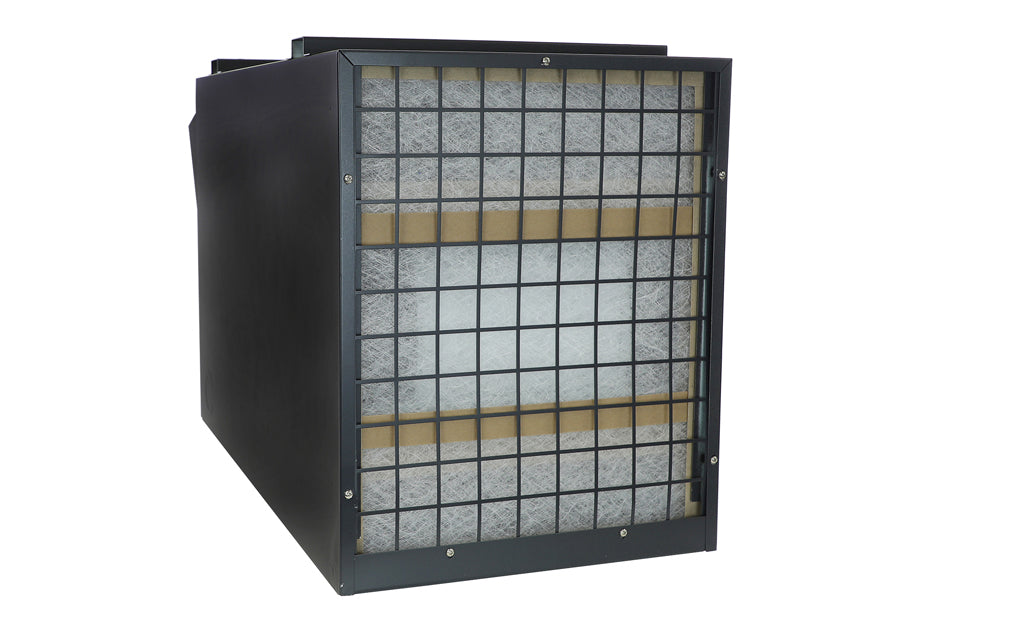

This unit heater features a dual inlet industrial blower, horizontal or vertical mount, and a direct drive air over type motor. It also has quiet switching relays and a replaceable intake filter.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KFUH2412-1-2S1-ECM
• Country of Origin: USA

Technical Specifications

• Energy Efficient ECM Motor: Yes
• 2-Stage Energy-Saving Heating (-2S Models Only): When paired with a 2-stage 24V thermostat (purchased separately)
• Heavy Duty Open Coil Element: Yes
• Dual Inlet Industrial Blower: Yes
• Horizontal or Vertical Mount: Yes
• Direct Drive Air Over Type Motor: Yes
• Adjustable Louver Hood: Sold separately
• Quiet Switching Relays: Yes
• Replaceable Intake Filter: Yes
• 24 Volt Control: Yes
• Ductable On Intake & Outlet: Yes
• Fan-Only Relay: Yes
• Speeds: 5
• Construction: Solid Riveted Construction For Consistent, Long-Term Durability
• Certification: cULus Certified for US & Canada
• Compliance: Seattle Energy Code Compliant
• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• Heating BTUs: 41000
• kW: 12
• CFMs: 708 - 1536
• Discharge Air Temperature Rise (°F): 25 - 54
• Air Throw (ft.): 75
• Blower: Built-In
• Remote: Connections for 24V Remote Thermostat
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• Max. Mounting Height (ft.): 12' (Horizontal Installation)
• To Side Wall (in.): 6"
• Width (in.): 16
• Depth (in.): 30.5
• Height (in.): 20
• Voltage: 240V
• Phase: 1
• Amps: 50
