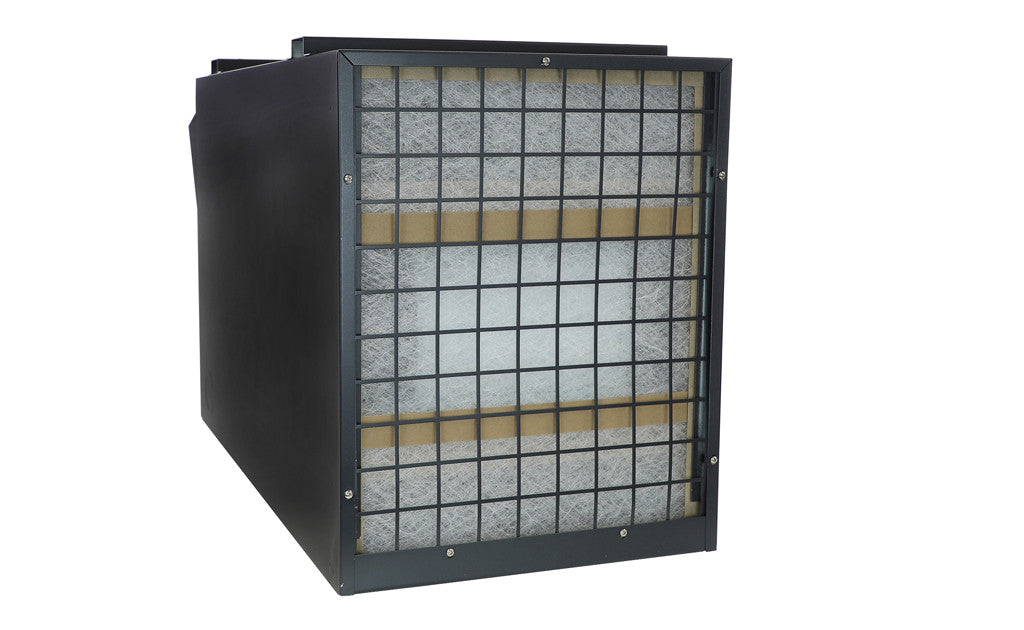

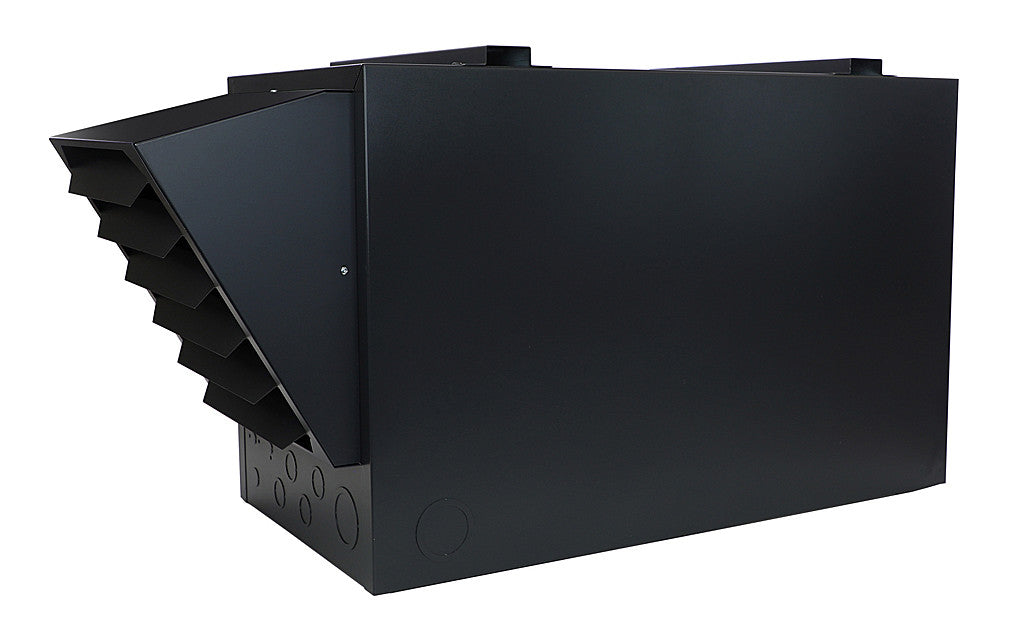

King Electric KFUH2030-3-2S3-ECM 30kW KFUH ECO2S High Air Velocity Electric Unit Heater - 2 Stage Heating - 3-Phase - 208V

Product Description

The King KFUH2030-3-2S3-ECM is a high air velocity electric unit heater designed for various heating applications. It operates on three phases and is compatible with 208 volts of electricity.

• 30 kW heating output for effective temperature control.
• Flexible installation options, including wall or ceiling mounting.
• Includes a 2-stage energy-saving feature when paired with a compatible thermostat.

Product Highlights

This unit is suitable for large spaces such as warehouses and garages. Its design allows for both vertical and horizontal mounting, maximizing installation flexibility.

Product Information

Standard Information

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric

Technical Specifications

• Heating BTUs: 102,400
• Power Rating (kW): 30
• CFMs: 1,592 - 2,141
• Temperature Rise (°F): 44 - 60
• Heat Throw (ft.): 110
• Motor Type: ECM with 1/2 horsepower
• Dimensions (L x W x H): 37.5 x 16 x 20 inches
• Net Weight: 85 lbs
