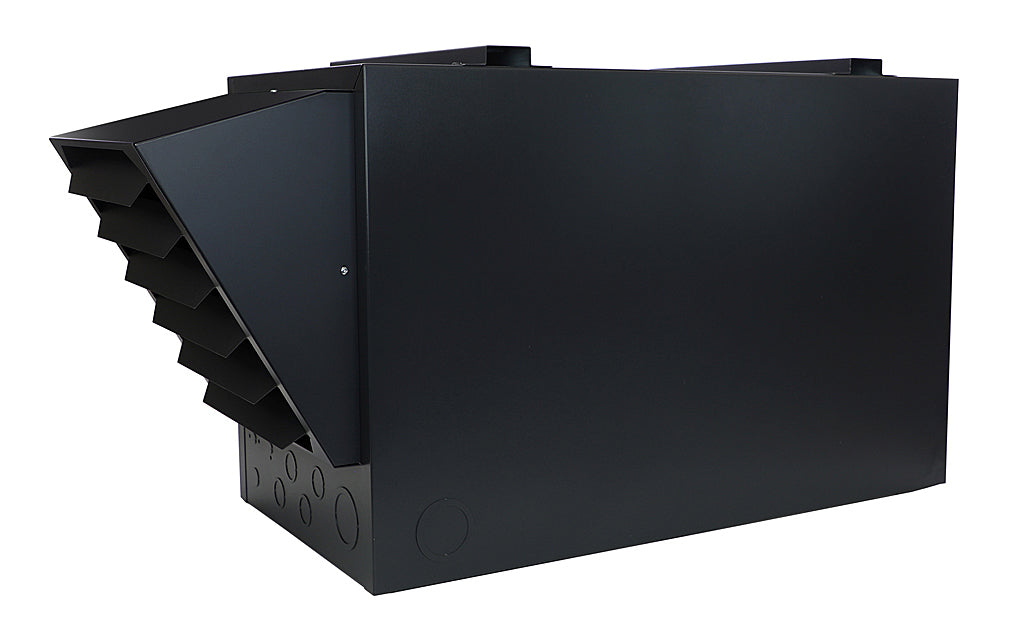

King Electric KFUH2025-3-2S3-ECM KFUH ECO2S High Air Velocity Electric Unit Heater 25kW

Product Description

The King Electric KFUH2025-3-2S3-ECM is a 3-phase unit in the KFUH ECO2S series of High Air Velocity Electric Unit Heaters. This 208V, 25kW electric 2-stage unit heater is suited for high-ceilinged spaces such as warehouses and parking garages. It features a 5-speed high capacity motor and blower and welded mounting channels for angled installation.

• Features a low voltage 24 volt transformer for thermostat

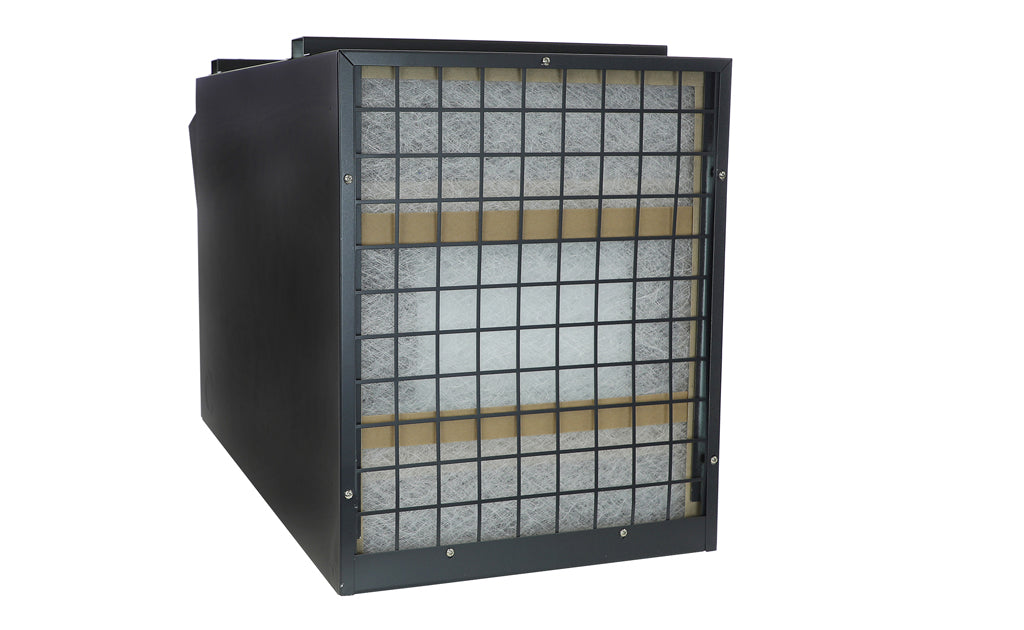

• Includes an easily replaceable 16 x 20 x 1" intake filter

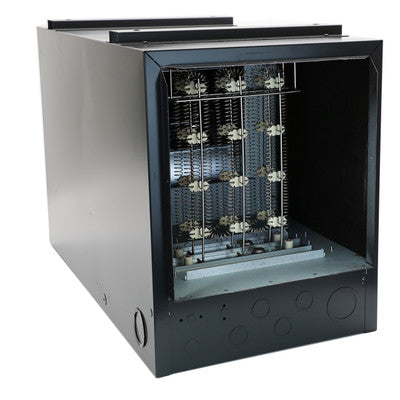

• Equipped with Ni-Chrome heating elements for long life and quick heating

Product Highlights

This unit heater has safety screens at the intake and discharge outlet and King Electric's Patented Smart Limit Protection.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KFUH2025-3-2S3-ECM
• Country of Origin: USA

Technical Specifications

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Installation Kit: Bracket Included
• Heating BTUs: 85300
• kW: 25
• CFMs: 1258 - 1771
• Discharge Air Temperature Rise (°F): 36 - 50
• Air Throw (ft.): 90
• Blower: Built-In
• Remote: Connections for 24V Remote Thermostat
• Fuse Block: No
• Oscillating: No
• Tip-Over Safety Switch: No
• Connectivity: Not WiFi Compatible
• Min. Mounting Height (ft.): 6'
• Max. Mounting Height (ft.): 12' (Horizontal Installation)
• To Side Wall (in.): 6"
• Width (in.): 16
• Depth (in.): 37.5
• Height (in.): 20
• Voltage: 208V
• Phase: 3
• Amps: 69.4
• Electrical Phase: 3 Ph
• Material: Steel
• Maximum Voltage: 208V
• Power: 85,325 BTU/H
• Wattage: 25000W
• Manufacturer: King Electric
• Manufacturer Part Number: KFUH2025-3-2S3-ECM
• Country of Origin: United States
• Item: High Air Velocity Electric Unit Heater
