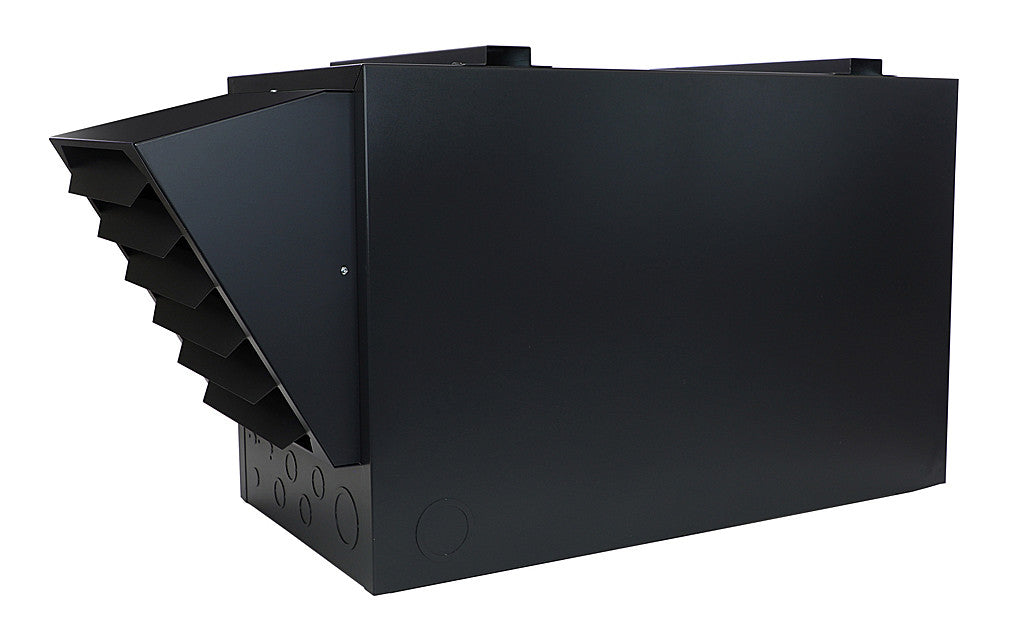

King Electric KFUH2020-3-2S3-ECM 20kW KFUH ECO2S High Air Velocity Electric Unit Heater - 2 Stage Heating - 3-Phase - 208V

Product Description

The King KFUH2020-3-2S3-ECM is a reliable 3-phase electric unit heater designed for high air velocity heating needs. This model offers a configuration that is well-suited for large indoor spaces such as warehouses and parking garages.

• High-capacity motor with 5-speed settings for adjustable airflow.
• Versatile mounting options for both vertical and horizontal installations.
• Energy-efficient, featuring a 2-stage heating system with 20 kW output.

Product Highlights

The King KFUH2020-3-2S3-ECM ensures effective heating with a distance of up to 90 feet and a temperature rise range of 36 to 50 degrees Fahrenheit.

Product Information

Standard Information

• Brand: King Electric
• MPN: KFUH2020-3-2S3-ECM

Technical Specifications

• Installation Type: Wall or Ceiling Mounted
• Fuel Type: Electric
• Certified Usage: Commercial (Indoor Only)
• Heating BTUs: 68300
• kW: 20
• CFMs: 1258 - 1771
• Discharge Air Temperature Rise (°F): 36 - 50
• Air Throw (ft.): 90
• Width (in.): 16
• Depth (in.): 37.5
• Height (in.): 20
• Net Weight (lbs.): 76
