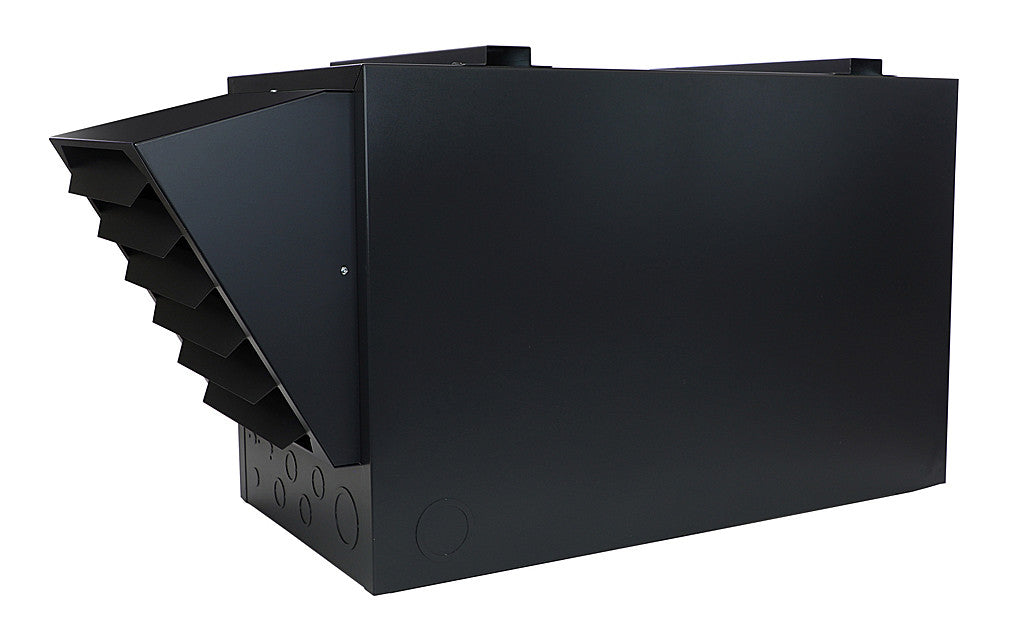

King Electric KFUH2010-3-2S3-ECM 10kW KFUH ECO2S High Air Velocity Electric Unit Heater - 2 Stage Heating - 3-Phase - 208V

Product Description

The King KFUH2010-3-2S3-ECM is a 10 kW electric unit heater from King Electric. This heater is designed for high air velocity and features a two-stage heating system. With a power supply of 208 volts and three-phase compatibility, it is suitable for various commercial applications.

• High capacity 5-speed motor and blower.
• Flexible mounting options for walls or ceilings.
• Requires a thermostat for operation.

Product Highlights

The versatile design of the KFUH2010-3-2S3-ECM makes it ideal for heating large spaces, like warehouses or parking garages. The unit has an effective heat throw of up to seventy-five feet and a temperature rise between eight to eighteen degrees Fahrenheit. It features both vertical and horizontal installation options and includes a low-voltage transformer for safe thermostat control.

Product Information

Standard Information

• Fuel Type: Electric
• Installation Kit: Bracket Included

Technical Specifications

• Heating BTUs: 34100
• Power (kW): 10
• CFMs: 708 - 1536
• Discharge Air Temperature Rise (°F): 8 - 18
• Air Throw (ft.): 75
• Width (in.): 16
• Depth (in.): 30.5
• Height (in.): 20
• Net Weight (lbs.): 74
