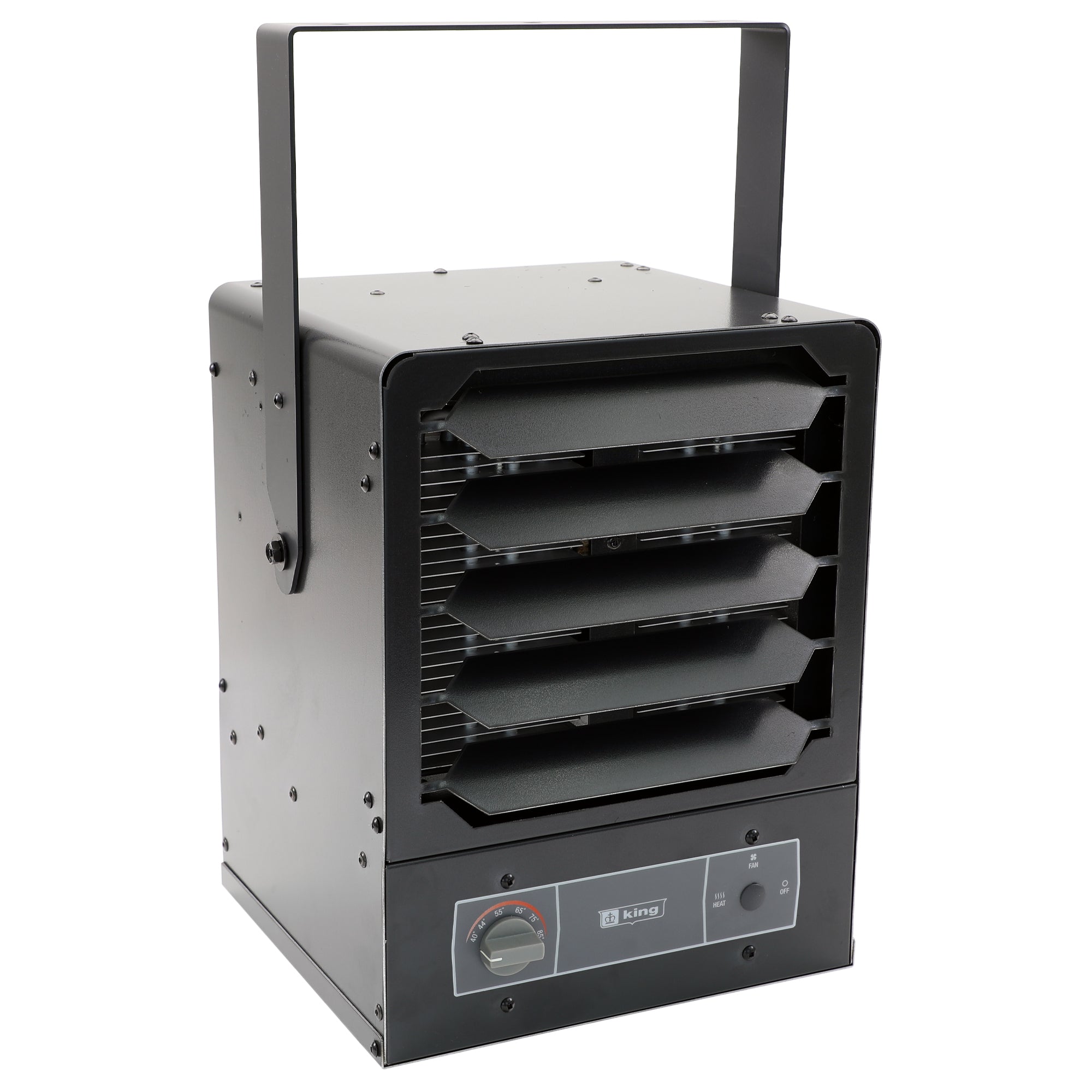

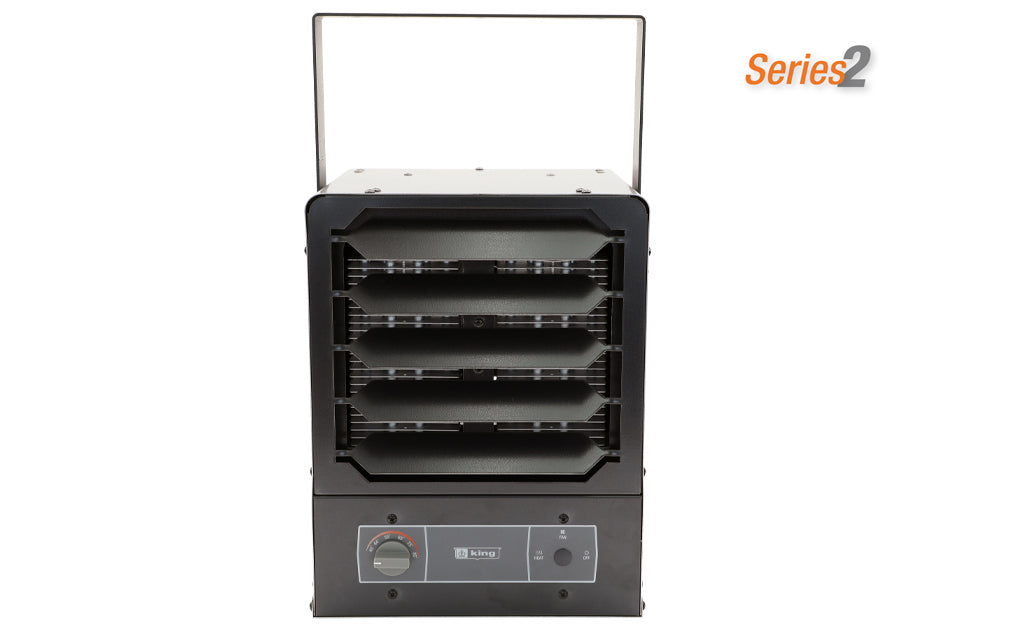

King Electric KBP2406-1-S2-MB-T KBP Series 2 Unit Heater 5700-4750-3800-2850-1900-950W 240/208V

Product Description

The KING ELECTRIC KBP2406-1-S2-MB-T is a multi-wattage unit heater designed for both residential and commercial applications. This KBP Series 2 model features a flow-through design, pulling air from the back and discharging it out the front at 385 CFM. It includes a built-in thermostat with a 40 to 90 F operating range and dual Pic-A-Watt steel fin elements, offering wattage options from 950W to 5700W at 240/208V. The unit is constructed from 20-gauge electrogalvanized steel with a rust-inhibiting baked enamel finish.

• Dual Pic-A-Watt Elements provide multiple wattage options for tailored heating requirements.
• Integrated fan delay continues operation to dissipate heat after the thermostat shuts off.
• Universal wall/ceiling bracket included for flexible mounting, allowing a 15-degree downward tilt.

Product Highlights

This unit heater features a robust 20-gauge steel construction, 385 CFM airflow, and patented Smart Limit Protection for enhanced safety.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KBP2406-1-S2-MB-T
• Country of Origin: USA

Technical Specifications

• Model: KBP2406-1-S2-MB-T
• Wattage: 5700-4750-3800-2850-1900-950W
• BTUH: 19454 - 3242
• Phase: 1
• Voltage: 240/208V
• Amperage: 23.8 - 4A
• Airflow: 385 CFM
• Temperature Rise Range: 47F - 8F
• Air Throw: 12 ft
• Maximum Mount Height: 8 ft
• Construction Material: 20-gauge electrogalvanized steel
• Finish: Rust-inhibiting baked enamel
• Assembly Method: Solid mechanical rivets
• Heating Element Type: Pic-A-Watt multi-tap steel sheath elements, copper brazed to steel plate fins
• Thermostat Type: Single pole factory installed hydraulic capillary tube thermostat
• Thermostat Operating Range: 40 to 90 F
• Fan Delay: Fan continues to operate after thermostat shuts off
• Airflow Adjustment: Adjustable outlet louver
• Safety Screen: Heavy gauge steel rear intake screen
• Motor Type: Permanently lubricated, long life, unit bearing 4-Pole motor
• Motor RPM: 1500
• Motor Protection: Thermally protected
• Overload Protection: Patented Smart Limit Protection (manual reset)
• Mounting Bracket: Universal wall/ceiling bracket included, allows 15-degree downward tilt
• Certifications: cULus (E41422), Seattle Energy Code Compliant
• UPC: 093319704417
• Manufacturer: King Electric
• Remote Control Included: Yes
• Built-in Thermostat: Yes
• Product Type: Horizontal or Vertical Discharge Unit Heaters
• Plug Type: Hardwired
• Heater Type: Unit Heaters
• Heat Output: 19454 Btu/hour
• Heat Type: Forced Air
• Heating Capability: 570 sq ft
• Direct Venting Required: No
• Blower Included: Yes
• Power Cord Length: 0 ft
• Oxygen Depletion Sensor: No
• Fuel Consumption: 0 GPH
• Control Type: Sp Stat
• Heating Technology: Fan-Forced
