King Electric KB4807-3MP-T-B2 KB Unit Heater 480V 7.5kW 1-3 Ph W/Sp Stat & Bracket

Product Description

The KING ELECTRIC KB4807-3MP-T-B2 KB unit heater is designed for use as primary or supplemental heat sources in large or exposed areas. It features spiral finned steel elements and high CFM to ensure even air distribution. The unit includes a built-in thermostat and a universal wall/ceiling bracket for simple installation. It operates at 480V, 7.5kW, and 1-3 phase.

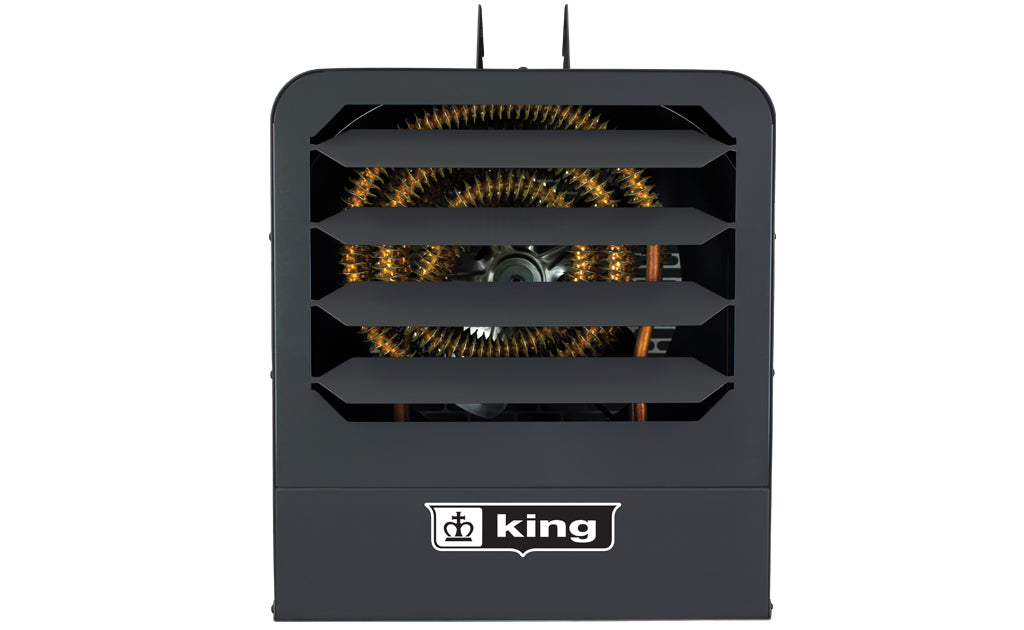

• Adjustable Louvers to Direct Air
• Built-In Thermostat
• High Mass Steel Fin Heat Exchanger

Product Highlights

This KB series unit heater combines quality components with a dynamically balanced fan blade for years of service. Proudly made in the USA.

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KB4807-3MP-T-B2
• Country of Origin: USA

Technical Specifications

• Volts: 480
• Watts: 7500
• Amps: 15.6 & 9
• CFM: 690
• Phase: 1-3
• BTUH: 25,598
• Temp Rise: 34.0
• Air Throw: 24ft.
• Kilowatts (KW): 7.5
• BTU Output: 25600
• Product Type: Heater
• Voltage: 480V
• Manufacturer: King Electric
• Manufacturer Part Number: KB4807-3MP-T-B2
• Product Condition: New
• Air Flow (CFM): 600
• Certificate: cUL/UL Listed
• Control Style: Single Pole
• Electrical Phase: 1-3 Ph
• Material: Steel
• Maximum Amperage: 24 Amp
• Maximum Voltage: 480V
• Wattage: 7500W
• Input Wattage: 7.5Kw
• Rated Voltage: 480V
• Adjustable Louvers: To Direct Air
• Thermostat: Built-In
• Heat Exchanger: High Mass Steel Fin
• Protection: Patented Smart Limit Protection®
• Motor: Permanent Lubricated Unit Bearing Motor

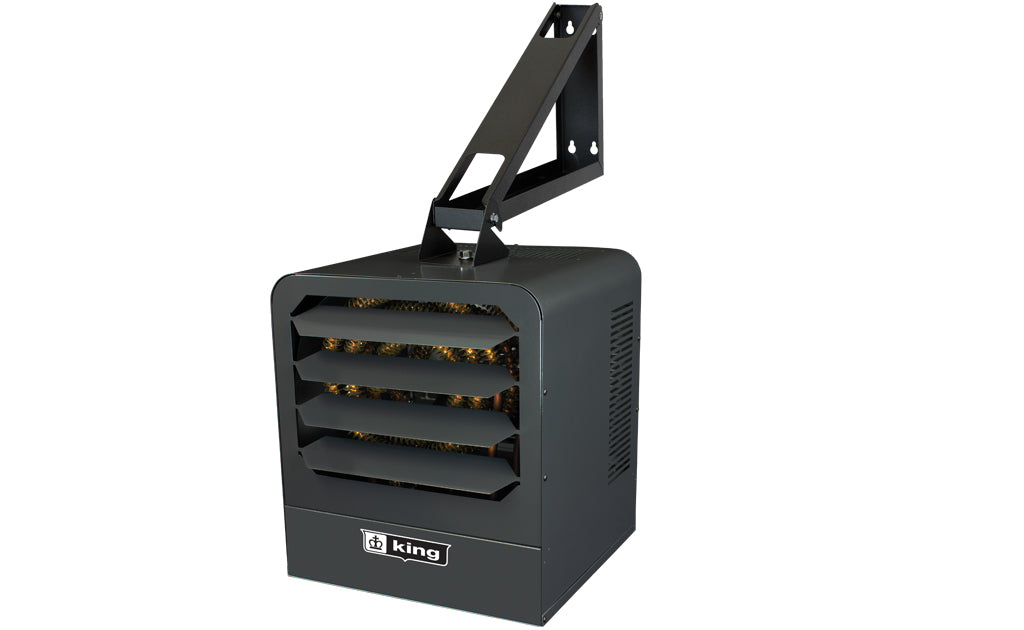

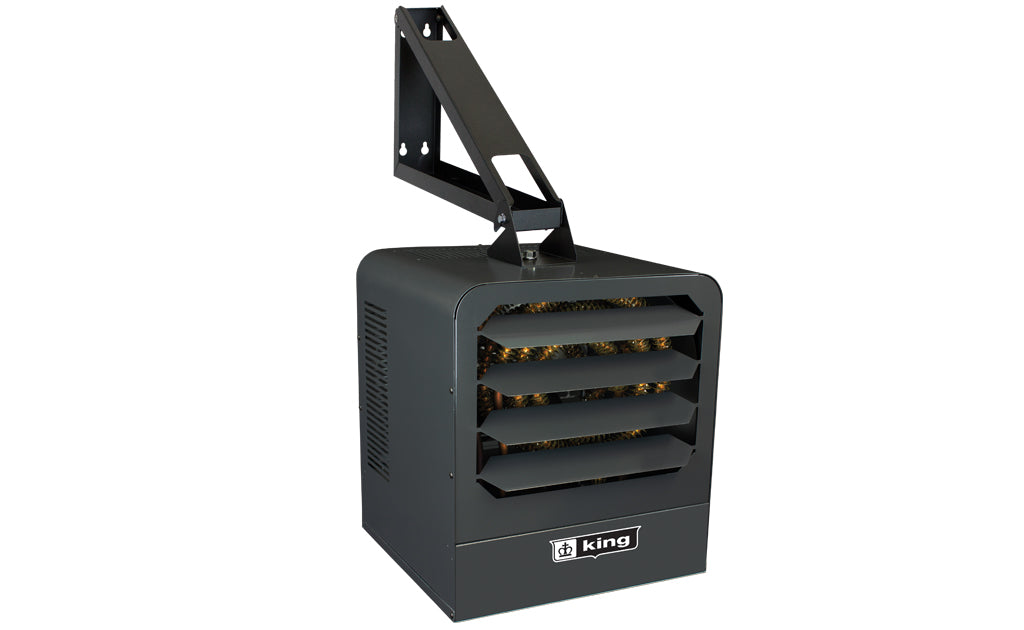

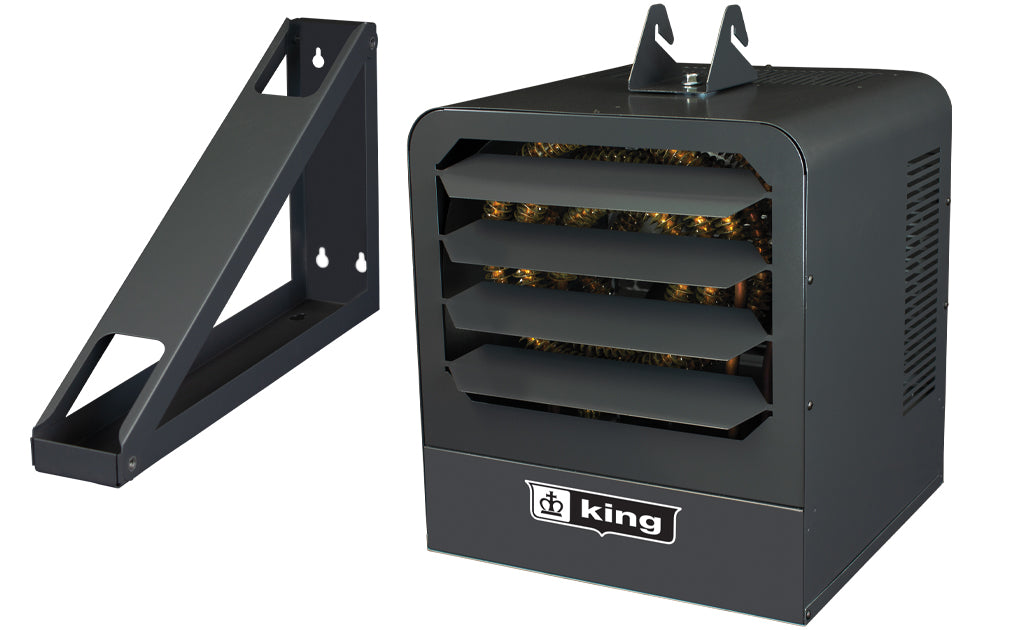

• Bracket: Universal Wall/Ceiling Bracket Included
• Fan Delay: Built-In Fan Delay to Dissipate Heat (Models 12.5-kW & Above Only)
