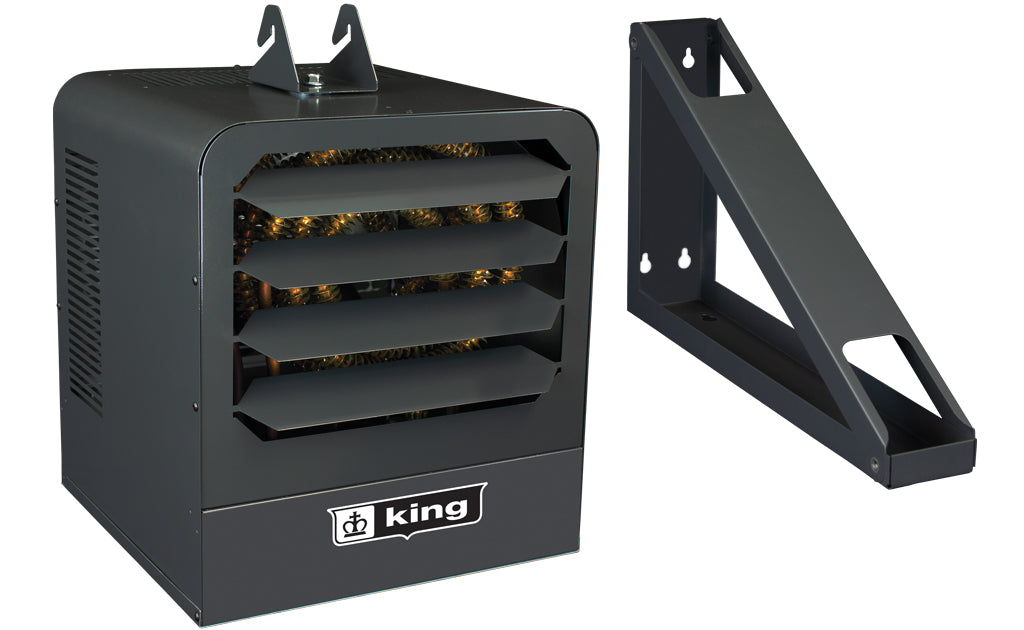

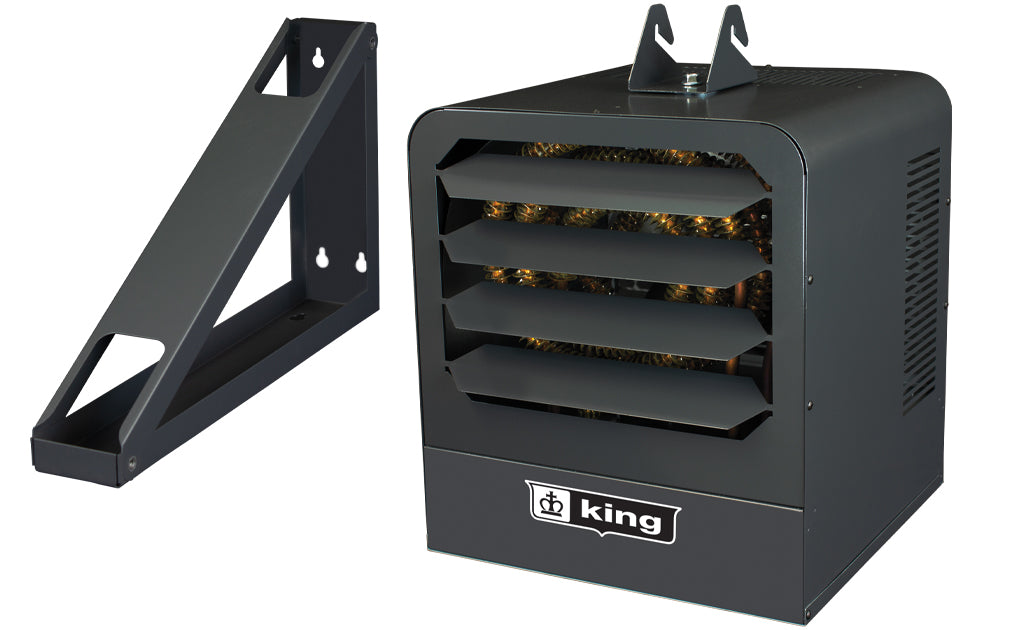

King Electric KB2704-1-T-B1 Unit Heater 4 kW

Product Description

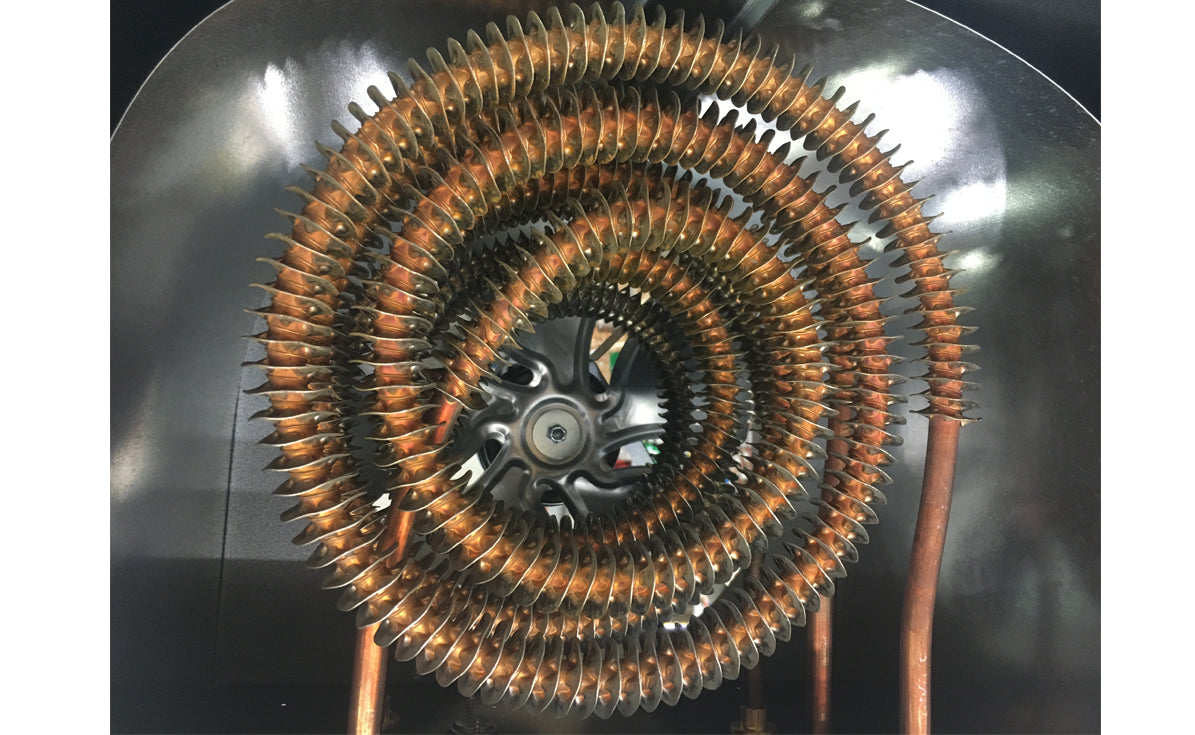

The King Electric KB2704-1-T-B1 unit heater serves as a primary or supplemental heat source in large or exposed areas. It utilizes spiral finned steel elements for efficient air distribution. The heater comes with a dynamically balanced fan blade and a built-in thermostat for precise temperature control.

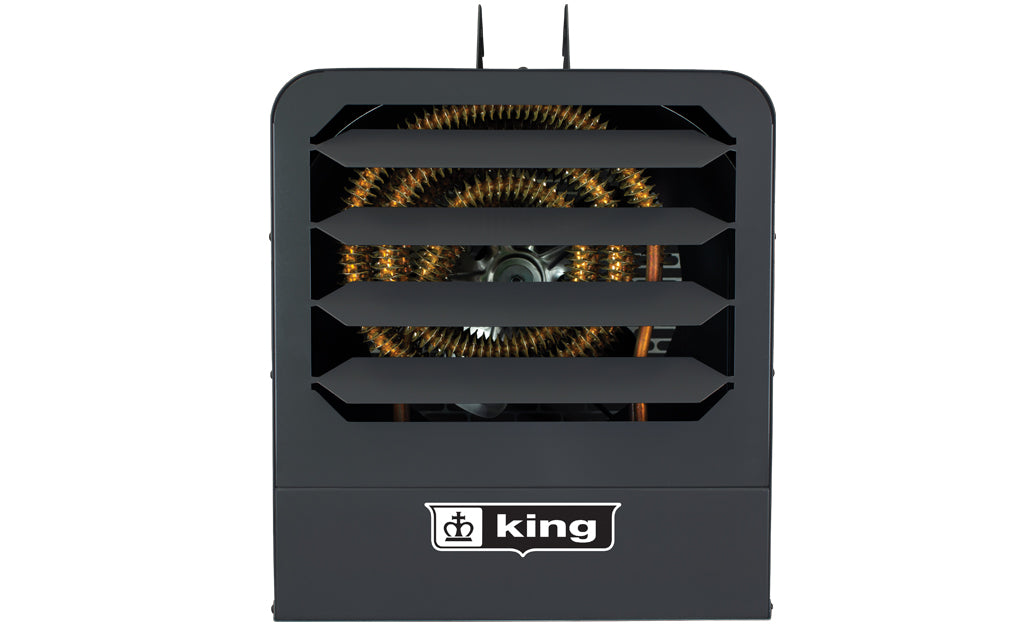

• Features adjustable louvers for directing airflow.

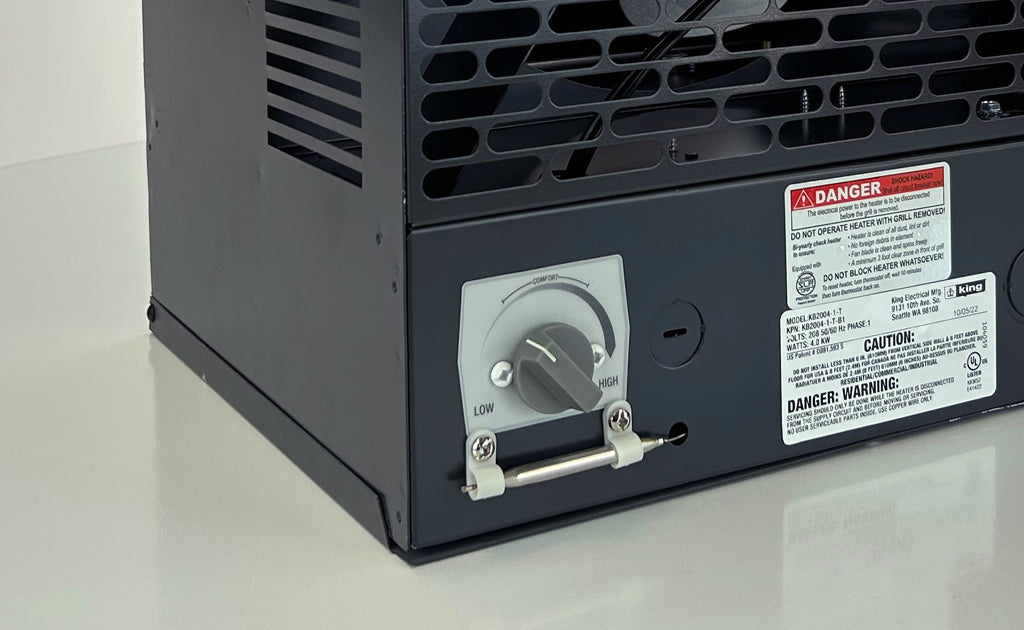

• Includes a built-in thermostat for easy temperature management.
• Equipped with a permanently lubricated unit bearing motor.

Product Highlights

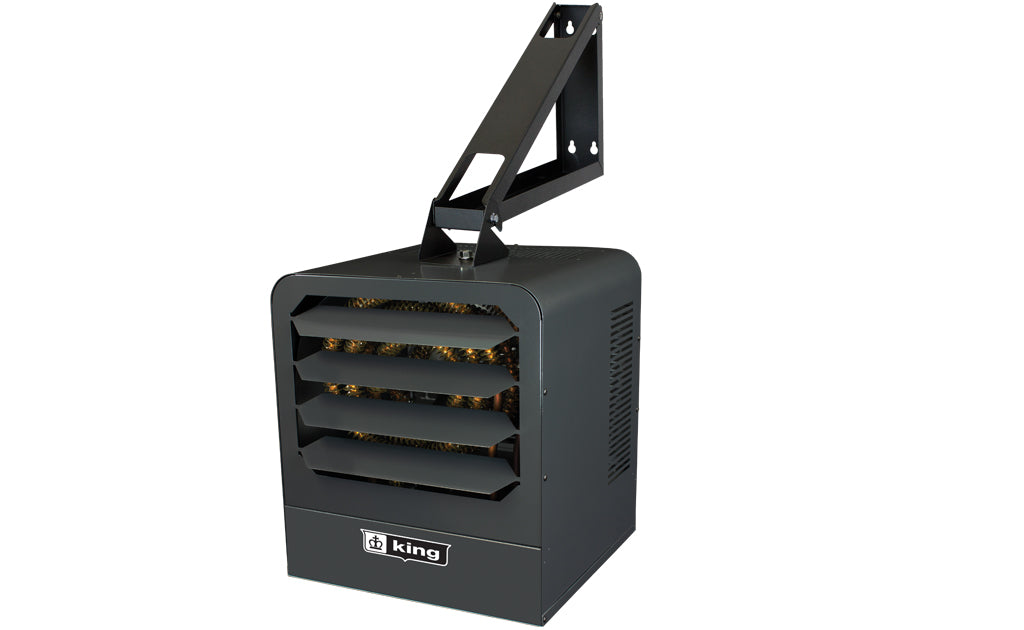

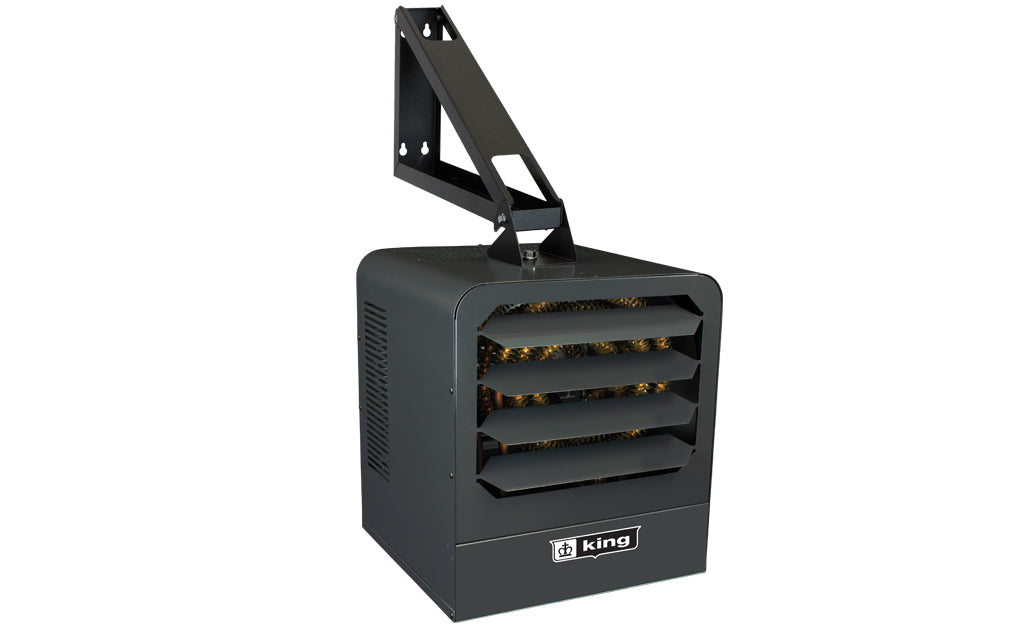

This unit heater is effective for heating larger spaces and can be mounted on walls or ceilings according to installation needs.

Product Information

Standard Information

• Brand: King Electric
• Series: KB

Technical Specifications

• Power: 4 kW
• BTU: 13652
• Input Voltage: 277V
• Input Phase: 1 Ph
• Input Current: 14.4 Amp
• Air Flow: 400 CFM
• Motor Power: 9W
• Temperature Rise: 24
• Air Throw: 15 ft.
• Maximum Mounting Height: 8 ft.
• Dimensions: 16.50 inches X 15 inches X 11 inches
• Material: Steel
• Control Style: Single Pole
• Certifications: cUL/UL Listed
• Weight: 30.5 lbs
• Warranty: 5 Yr
