King Electric KB2405-1-T-B1 KB Unit Heater 5 kW (1-Ph)

Product Description

King Electric KB2405-1-T-B1 is a 240V, 5 kW single-phase unit heater with a single-pole thermostat and a universal wall/ceiling mounting bracket. The KB series uses spiral-finned steel heating elements and a high-CFM fan (520 CFM) to distribute air evenly, yielding approximately 17,065 BTU/h. The unit is intended for primary or supplemental heating in warehouses, garages, stores, and other commercial or light industrial spaces and includes adjustable louvers and smart limit protection.

• 240V input, 5 kW (5000 W) power, single-phase operation with 20A circuit requirement
• High-CFM fan (520 CFM) with spiral-finned steel elements; approximate output 17,065 BTU/h
• Includes built-in single-pole thermostat and universal wall/ceiling mounting bracket; adjustable louvers and patented smart limit protection

Product Highlights

240V 5 kW single-phase unit heater with single-pole thermostat and mounting bracket; 520 CFM airflow and 17,065 BTU/h output

Product Information

Standard Information

• Brand: KING ELECTRIC
• Manufacturer Part Number: KB2405-1-T-B1
• Country of Origin: United States

Technical Specifications

• Brand: King Electric
• Manufacturer Part Number: KB2405-1-T-B1
• Series: KB
• Product Type: Unit Heater
• Input Voltage: 240V
• Power: 5 kW (5000 W)
• Phase: Single-phase
• Current (Amps): 20A
• Air Flow (CFM): 520 CFM
• BTU Output: 17,065 BTU/h
• Heating Element: Spiral-finned steel elements

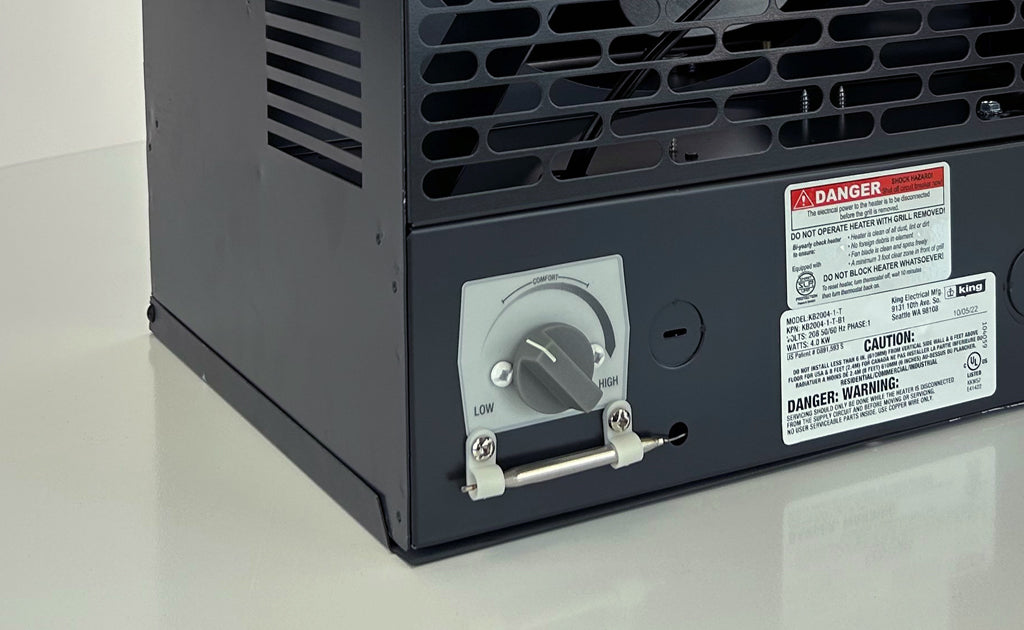

• Thermostat: Built-in single-pole thermostat (single-pole)

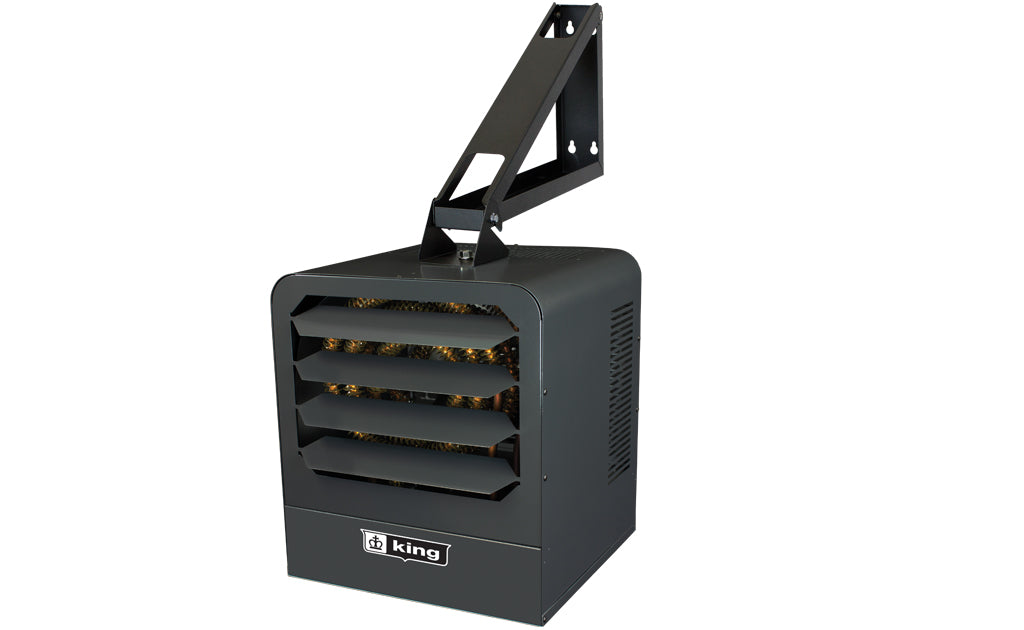

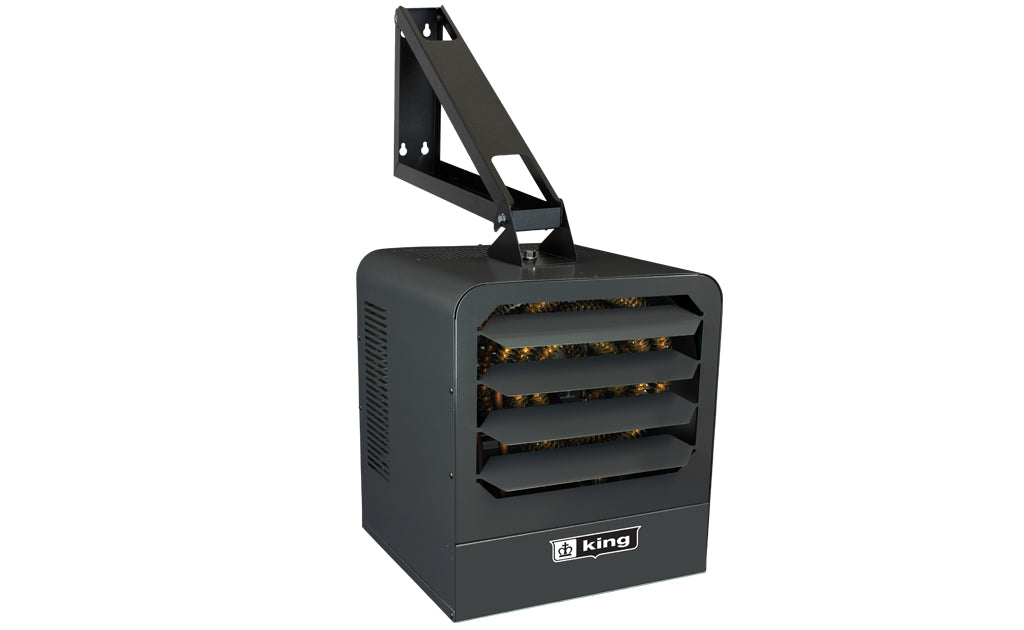

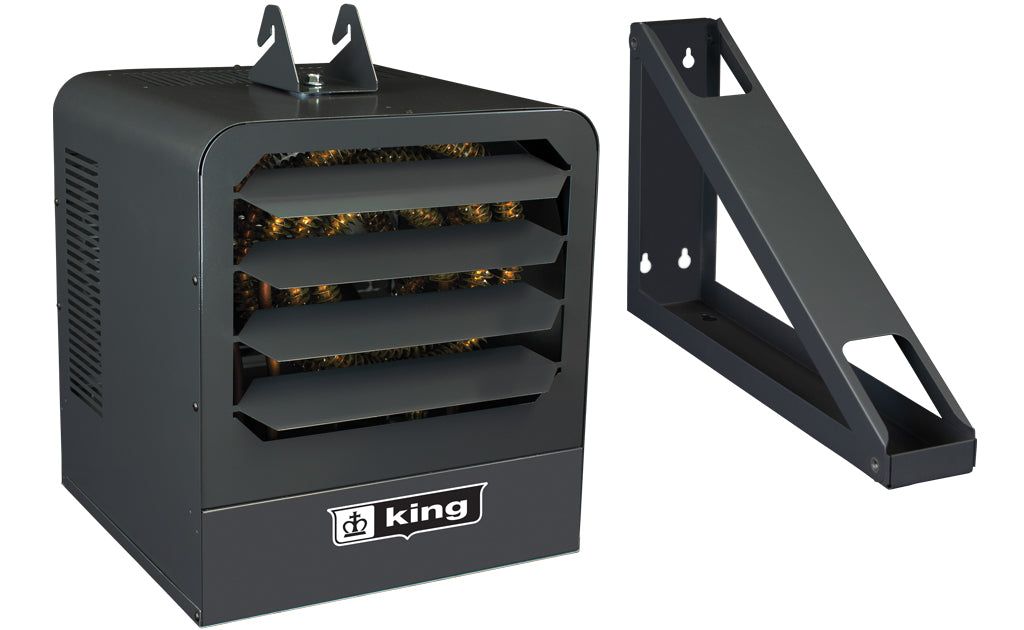

• Mounting Type: Universal wall/ceiling bracket included

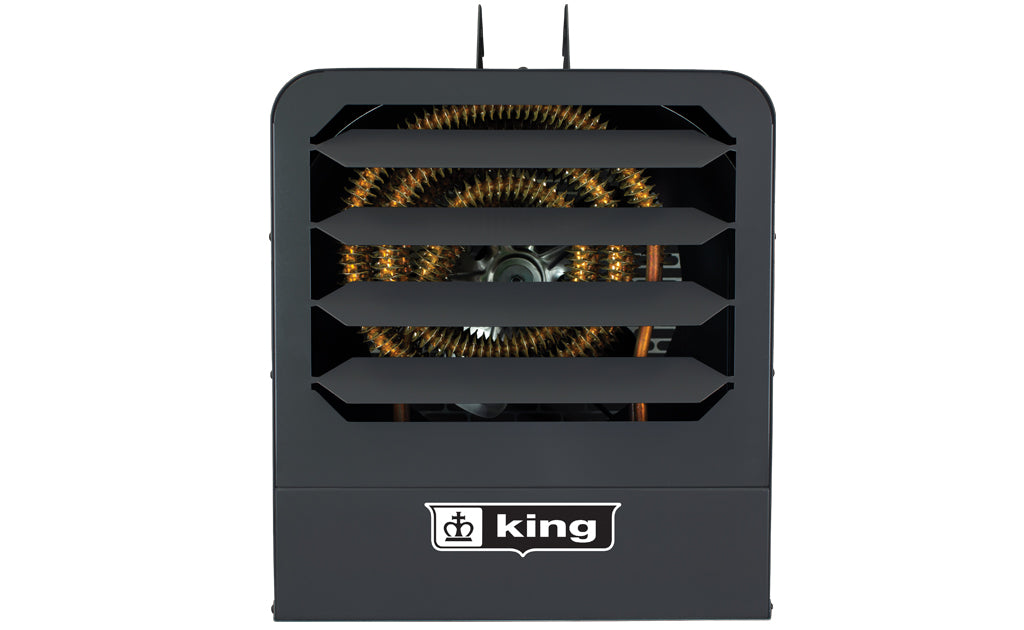

• Adjustable Louvers: Yes
• Air Throw: 15 ft.
• Temperature Rise: 30 F
• Material: Steel
• Dimensions: 16.50 in x 15 in x 11 in
• Weight: 30.5 lb
• Certifications: cUL/UL listed
• Country of Origin: United States
